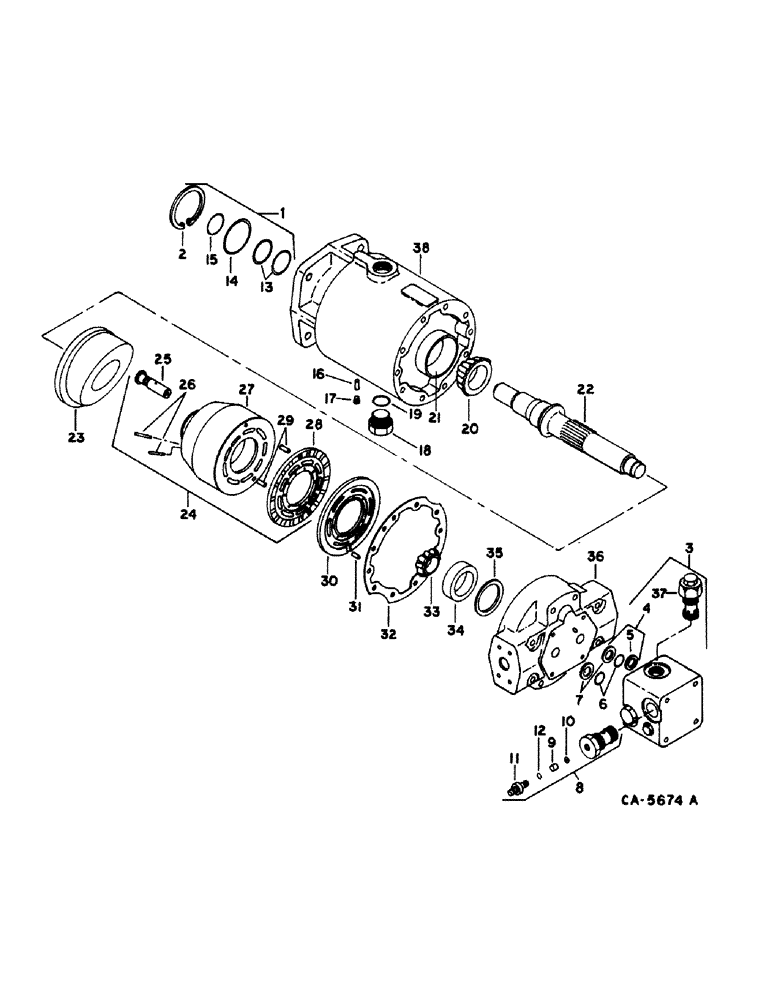

Запчасти Case IH 815 (10-24) - HYDRAULICS, HYDROSTATIC MOTOR, EATON (07) - HYDRAULICS

R133700C93

MOTOR

ASSY, hydrostatic, (renewed)

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2 x 1-3/4 type 5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

283856C1

WASHER

17/32 x 1 x .188

1шт.

166506C1

GASKET,0.81mm Thk

hyd motor

1шт.

1

142518C91

KIT

SEAL ASSY KIT, shaft, includes ref. nos. 2, 13, 14 & 15

1шт.

2

606937C1

SNAP RING,2.835", Int, #281

Ring, Snap, 2.835", Int, #281

1шт.

3

133752C91

VALVE PRESSURE RELIE

BLOCK ASSY, relief valve kit, includes ref. no. 4

1шт.

186285

BOLT,Hex, 3/8" - 16 x 4", Gr 5

1шт.

4

140747C91

SEAL KIT

valve block seal, included ref. no. 5, 6, & 7

1шт.

5

133753C1

O-RING,7/16" ID x 3/4" OD x 1/16"

3/4 x 7/8 x 1/16 sq

1шт.

6

384943R1

O-RING,0.739" ID x 0.07" Width

-018, 90 Duro, .739" ID x .070" Thk

2шт.

7

631458C1

RING

back-up

2шт.

8

402626R94

VALVE

ASSY, relief, includes ref. no. 9, 10, 11 & 12

2шт.

9

402629R1

BUSHING

ball guide

2шт.

10

17008R1

BALL,1/4" Dia

Chrome-Steel 1/4" Dia

2шт.

11

402630R2

CONNECTOR, ELEC

CONNECTOR, 37 deg flared tube special

2шт.

12

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

2шт.

13

22278R1

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

1-11/6 x 1-7/8 x 3/32 shaft seal

2шт.

14

383017R1

O-RING,0.103" Thk x 2.55" ID, -145, Cl 5, 75 Duro

2-9/16 x 2-3/4 x 3/32 shaft seal

1шт.

15

24472R1

O-RING,0.07" Thk x 1.334" ID, -28, Cl 6, 90 Duro

1-3/8 x 1-1/2 x 1/16 shaft seal

1шт.

16

20020R1

DOWEL,5/16" x 1"

PIN, 5/16 x 1 dowel

1шт.

17

444688

PLUG

1/8-27 sol-hd pipe

1шт.

18

9410361

PLUG

1-1/16-12 STR THD o-ring boss

1шт.

19

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube

1шт.

20

636826R91

BEARING ASSY,44.45 mm ID x 51 mm OD x 25.4 mm

BEARING ASSY, output shaft cone

1шт.

21

130503H

BEARING CUP

BEARING, output shaft cup

1шт.

22

140775C1

SHAFT

output

1шт.

23

140776C1

LARGE PIN

HOUSING, fixed swash plate

1шт.

24

140777C91

KIT

rotating group, includes ref. no. 25 and 29

1шт.

25

140778C1

PISTON

ASSY, cyl block

9шт.

26

140779C1

PIN

pre-load dowel

6шт.

27

BARREL, (not serviced separately) order ref. no. 24

1шт.

28

140780C1

BEARING WASHER

bearing

1шт.

29

140754C1

PIN

bearing plate dowel

2шт.

30

140781C1

PLATE, motor valve

1шт.

31

140754C1

PIN

valve plate dowel

1шт.

32

140782C1

GASKET

end cover

1шт.

33

401221C91

BEARING ASSY, output shaft cone

1шт.

34

401220C1

BEARING, output shaft cup

1шт.

35

140783C91

PACKAGE

SHIM PACKAGE

1шт.

36

MOTOR END COVER, (not serviced separately) separately order R128120C93

1шт.

179866

BOLT,Hex, 7/16" - 14 x 2", Gr 5

1шт.

179869

BOLT,Hex, 7/16" - 14 x 2 3/4", Gr 5

1шт.

37

140761C1

VALVE PRESSURE RELIE

VALVE Assy, low pressure relief

1шт.

38

HOUSING, hyd motor, (not serviced separately) order motor assy R133700C93

1шт.

393885R91

GASKET KIT

PACKAGE. relief valve seal, consists of

1шт.

393887R1

BACK-UP RING

RING, back-up

2шт.

20947R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

1шт.

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

138224C91

REPAIR KIT

KIT, shuttle valve

1шт.

138231C1

RING, back-up shuttle valve

1шт.

352219R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

1/4 x 3/8 x 1/16 shuttle valve

1шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube shuttle valve

1шт.
