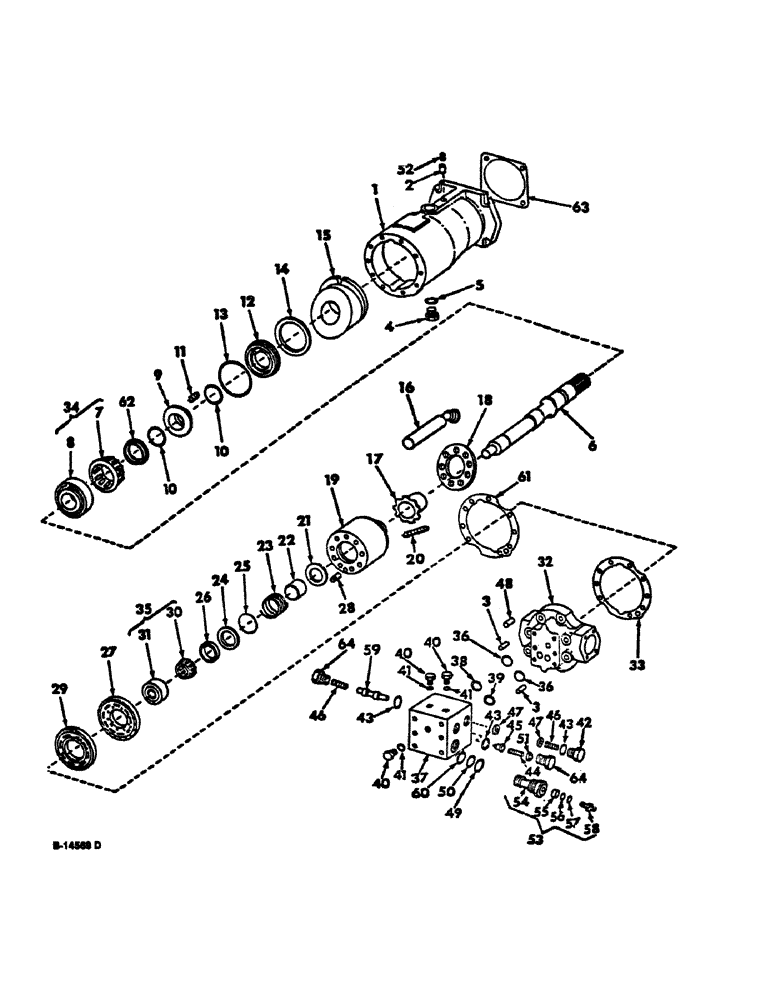

Запчасти Case IH 815 (10-22) - HYDRAULICS, HYDROSTATIC MOTOR, SUNDSTRAND (07) - HYDRAULICS

67795C91

PUMP

MOTOR ASSY, hydrostatic

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

SCREW, 1/2 x 1-3/4 C-Z hex-hd cap

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

283856C1

WASHER

17/32 x 1 x .188

1шт.

1

405095R1

HOUSING

hydrostatic motor

1шт.

2

19879R1

SPLIT PIN/SAFETY PIN

PIN, 5/16 x 3/4 dowel

1шт.

3

21061R1

DOWEL,3/8" x 1/2"

PIN, 3/8 x 1/2 dowel

2шт.

4

9410360

PLUG

7/8-14 C-Z str-thd o-ring boss

1шт.

5

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

1шт.

6

405096R1

SHAFT

hyd motor drive

1шт.

7

BEARING, cone, (not serviced separately) order ref. no. 34, 394181R91

1шт.

8

BEARING, cup, (not serviced separately) order ref. no. 34, 394181R91

1шт.

9

SEAL, (not serviced separately) order package assy 403072R92

1шт.

10

26078R1

O-RING,-129, Cl 7, 1.549" ID x .103" Thk

1-9/16 x 1-3/4 x 3/32

2шт.

11

393882R1

SPRING

drive shaft face seal

6шт.

12

393881R91

RETAINER

ASSY, drive shaft

1шт.

13

707220R1

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

3 x 3-1/4 x 1/8

1шт.

14

393883R1

SNAP RING,3.346", Int, #334

Ring, Snap, , drive shaft face 3.346", Int, #334

1шт.

15

405097R1

HOUSING

SWASHPLATE, hyd motor

1шт.

16

142484C1

PISTON ASSY.

PISTON ASSY, cylinder block

9шт.

17

394188R1

GUIDE

cyl block piston

1шт.

18

394189R1

RETAINER

cyl block piston

1шт.

19

BLOCK ASSY, piston cylinder, (not serviced separately) order kit 133789C92

1шт.

20

67789C1

SPRING

slipper retainer

9шт.

21

394192R1

SEAT

piston cyl block spring

1шт.

22

394193R1

BUSHING

drive shaft rear

1шт.

23

532290R2

SPRING

cylinder block

1шт.

24

394195R1

RETAINER

drive shaft rear

1шт.

25

21016R1

SNAP RING,#231, 2.413, Int, Spiral

RING, drive shaft rear

1шт.

26

394197R1

RING

drive shaft rear

1шт.

27

399406R1

PLATE

cyl block brg

1шт.

28

527636R1

PIN

CYLINDER BLOCK BRG PLATE

1шт.

29

530771R1

PLATE

cylinder block valve

1шт.

30

BEARING, cone (not serviced separately) order ref. no. 35, 394200R91

1шт.

31

BEARING, cup (not serviced separately) order ref. no. 35, 394200R91

1шт.

32

530732R1

COVER

CAP, motor end

1шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

5шт.

394881R1

WASHER

13/32 x 11/16 x .106

8шт.

33

394218R1

GASKET

motor rear end cover

1шт.

34

394181R91

BEARING ASSY,1.563" ID x 3.1572" OD x 1.1593, 0.9375"

ASSY, drive shaft

1шт.

35

394200R91

BEARING ASSY,1.0005" ID x 2.3442" OD x 0.923, 0.72"

ASSY, drive shaft rear pilot

1шт.

36

393886R1

WASHER

WASHER, manifold valve

2шт.

37

529426R1

HOUSING

ASSY, manifold, includes ref. no. 59

1шт.

186271

SCREW,Hex, 5/16" - 18 x 3 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3 3/4", G5

6шт.

394880R1

WASHER

11/32 x 19/32 x .083

6шт.

38

610547C1

O-RING,0.07" Thk x 0.864" ID, -20, Cl 7, 75 Duro

7/8 x 1 x 1/16

1шт.

39

383219R1

O-RING,0.924" ID x 0.103" Width

15/16 x 1-1/8 x 3/32

2шт.

40

9410356

PLUG

7/16-20 C-Z STR thd

3шт.

41

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

3шт.

42

394173R1

PLUG

manifold shuttle valve

1шт.

43

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 151/6 x 3/32

3шт.

44

531174R1

SPRING

manifold relief valve

1шт.

45

531175R1

PISTON

manifold relief valve

1шт.

46

394176R1

SPRING

manifold shuttle valve

2шт.

47

394177R1

WASHER

manifold shuttle valve

2шт.

48

394825R1

DOWEL

PIN, 5/16 x 5/8 dowel

1шт.

49

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1-3/64 x 1-7/32 x 7/64

2шт.

50

20947R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

13/16 x 1 x 3/32

2шт.

51

394279R91

KIT

PACKAGE, relief valve shim

1шт.

52

444687

PLUG,Hex Soc, 1/8"-27

Pipe Hex Soc, 1/8"-27

1шт.

53

402626R94

VALVE

ASSY, high pressure relief, includes ref. nos. 54 thru 58

2шт.

54

BODY, (not furnished separately) order 402626R92 valve assy

1шт.

55

402629R1

BUSHING

ball guide

1шт.

56

17008R1

BALL,1/4" Dia

Chrome-Steel 1/4" Dia

1шт.

57

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

1шт.

58

402630R2

CONNECTOR, ELEC

CONNECTOR, 37 deg flared tube special

1шт.

59

SPOOL, valve (not serviced separately) order ref. no. 37, 529426R1

1шт.

60

393887R1

BACK-UP RING

RING, relief valve back-up

4шт.

61

404780R1

SHIM

shaft rear bearing

1шт.

62

SEAL, shaft (not serviced separately) order package assy 403072R92

1шт.

63

166506C1

GASKET,0.81mm Thk

hydrostatic motor

1шт.

64

63432C1

PLUG

manifold shuttle valve

2шт.

393884R91

KIT

PACKAGE, manifold valve housing seal, composed of (1) o-ring 610547C1, (2) o-rings 383219C1, (2) washers 393886R1

1шт.

393885R91

GASKET KIT

PACKAGE, relief valve seal, composed of (1) o-ring 20947R1, (1) o-rings 297459R1, (2) o-rings 393887R1

1шт.

403072R92

O-RING KIT

o-ring and seal, composed of (1) seal (NSS), (1) seal (NSS), (2) o-ring 26078R1, (1) o-ring 707220R1, (6) spring 393882R1

1шт.

394171R91

VALVE

ASSY, manifold, consists of ref. nos. 37, 40, thru 47 and 51

1шт.
