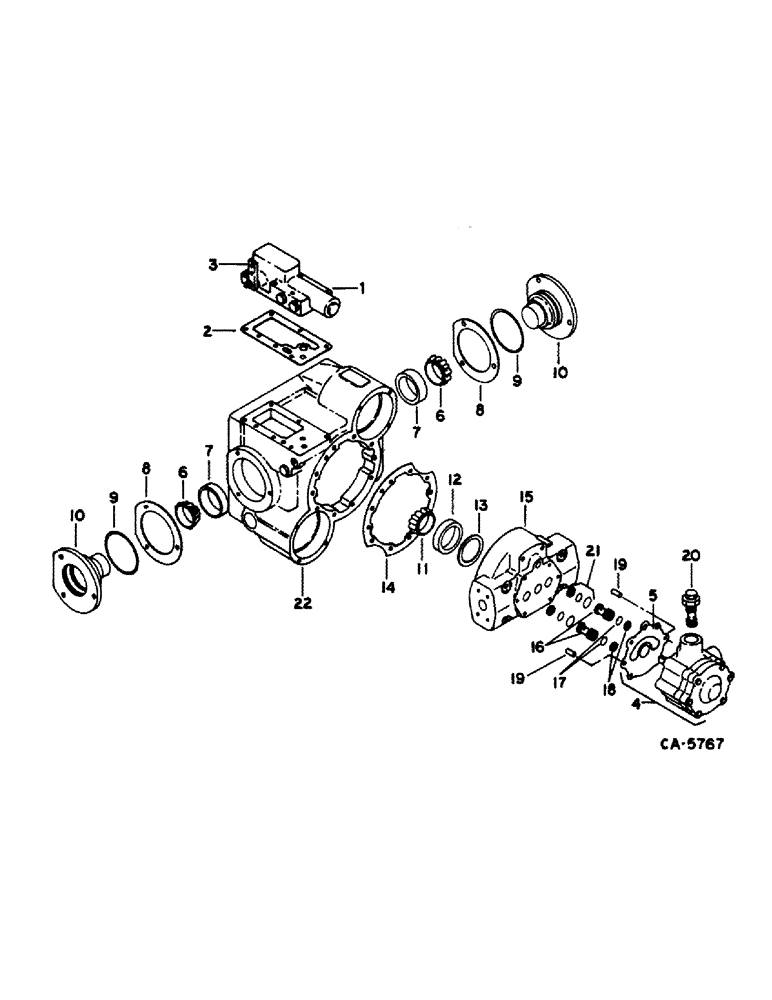

Запчасти Case IH 815 (10-21) - HYDRAULICS, HYDRAULIC PUMP, VALVE BLOCK, EATON (07) - HYDRAULICS

1

133755C91

HYDRAULIC VALVE

VALVE ASSY, control kit, includes ref. no. 2

1шт.

179824

BOLT,Hex, 5/16" - 18 x 1 3/4", Gr 5

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

2

133756C1

GASKET

control valve

1шт.

3

404782R1

HANDLE

control valve shaft

1шт.

NLS

NO LONGER SERVICED

1/4 ext-tooth lock

1шт.

114501

JAM NUT,Jam, 1/4"-20, G5

1шт.

4

133759C91

PUMP ASSY, LH charge, includes ref. no. 5

1шт.

186270

BOLT,Hex, 5/16" - 18 x 3 1/2", Gr 5

1шт.

5

133760C1

GASKET

charge pump

1шт.

6

399933C91

ROLLER BEARING,45.24mm ID x 19.81mm W

BEARING ASSY, trunnion cone

1шт.

7

399934C1

BEARING CUP,73.43mm OD x 15.75mm W

BEARING, trunnion cup

1шт.

8

142386C91

SHIM KIT

SHIM PACKAGE, trunnion

1шт.

9

707220R1

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

3 x 3-1/4 x 1/8 trunnion

2шт.

10

TRUNNION, (not serviced separately) order hyd pump R133699C93

1шт.

179857

BOLT,Hex, 7/16" - 14 x 7/8", Gr 5

7/16 x 7/8 pln type 5

1шт.

11

401221R91

BEARING ASSY,1" ID x 2.3437" OD x 0.92"

BEARING ASSY, input shaft cone

1шт.

12

401220R1

BEARING, CUP

BEARING, input shaft cup

1шт.

13

140783C91

PACKAGE

SHIM PACKAGE

1шт.

14

140782C1

GASKET

end cover

1шт.

15

PUMP END COVER, (not serviced separately) order hyd pump R128122C93

1шт.

179866

BOLT,Hex, 7/16" - 14 x 2", Gr 5

1шт.

179869

BOLT,Hex, 7/16" - 14 x 2 3/4", Gr 5

1шт.

16

140769C1

CHECK VALVE

VALVE ASSY, check

2шт.

17

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

9/16 x 3/4 x 3/32 check valve

2шт.

18

140770C1

RING

check valve back-up

2шт.

19

140754C1

PIN

charge pump dowel

2шт.

20

140771C1

VALVE

ASSY, low pressure relief

1шт.

21

393885R91

GASKET KIT

PACKAGE, relief valve seal, consists of

1шт.

393887R1

BACK-UP RING

RING, back-up

1шт.

20947R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

13/16 x 1 x 3/32

1шт.

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1-3/64 x 1-7/32 x 7/64

1шт.

22

VARIABLE HOUSING, (not serviced separately) order hyd. pump 128122C93

1шт.
