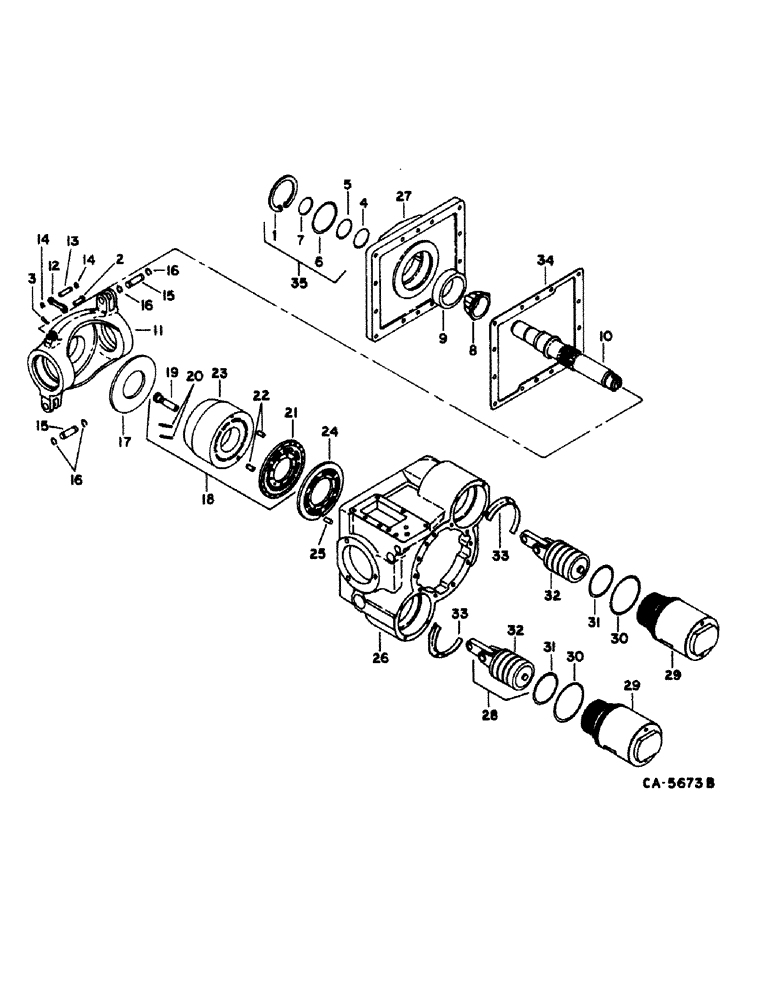

Запчасти Case IH 815 (10-19) - HYDRAULICS, HYDROSTATIC PUMP, EATON (07) - HYDRAULICS

133699C93

PUMP

ASSY, hydrostatic drive, eaton, renewed

1шт.

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

1/2 x 2-1/4 type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

283856C1

WASHER

17/32 x 1 x .188

1шт.

1

606937C1

SNAP RING,2.835", Int, #281

Ring, Snap, 2.835", Int, #281

1шт.

2

133757C1

PIN

linkage clevis

1шт.

3

133758C1

SPRING

PIN, hitch

1шт.

4

22278R1

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

1-11/6 x 1-7/8 x 3/32 shaft seal

2шт.

5

28146R1

O-RING, 1-3/4 x 1-7/8 x 1/16 shaft seal

1шт.

6

383017R1

O-RING,0.103" Thk x 2.55" ID, -145, Cl 5, 75 Duro

2-9/16 x 2-3/4 x 3/32 shaft seal

1шт.

7

24472R1

O-RING,0.07" Thk x 1.334" ID, -28, Cl 6, 90 Duro

1-3/8 x 1-1/2 x 1/1L shaft seal

1шт.

8

636826R91

BEARING ASSY,44.45 mm ID x 51 mm OD x 25.4 mm

BEARING ASSY, input shaft cone

1шт.

9

130503H

BEARING CUP

BEARING, input shaft cup

1шт.

10

140775C1

SHAFT

input

1шт.

11

142385C1

HOUSING

variable swashplate

1шт.

12

142387C1

PIPE FITTING

LINK, control valve

1шт.

13

140765C1

PIN

control valve link

1шт.

14

233045R1

SNAP RING,#25, Ext, Crescent

Ring, Snap, #25, Ext, Crescent

2шт.

15

140766C1

PIN,14.22mm OD x 39.12mm L

servo linkage

2шт.

16

28145R1

SNAP RING,#56, Ext

Ring, Snap, #56, Ext

4шт.

17

142388C1

PLATE

thrust

1шт.

18

140777C91

KIT

rotating group, includes ref. no. 19 thru 23

1шт.

19

140778C1

PISTON

ASSY, cyl block

9шт.

20

140779C1

PIN

pre-load dowel

6шт.

21

140780C1

BEARING WASHER

bearing

1шт.

22

140754C1

PIN

bearing plate dowel

2шт.

23

BARREL (not serviced separately) order ref. no. 18

1шт.

24

142389C1

PLATE

LH pump valve

1шт.

25

140754C1

PIN

pump valve

1шт.

26

VARIABLE HOUSING, (not serviced separately) order R133699C93

1шт.

27

MOUNTING FLANGE, (not serviced separately) order R133699C93

1шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

7/16 x 1-1/4 pln type 5

1шт.

28

140772C91

PISTON

ASSY, servo

2шт.

29

140773C1

KIT

servo sleeve

2шт.

30

383018R1

O-RING,2.675" ID x 0.103" Width

2-11/16 x 2-7/8 x 3/32 servo sleeve

2шт.

31

22280R1

O-RING,0.103" Thk x 2.425" ID, -143, Cl 5, 75 Duro

2-7/16 x 2-5/8 x 3/32 servo sleeve

2шт.

32

SERVO PISTON, (not serviced separately) order ref. no. 28

1шт.

33

140774C1

RETAINER

servo

2шт.

28144R1

HEX SOC SCREW,#8 - 32 x 3/8"

SCREW, no. 8 x 3/8 znd h/shd cap

1шт.

34

140784C1

GASKET

mounting flange

1шт.

35

142518C91

KIT

SEAL ASSY KIT, shaft includes ref. no. 1, 4, 5, 6 and 7

1шт.
