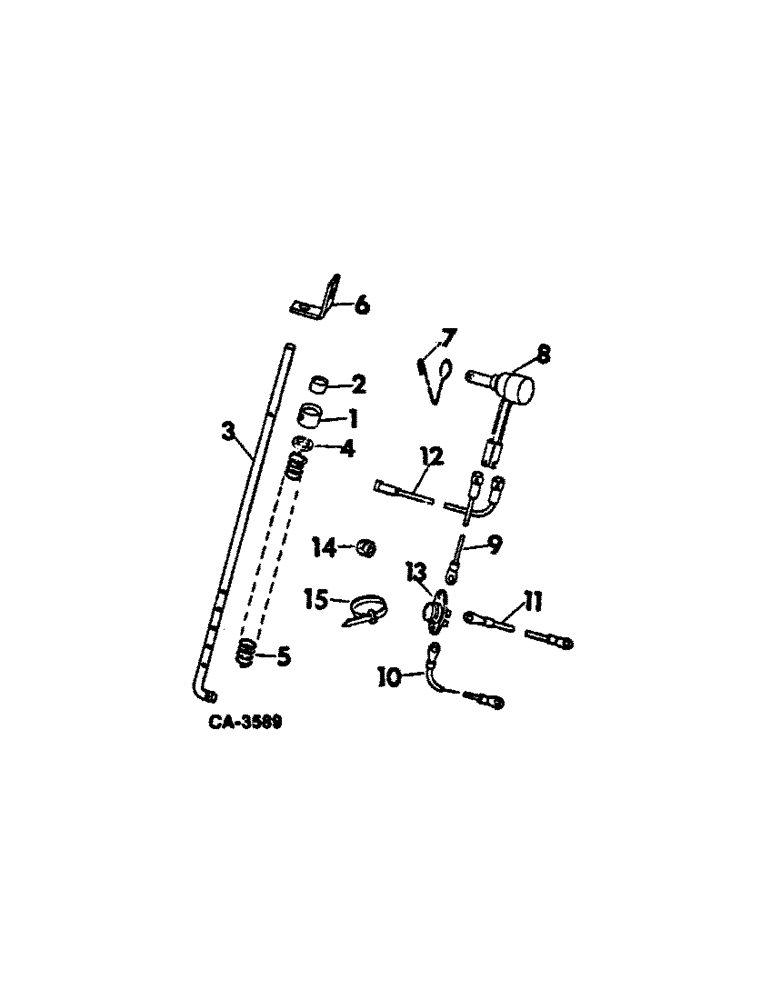

Запчасти Case IH 815 (10-15) - HYDRAULICS, AUTOMATIC HEADER CONTROL, REVERSE DRIVE LOCKOUT (07) - HYDRAULICS

1

175002C91

SLIDE ASSY, feeder switch, includes ref. no. 2

1шт.

436746

SCREW

10-32 x 1/4 slt-pan-hd

1шт.

121801

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

1шт.

2

175003C1

BUSHING

1шт.

3

175015C1

ROD, feeder hitch

1шт.

586591R1

COTTER PIN

PIN, 1/8 qa

2шт.

20803R3

WASHER, 13/32 x 1 x 11 ga

2шт.

4

631833R1

WASHER, feeder switch rod

1шт.

5

612871R1

SPRING

feeder switch rod

1шт.

6

179209C1

ANGLE, feeder switch rod guide

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss

1шт.

20893R1

WASHER

.344 x 1.000 x .105

1шт.

7

175013C1

SPRING

solenoid extension

1шт.

8

175313C1

SOLENOID, w/wire cover

1шт.

8

175014C1

SOLENOID ASSY, lockout

1шт.

20117R1

PIN, 1/8 x 1/2 SLT spring

1шт.

9

175004C1

WIRE ASSY, solenoid to push button

1шт.

10

175007C1

WIRE ASSY, feeder switch to push button

1шт.

11

175008C1

CABLE ASSY.

WIRE ASSY, push button, Serial Range: switch-ground

1шт.

12

175011C1

WIRE ASSY, Serial Range: power-solenoid

1шт.

13

366317R93

SWITCH

ASSY, push button

1шт.

13

366317R93GV

CONTROL

Value, Control Switch

1шт.

120611

NUT,#10 - 32

no. 10-32 sq

2шт.

436750

SCREW,Slotted Pan Hd, #10-32 x 1/2"

no. 10-32 x 1/2 slt-pan-hd

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

21742R1

WASHER

1-1/32 x 1-1/2 x 22 ga

2шт.

14

109390

GROMMET,5/16" ID x 23/32" x .062", Diag Cut

5/16 rubber

2шт.

15

702093C1

CABLE TIE

STRAP, wire tie

4шт.
