Запчасти Case IH 815 (10-12) - HYDRAULICS, AUTOMATIC HEADER CONTROL (07) - HYDRAULICS

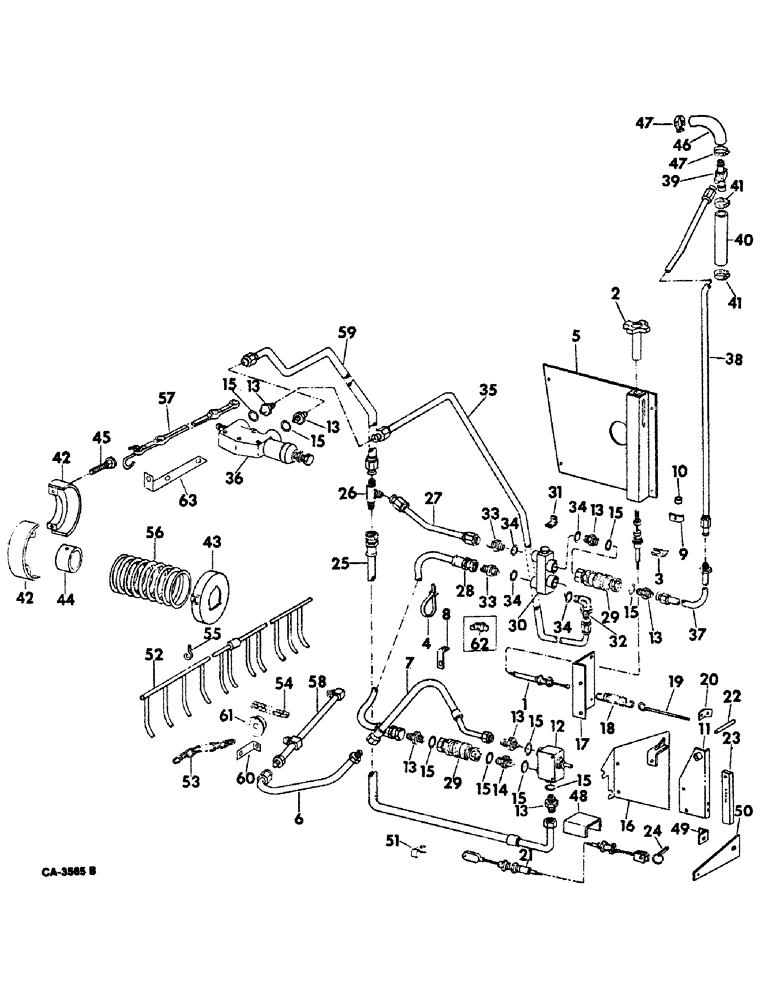

Схема запчастей Case IH 815 - (10-12) - HYDRAULICS, AUTOMATIC HEADER CONTROL (07) - HYDRAULICS
38
14
16
54
50
42
33
13
47
46
26
56
22
17
4
30
52
59
7
24
13
61
45
29
32
20
44
12
2
35
13
15
8
42
15
13
43
23
13
15
62
39
34
63
13
53
37
10
41
13
5
15
51
15
15
58
1
40
47
33
15
57
34
31
28
36
15
11
60
55
3
41
21
49
48
34
9
27
6
18
34
29
19
25
15

Артикул

Название

Примечание

Количество

1

174238C1

CABLE

auto header height control 110 in

1шт.

2

174249C1

KNOB, height control upper cable

1шт.

3

379187C1

CLIP

height control cable

1шт.

112726

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

1шт.

20250

PIN, 3/16 x 2-1/4 rod end

1шт.

3479

WASHER,7/32" x 9/16" x .060"

7/32 x 9/16 x 16 ga

2шт.

4

702093C1

CABLE TIE

CLAMP, height control upper cable

3шт.

5

174245C1

COVER ASSY, operator deck left console

1шт.

6

179188C1

TUBE ASSY, header lift center

1шт.

7

179186C1

HOSE,15.88 mm OD

-TUBE ASSY, header lift lower

1шт.

8

179182C1

ANGLE, hyd tube support

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 hex-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

9

165601C1

CLAMP

hyd tube

2шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2 type 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

180083

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

5/16 x 1-1/2 type 5

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

10

163492C1

RUBBER INSULATOR

STRIP, hyd tube clamp rubber

2шт.

18766R1

BOLT,Hex, 5/16"-18 x 1 3/4", G2

5/16 x 1-3/4 type 1

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

11

174235C3

SUPPORT

ASSY, header control valve

1шт.

18677R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 2 1/2", Gr 2

BOLT, 5/16 x 2-1/2 sq-nk crg

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

2шт.

19588R1

FITTING

lub

1шт.

12

VALVE ASSY, header automatic control, refer to this group under header automatic control valve for unit listing

1шт.

13

384539R1

HYD CONNECTOR,7/8"-14, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, 7/8-14 & 3/4-16 37 deg

7шт.

14

9409472

UNION

3/4-16 hyd flareless tube

1шт.

15

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

for 1/2 OD tube

9шт.

16

179184C1

SUPPORT ASSY, header flow control

1шт.

20344R1

BOLT

5/16 x 3-1/4 hex-hd

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 sq-nk crg

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

2шт.

17

179181C1

ANGLE, flow control valve support

1шт.

155807C1

BOLT,Hex Serr, 5/16" - 18 x 1"

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

18

19940DA

SPRING

header control valve pivot support

1шт.

19

174267C1

BOLT,1/4" - 20 x 5"

header control valve pivot support spring eye

1шт.

109084

NUT,1/4"-20, G5

2шт.

20

179191C1

ANGLE, pivot support spring eye bolt

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 hex-hd

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

21

179275C1

CABLE

auto header height control lower 163.1 in., for 80 in. feeder

1шт.

21

174241C2

CABLE

auto header height control 151 in., for 70 in. feeder

1шт.

22

179441C1

SPACER

header control valve support pivot

1шт.

23

174244C1

BAR

header control valve

1шт.

24

174230C1

PIN

header control valve bar

1шт.

25

179187C1

HOSE

ASSY, auto header flow control, 36 in., serial no. 19000 and below

1шт.

25

196997C1

HOSE

ASSY, auto header flow control, 39 inches, serial no. 19001 and above

1шт.

26

9402983

TEE,7/8"-14, 37 Degree

7/8-14 37 deg hyd tube 3-way

1шт.

27

179180C1

TUBE ASSEMBLY, flow control return to fast drop valve

1шт.

28

155225C91

HOSE ASSY.

HOSE, auto header control pressure, 29 in.

1шт.

29

174276C1

FITTING

COUPLING, auto header control pres

1шт.

30

VALVE ASSY, header automatic control, refer to this group under header automatic control valve for unit listing

1шт.

31

179183C1

ANGLE, fast drop valve support

1шт.

155807C1

BOLT,Hex Serr, 5/16" - 18 x 1"

1шт.

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

5/16 x 2 hex-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

32

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 37 deg hydraulic tube 90 deg

1шт.

33

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 7/8-14 37 deg hyd tube

2шт.

34

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

for 5/8 OD tube

4шт.

35

179189C1

TUBE,.625" OD, 37.7, 16.7" Length

ASSEMBLY, header control pressure

1шт.

36

VALVE ASSY, header lift, refer to this group under header lift valve for unit listing

1шт.

37

179178C1

TUBE ASSEMBLY, fast drop to res lower return

1шт.

38

179179C1

TUBE ASSY, fast drop to res upper return

1шт.

39

179197C1

TEE, fast drop to res return tube 3-way

1шт.

40

608810R1

HOSE, fast drip to res return 4.4 in.

1шт.

41

122316R91

HOSE CLAMP,#12, 0.69/1.25 Type F Worm

CLAMP, fast drop to res return hose

2шт.

42

936779R3

FLANGE, header lift helper spring rear, for use w/2-1/4 OD cylinder

4шт.

42

166602C2

FLANGE, header lift helper spring, for 2-1/2 cylinder

1шт.

576517R1

LOCK PIN,1/4" x 1 1/2", Slotted

Pin, 1/4" x 1 1/2", Slotted

1шт.

43

936778R2

FLANGE

header lift helper spring front

2шт.

576517R1

LOCK PIN,1/4" x 1 1/2", Slotted

Pin, 1/4" x 1 1/2", Slotted

1шт.

44

179190C1

PIPE, helper spring stop

2шт.

45

173932C1

BOLT,Spcl, 1/2" - 13 x 3 1/2"

header lift helper spring flange

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

46

HOSE, header lift return, use 15 in. of 3/4 in. OD hose from 25 ft roll marked 180720C1

1шт.

47

122316C91

CLAMP

header lift return hose

2шт.

48

179258C1

SHIELD, auto header control lower cable

1шт.

49

179281C1

ANGLE, lower cable bracket support

1шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 sq-nk crg

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

50

179282C1

BRACKET

lower cable support

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 sq-nk crg

1шт.

18655R1

BOLT,Hex, 1/4"-20 x 1", G2

1/4 x 1 hex-hd

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

51

299407C1

CLAMP

lower cable

1шт.

52

178823C1

BAR ASSY.

BAR ASSY, finger, for 10-ft, 13-ft and 15-ft headers

1шт.

52

178825C1

BAR ASSY.

BAR ASSY, finger, for 15-ft, 17-ft and 20-ft headers

1шт.

53

167570C1

CHAIN,203.2mm L

finger stop

2шт.

18655R1

BOLT,Hex, 1/4"-20 x 1", G2

1/4 x 1 hex-hd

2шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

4шт.

937875R1

SCREW,Serr, 1/4" - 20

1/4 x 3/4 slt-truss-hd

2шт.

21870R1

WASHER

17/64 x 3/4 x 16 g

2шт.

54

174266C1

CHAIN (AG)

CHAIN, finger pivot

1шт.

55

159780C1

EYEBOLT,3/8" - 16 x 2.20", Full Thd

finger bar

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

56

936760R2

SPRING, header auto control helper, 13-ft header

2шт.

56

159710C1

SPRING

header auto control helper, 15-ft header

2шт.

56

174211C1

SPRING, header auto control helper, 17-ft and 20-ft headers

2шт.

57

174451C1

FASTENER, height control cable

1шт.

18630R1

BOLT (SPREADER),Short NK, 1/4"-20 x 1 3/4", G2

BOLT, 1/4 x 1-3/4 sq-nk crg

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

120392

WASHER,1/4", SAE

9/32 x 5/8 x 16 ga

2шт.

58

166283C1

TUBE

header lift lower

1шт.

59

179167C1

TUBE

ASSY, header lift center

1шт.

60

179435C1

ANGLE

chain anchor

1шт.

61

482635R2

ROLLER

header control chain idler for use w/floating cutter bar

1шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

1шт.

607895R1

WASHER

17/32 x 1 x 11 ga

1шт.

22042R1

WASHER

17/32 x 2 x 11 ga

1шт.

62

9411106

ELBOW

45 deg

1шт.

63

174450C1

ANGLE, cable support

2шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 crg type 1

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

Выбрано товаров: 124
