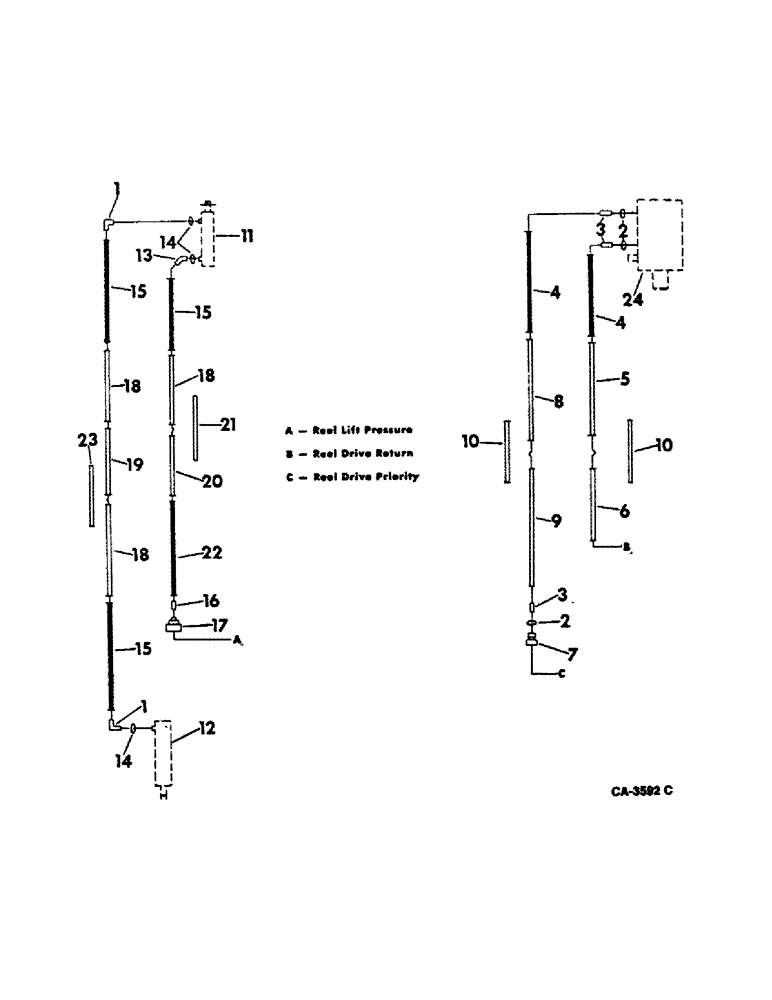

Запчасти Case IH 815 (10-08) - HYDRAULICS, HYDRAULIC DIAGRAM, REEL DRIVE AND REEL LIFT FOR HEADERS (07) - HYDRAULICS

1

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 37 deg hyd tube 90 deg

2шт.

2

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

for 5/8 OD tube

3шт.

3

481352R1

HYD CONNECTOR,3/4"-16, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 3/4-16 x 7/8-14 37 deg hyd

3шт.

4

587582R91

HOSE ASSY.

HOSE ASSY, hyd motor, 29 in.

2шт.

5

178852C1

HYD TUBE

TUBE, outer return

1шт.

6

178851C1

HYD TUBE

TUBE, inner return

1шт.

7

395150R91

COUPLING, QUICK, FEM

COUPLING ASSY, self-sealing, female

1шт.

8

178854C1

HYD TUBE

TUBE, outer pressure

1шт.

9

178853C1

HYD TUBE

TUBE, inner pressure

1шт.

10

935666R11

PIPE

TUBE, spacer, 12 in., 15 ft grain header

2шт.

10

172062C1

TUBE

spacer, 21 in., for 16.5 ft

2шт.

10

178856C1

TUBE

spacer, 27 in., 17.5 ft grain header

2шт.

10

178857C1

TUBE

spacer, 42 in., 20 ft grain header

2шт.

10

178340C1

TUBE, spacer, 56.6 in., for 22.5 ft

2шт.

10

178858C1

TUBE

spacer, 67 in., 24 ft grain header

2шт.

11

CYLINDER ASSY, master, refer to this unit under master lift cylinder for unit listing

1шт.

12

CYLINDER ASSY, slave, refer to this group under slave cylinder for unit listing

1шт.

13

9411104

ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 37 deg hyd flared tube adj str thd 45 deg

1шт.

14

364880R1

PLUG

O-RING, 3/8 OD tube

3шт.

15

336081R1

HOSE

ASSY, reel lift

3шт.

16

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 9/16 x 37 deg hyd flared short swivel tube

1шт.

17

187563C1

COUPLING, QUICK, FEM

COUPLING ASSY, self sealing female

1шт.

18

178812C1

HYD TUBE

TUBE ASSY, outer end

3шт.

19

178811C1

HYD TUBE

TUBE ASSY, master to slave cyl center

1шт.

20

178813C1

HYD TUBE,.375" OD, 35, 1.25" Length

TUBE ASSY, pressure to master cylinder center

1шт.

21

178817C1

TUBE,0.375" OD, 18" Length

ASSY, spacer 18 in., 13 ft platform

1шт.

21

162377C91

TUBE,30" Length

ASSY, spacer 36 in., 15 ft platform

1шт.

21

197536C1

TUBE ASSY, spacer 39 in., for 16.5 ft

1шт.

21

197531C1

TUBE,75 mm Length

ASSY, spacer 75 in., for 22.5 ft

1шт.

21

178818C1

TUBE

ASSY, spacer 45 in., 17 ft platform

1шт.

21

178819C1

TUBE

ASSY, spacer 60 in., 20 ft platform

1шт.

21

178820C1

TUBE

ASSY, spacer 85 in., 24 ft platform

1шт.

22

179202C1

HOSE,7.94mm ID x 1727.2mm L, SAE 100R1

header to combine 68 in.

1шт.

23

172015C1

TUBE

ASSY, spacer 36 in., 13 ft platform

1шт.

23

178819C1

TUBE

ASSY, spacer 60 in., 1 used in 15 ft, 2 used 20 ft

1шт.

23

178818C1

TUBE

ASSY, spacer 45 in., 17 ft platform

1шт.

23

197530C1

TUBE,0.375" OD

ASSY, spacer, 39 in., for 16.5 ft

1шт.

23

197531C1

TUBE,75 mm Length

ASSY, spacer, 75 in., 2 used 22.5 ft

1шт.

23

178820C1

TUBE

ASSY, spacer, 85 in., 24 ft platform

1шт.

24

MOTOR ASSY, hydraulic reel drive, refer to this group under hydraulic reel drive motor

1шт.
