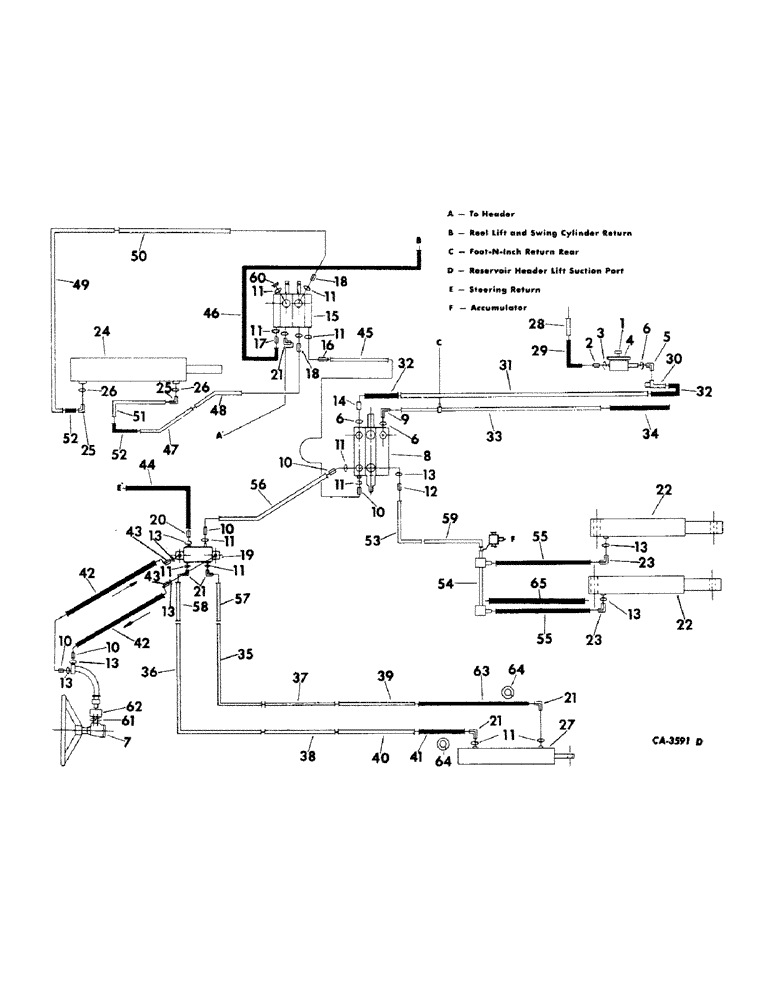

Запчасти Case IH 815 (10-06) - HYDRAULICS, HYDRAULIC DIAGRAM, STEERING AND HEADER LIFT (07) - HYDRAULICS

1

160452C92

PUMP, HYDRAULIC

PUMP ASSY, header lift, optional for 178382C91 pump

1шт.

168318C93

SEAL KIT

ASSY, diaphragm

1шт.

1

178382C91

PUMP

ASSY, header lift, optional for 160452C92 pump

1шт.

178385C1

SEAL KIT

KIT ASSY, pump repair

1шт.

18797R1

BOLT

7/16 x 1-3/4 hex-hd mach

2шт.

636489R1

KEY

3/16 x 13/16 sq parallel

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16 hex

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

2

390640R1

FITTING

CONNECTION, pump suction hose 1-5/16-12, for use w/pump 178382C91

1шт.

3

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

for 1 in. OD tube, for use w/pump 178382C91

1шт.

4

173585C1

GASKET

header lift pump

1шт.

5

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 hyd tube 37 deg 90 deg

1шт.

6

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

for 5/8 OD tube

3шт.

7

PUMP ASSY, steering hand, refer to this group under steering hand pump for unit listing

1шт.

8

VALVE ASSY, header lift, refer to this group under header lift valve for unit listing

1шт.

9

673391R1

ELBOW UNION,90 Degree, 1 1/16"-12, 37 Degree x 7/8"-14, O-Ring

ELBOW, return tube

1шт.

10

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 9/16-18 37 deg

5шт.

11

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, for 3/8 OD tube

10шт.

12

384539R1

HYD CONNECTOR,7/8"-14, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, 3/4-16 x 7/8-14 37 deg

3шт.

13

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

for 1/2 OD tube

8шт.

14

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 7/8-14 37 deg

1шт.

15

VALVE ASSY, grain tank unloader tube, refer to this group under grain tank unloader tube valve for unit listing

1шт.

16

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 9/16-18 37 deg

1шт.

17

178036C1

CONNECTOR, ELEC

CONNECOTR, unloader tube swing valve return

1шт.

18

157519C1

HYD CONNECTOR,7/16"-20, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 7/16-20 & 9/16-18 37 deg

2шт.

19

VALVE ASSY, steering, refer to this group under steering valve for unit listing

1шт.

20

178036C1

CONNECTOR, ELEC

CONNECTOR, 3/4-16 3/8 ID hose

1шт.

21

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 37 deg hyd tube 90 deg

5шт.

22

CYLINDER ASSY, feeder lift, refer to this group under feeder lift cylinder for unit listing

1шт.

23

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

3/4-16 37 deg hyd tube 90 deg

2шт.

24

CYLINDER ASSY, grain tank unloader tube swing, refer to this group under grain tank unloader tube swing cylinder for unit listing

1шт.

25

9410974

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, O-Ring

ELBON, 7/16-20 37 deg

2шт.

26

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

2шт.

27

CYLINDER ASSY, steering, refer to this group under steering cylinder for unit listing

1шт.

28

178946C1

TUBE ASSY, header lift suction

1шт.

29

178947C1

HOSE,1.00" ID x 12.00", SAE 100R4, CLASS 4

HOSE , Header Lift Suction 1.00" ID x 12.00", SAE 100R4, CLASS 4

1шт.

30

178948C1

TUBE

ASSY, header lift upper press.

1шт.

31

178949C1

TUBE ASSY, header lift lower press.

1шт.

32

381173C91

HOSE ASSY, header lift press. 18.25 in.

2шт.

33

178989C1

TUBE ASSY, header lift return

1шт.

34

HOSE, header lift return, use 18 in. of 3/4 ID hyd hose from 25 ft roll marked 180720C1

1шт.

35

178954C1

TUBE ASSY, steering intermediate forward upper 3" OD

1шт.

36

178955C1

TUBE ASSY, steering intermed forward lower

1шт.

37

178956C1

TUBE ASSY, steering intermed rear upper

1шт.

38

178957C1

TUBE ASSY, steering intermed rear lower

1шт.

39

179664C1

TUBE ASSY, steering rear

1шт.

40

179664C1

TUBE ASSY, steering rear

1шт.

41

178961C1

HOSE,7.9 mm ID x 1270.00 mm, SAE 100R1

Steering Cylinder 7.9 mm ID x 1270.00 mm, SAE 100R1

1шт.

42

168132C1

HOSE

ASSY, steering upper, 67 in.

2шт.

43

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, 3/4-16 37 deg hyd flared tube

2шт.

44

HOSE, steering return, use 12.5 in of 3/8 ID hyd hose from 50 ft roll marked 180730C1

1шт.

45

165614C92

TUBE ASSY, grain tank unloader tube swing valve pressure

1шт.

46

HOSE, swing valve return, use 12.5 in of 3/8 ID hyd hose from 50 ft roll marked 180730C1

1шт.

47

178966C1

TUBE ASSY, unloader tube swing cyl extend upper

1шт.

48

178964C1

TUBE ASSY, unloader tube swing cyl extend lower

1шт.

49

178965C1

TUBE ASSY, unloader tube swing cyl retract upper

1шт.

50

178963C1

TUBE ASSY, unloader tube swing cyl retract lower

1шт.

51

178967C1

TUBE ASSY, unloader tube swing cyl

1шт.

52

162305C91

HOSE

ASSY, unloader tube swing cyl

2шт.

53

179167C1

TUBE

ASSY, header lift upper

1шт.

54

166283C91

TUBE ASSY, header lift lower

1шт.

55

587582R91

HOSE ASSY.

HOSE ASSY, header lift cyl, 29 in.

2шт.

56

178951C1

TUBE ASSY, steering pressure

1шт.

57

178952C1

TUBE ASSY, steering cyl upper forward 3" OD

1шт.

58

178953C1

TUBE ASSY, steering cylnder lower forward .375" OD, 25.7, 15.7" Length

1шт.

59

179169C1

TUBE ASSY, header lift center

1шт.

60

9410358

PLUG

9/16-18 37 deg

1шт.

61

164907C1

RING

1-7/8 x 2-1/4

2шт.

62

BLOCK, steering wheel, refer to group 5 under steering wheel for unit listing

1шт.

63

178962C1

HOSE ASSY.

HOSE, steering cylinder 60 in., nonadjustable guide wheel axle and adjusting 67 to 91 inches

1шт.

63

662014C1

HOSE ASSY, steering cylinder 42 in., adjustable guide wheel axle and adjusting 56 to 68 inches

1шт.

64

167955C2

SEAL

steering hose

2шт.

65

(Not used in this application)

1шт.
