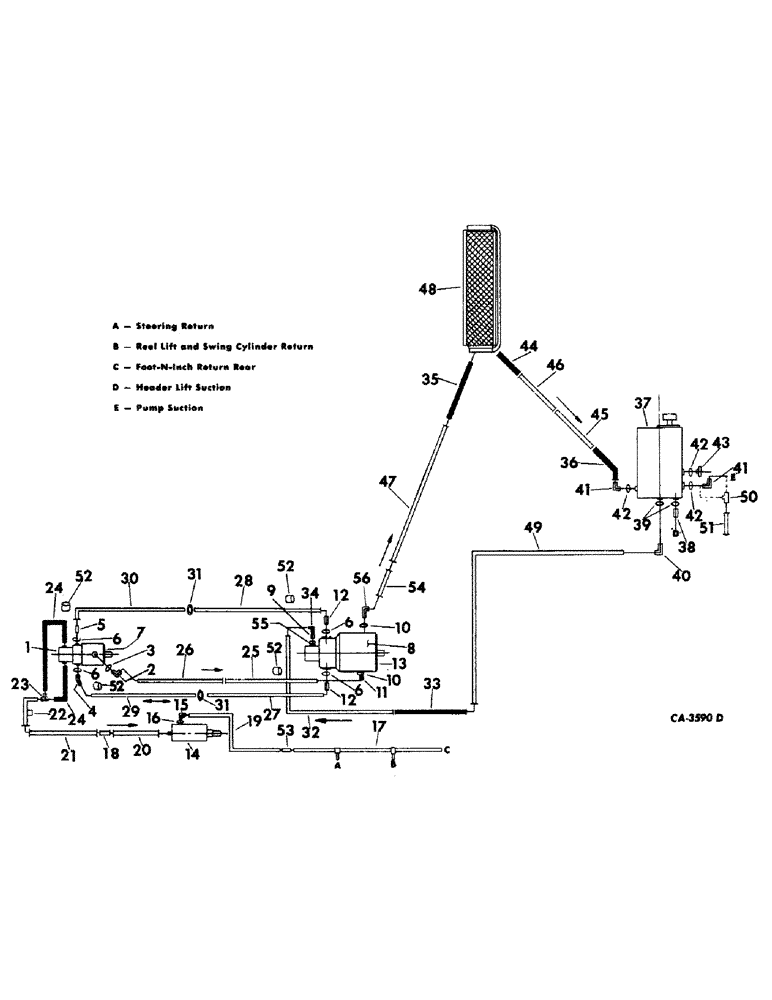

Запчасти Case IH 815 (10-03) - HYDRAULICS, HYDRAULIC DIAGRAM, HYDROSTATIC SYSTEM (07) - HYDRAULICS

1

MOTOR ASSY, hydrostatic, refer to this group under hydrostatic motor for unit listing

1шт.

2

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 hyd tube 37 deg 90 deg, for eaton drive

1шт.

2

633460R91

ELBOW,90 Degree, 7/8"-14, 37 Degree x 1 1/16"-12, O-Ring

7/8 x 5/8 37 deg hyd flared tube, for sundstrand drive

1шт.

3

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

for 5/8 OD tube, for sundstrand drive

1шт.

3

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

for 3/4 tube, for eaton drive

1шт.

Order part 87085C2

1шт.

4

595406R1

ELBOW

1-5/16-12 hyd tube 45 deg

1шт.

5

595406R1

ELBOW

1-5/16-12 hyd tube 45 deg

1шт.

6

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

for 1 in. OD tube

4шт.

7

166506C1

GASKET,0.81mm Thk

hydrostatic ground drive pump

1шт.

8

PUMP ASSY, hydrostatic, refer to this group under hydrostatic pump for unit listing

1шт.

9

574479R1

HYD CONNECTOR,1 1/16"-12, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 7/8-14 x 1-1/16-12 hyd tube 37 deg, for suction port, for sundstrand drive

1шт.

10

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

for 5/8 OD tube, for sundstrand drive

3шт.

10

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

for 3/4 tube, for eaton drive

1шт.

11

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 7/8-14 hyd tube 37 deg, for sundstrand drive

1шт.

11

633460R91

ELBOW,90 Degree, 7/8"-14, 37 Degree x 1 1/16"-12, O-Ring

7/8 x 5/8 37 deg hyd flared tube, for eaton drive

1шт.

12

163915C1

FITTING

CONNECTOR, 1-5/16-12 hyd tube

2шт.

13

166506C1

GASKET,0.81mm Thk

hydrostatic ground drive motor

1шт.

14

VALVE ASSY, foot-n-inch pilot relief, refer to this group under foot-n-inch valve for unit listing

1шт.

15

164596C1

ELBOW

1/2-20 x 9/16-18 37 deg hyd tube 90 deg

1шт.

17

178969C1

TUBE ASSY, foot-n-inch rear return

1шт.

18

9403252

FITTING,Blkhd, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree

UNION, 7/16-20 37 deg hyd flared tube

1шт.

9403291

BHD LOCK NUT,Blkhd, 7/16"-20

NUT, 7/16-20 bulkhead union lock

1шт.

19

165638C91

TUBE ASSY, foot-n-inch front return

1шт.

20

165624C92

TUBE ASSY, foot-n-inch upper

1шт.

21

178971C1

TUBE ASSY, foot-n-inch center

1шт.

22

178993C1

TUBE ASSY, foot-n-inch lower

1шт.

23

9402979

TEE,7/16"-20, 37 Degree

7/16-20 37 deg flared tube 3-way B

1шт.

24

175760C1

HOSE ASSY.

HOSE ASSY, foot-n-inch, 10 in.

2шт.

25

178985C1

TUBE

ASSY, hydrostatic bleed upper, for sundstrand drive

1шт.

25

187990C1

TUBE ASSY center, for eaton drive

1шт.

25

187991C1

TUBE

ASSY, upper, for eaton drive

1шт.

26

178981C1

TUBE

ASSY, hydrostatic bleed lower

1шт.

27

178977C1

TUBE

ASSY, ground drive front upper pressure

1шт.

28

178978C1

TUBE ASSY, ground drive rear upper pressure

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8 x 1-1/4 hex-hd cap

4шт.

123920

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

29

178979C1

TUBE ASSY, ground drive front lower pressure

1шт.

30

178980C1

TUBE

ASSY, ground drive rear lower pressure

1шт.

31

343906R1

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

1-5/16 x 1-9/16 x 1/8

2шт.

32

178990C1

TUBE ASSY, charge suction, pump end, for sundstrand drive

1шт.

32

187989C1

TUBE ASSY, suction, pump end, for eaton drive

1шт.

33

HOSE, charge suction, use 9 in. of 3/4 in. ID hose from 23 ft roll marked 180721C1

1шт.

34

9410283

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1-1/16-12 37 deg hyd tube 90, for sundstrand drive

1шт.

34

380633R1

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1 5/16"-12, O-Ring

CONNECTOR, 1-1/16-12 x 1-5/16-12 37 deg flared hyd tube, for eaton drive

1шт.

35

HOSE, hydro pump to oil cooler, use 9 in. of 1.0 in. ID hose from 25 ft roll marked 180719C1

1шт.

36

HOSE, oil cooler to reservoir, use 18 in. of 3/4 ID hyd hose from 25 ft roll marked 180720C1

1шт.

37

RESERVOIR ASSY, hydraulic oil, refer to this group under hydraulic reservoir for unit listing

1шт.

38

9410207

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/16"-12, O-Ring

CONNECTOR, 1-5/16-12 37 deg hyd flared tube

1шт.

39

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

for 1 OD tube

2шт.

40

150776C91

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 5/16"-12, O-Ring

1-5/16-12 to 1-1/16-12 37 deg hyd flared tube reducer

1шт.

41

387006R91

ELBOW

1-1/16-12 90 deg hyd hose

2шт.

42

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube

3шт.

43

9410361

PLUG

1-1/16-12

1шт.

44

HOSE, oil cooler to reservoir, gasoline engine, use 15 in. of 3/4 ID hyd hose from 25 ft roll marked 526603R1

1шт.

44

HOSE, oil cooler to reservoir, diesel engine, use 15 in. of 3/4 ID hyd hose from 25 ft roll marked 180720C1

1шт.

45

179450C1

TUBE ASSY, oil cooler to reservoir LH, gasoline engine

1шт.

45

179987C1

TUBE ASSY, oil cooler to reservoir LH, diesel engine

1шт.

46

179451C1

TUBE ASSY, oil cooler to reservoir RH, gasoline engine

1шт.

46

179250C1

TUBE ASSY, oil cooler to reservoir, LH, diesel engine

1шт.

47

179452C1

TUBE ASSY, hydro pump to oil cooler, gasoline engine

1шт.

47

179249C1

TUBE ASSY, hydro pump to oil cooler, diesel engine

1шт.

48

COOLER ASSY, oil, refer to this group under oil cooler for unit listing

1шт.

49

178992C1

TUBE ASSY, charge suction, reservoir end

1шт.

50

9402979

TEE,7/16"-20, 37 Degree

7/16-20 37 deg flared tube 3-way, refer to this group under hydraulic diagram for reel drive and reel lift for headers for unit listing

1шт.

51

TUBE ASSY, pump suction, refer to this group under hydraulic diagram for reel drive and reel lift for unit listing

1шт.

52

165722C1

SLEEVE

tube rubber

4шт.

53

9403254

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

UNION, 9/16-18 37 deg hyd flared tube

1шт.

9403293

LOCK NUT,Blkhd, 9/16"-18

NUT, 9/16-18 bulkhead union lock

1шт.

54

187988C1

TUBE ASSY, cooler extension, for eaton drive

1шт.

55

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

for 5/8 OD tube, for sundstrand drive

1шт.

55

269247R1

O-RING

for 1 OD tube, for eaton drive

1шт.

56

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14, for sundstrand

1шт.

56

633460R91

ELBOW,90 Degree, 7/8"-14, 37 Degree x 1 1/16"-12, O-Ring

7/8 to 5/8, for eaton

1шт.

16

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, 5/16 OD tube

1шт.
