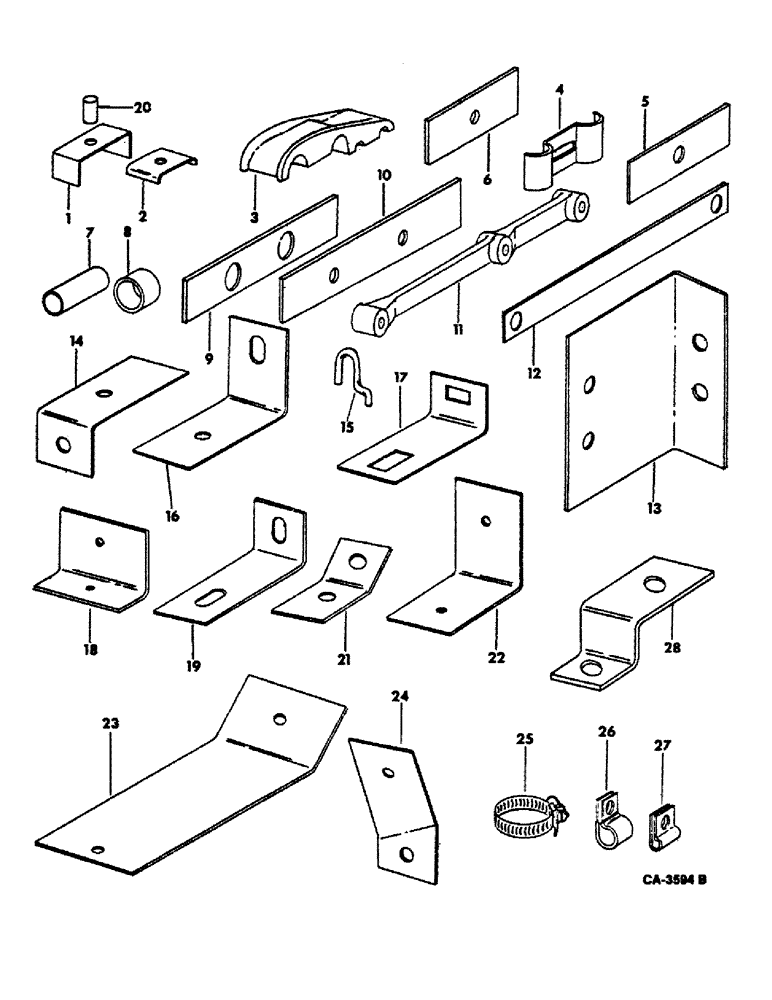

Запчасти Case IH 815 (10-01) - HYDRAULICS, HYDRAULIC FASTENERS (07) - HYDRAULICS

1

178816C1

CLIP

reel lift hose

1шт.

2

165601C1

CLAMP

hydraulic tube, for 5/8 OD tube

1шт.

2

165602C1

CLAMP

hydraulic tube, for 5/8 tube

1шт.

3

165603C1

CLAMP, hydrualic tube, for 1/4, 5/8, 3/4 tube

1шт.

4

157678C1

CLAMP

ground drive lower tube

1шт.

4

178984C1

CLAMP

ground drive lower tube

1шт.

5

157679C1

STRIP, hydraulic tube clamp rubber, for 1/2 in. OD tube

1шт.

5

157783C1

STRIP, hydraulic tube clamp rubber, for 1 in. OD tube

1шт.

6

573186R1

PLATE

STRIP, cooler to reservoir tube clamp backing

1шт.

7

163489C1

STRIP

RING, hydraulic tube clamp rubber, for 1/4 OD tube

1шт.

7

163492C1

RUBBER INSULATOR

RING, hydraulic tube clamp rubber, for 5/8 OD tube

1шт.

7

163493C1

STRIP,19.05mm ID x 25.4mm OD x 45.7mm L

RING, hydraulic tube clamp rubber, for 3/4 OD tube

1шт.

7

163491C1

RUBBER INSULATOR

RING, hydraulic tube, for 1/2 OD tube

1шт.

7

163490C1

RUBBER INSULATOR

RING, hydraulic tube, for 3/8 OD tube

1шт.

8

165722C1

SLEEVE

tube rubber

1шт.

9

150779C1

TUBE

STRAP, ground drive tube cushion

1шт.

10

150780C1

STRAP

ground drive tube cushion

1шт.

11

179206C1

STRAP

reel lift hose rubber tie down

1шт.

12

178815C1

STRAP

hose support RH

1шт.

13

178983C1

SUPPORT, ground drive lower tube

1шт.

14

178988C1

SUPPORT, oil cooler to reservoir tube

1шт.

14

178950C1

ANGLE

SUPPORT, header lift tube upper

1шт.

15

179207C1

HOOK

reel lift hose tie down strip

1шт.

16

179004C1

BRACKET, suction tube support, hydraulic reel drive

1шт.

17

165599C1

BRACKET, pressure upper tube support

1шт.

18

179205C1

BRACKET, priority tube support, hydraulic reel drive

1шт.

19

179000C1

BRACE, reel drive return support tube, hydraulic reel drive

1шт.

20

61851V

SPACER,1/4" Pipe x 3/4"

Std. pipe for reel lift hose clip 1/4" Pipe x 3/4"

1шт.

21

178960C1

BRACKET

steering rear tube support

1шт.

22

180671C1

SUPPORT, hydraulic bleed tube rear

1шт.

23

179247C1

BRACKET, hydrostatic tube

1шт.

24

179248C1

BRACKET, oil cooler to reservoir tube support

1шт.

25

333710R91

HOSE CLAMP,#16, 0.81/1.50 Type F Worm

SWITCH MOUNTING, suction hose

1шт.

25

279024R91

HOSE CLAMP,#24, 1.06/2.00 Type F Worm

CLAMP, header lift suction hose

1шт.

25

279038R91

HOSE CLAMP,#32, 1.56/2.50 Type F Worm

CLAMP, header lift suction hose

1шт.

25

279025R91

HOSE CLAMP,#06, .44/.78 Type F Worm

Steering return hose and swing valve return hose #06, .44/.78 Type F Worm

1шт.

25

122316R91

HOSE CLAMP,#12, 0.69/1.25 Type F Worm

CLAMP, reel drive return

1шт.

25

279024R91

HOSE CLAMP,#24, 1.06/2.00 Type F Worm

CLAMP, header lift suction hose

1шт.

26

567895R2

CLIP, hydraulic tube, insulated, for 5/8 OD tube

1шт.

27

573674R1

CLIP

hydraulic tube, for 1/4 OD tube

1шт.

28

196517C1

SUPPORT TUBE

SUPPORT, hydraulic tube steering

1шт.
