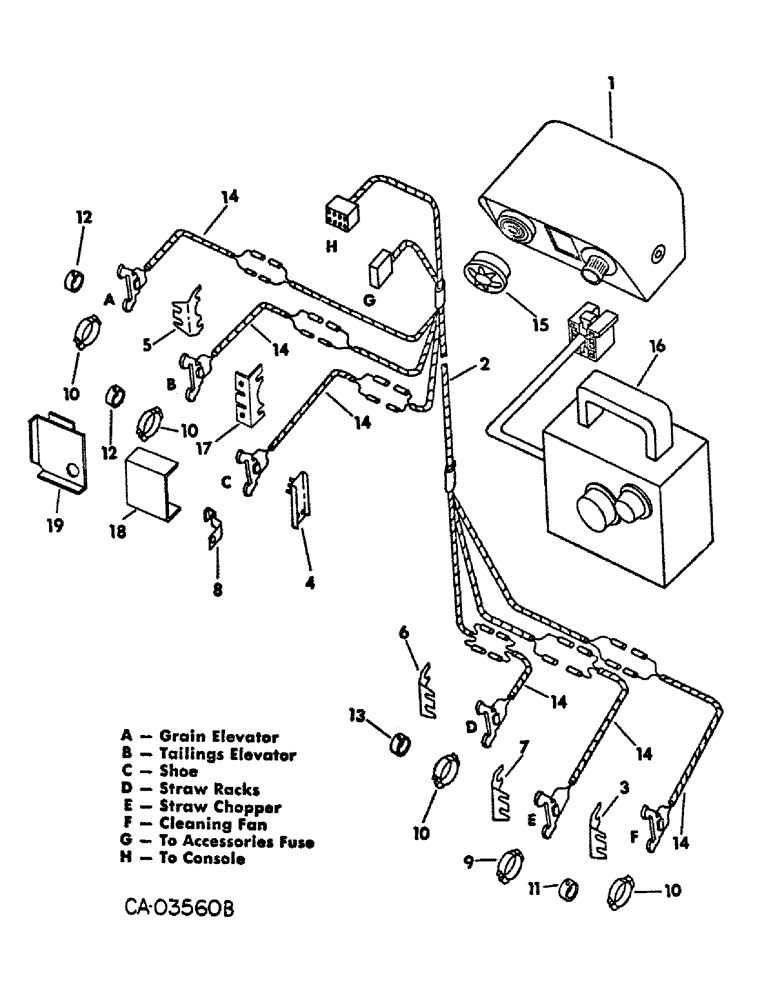

Запчасти Case IH 815 (08-22) - ELECTRICAL, DIGITAL READ OUT MONITOR (06) - ELECTRICAL

1

R178786C2

GAUGE

CONSOLE ASSY, control

1шт.

2

180643C1

HARNESS

wiring

1шт.

3

178792C1

BRACKET

fan sensor mounting

1шт.

4

178793C1

BRACKET

shoe sensor mounting

1шт.

5

178794C1

BRACKET

grain and tailings elevator sensor mounting

2шт.

6

178795C1

BRACKET

straw rack sensor mounting

1шт.

7

178796C1

BRACKET

straw chopper sensor mounting

1шт.

8

178798C1

MAGNET

ASSY, shoe sensor

1шт.

9

178799C1

CLAMP,44.45mm - 63.5mm

MAGNET ASSY, straw chopper sensor

1шт.

10

178800C1

CLAMP

ASSY, sensor for grain elevator, tailings elevator, and fan and straw racks

4шт.

10

180418C1

MAGNET ASSY, sensor dual magnet for grain elevator, for edible bean

1шт.

11

178802C1

COLLAR CLAMP

COLLAR, fan sensor

1шт.

12

482303R92

BALL BEARING,1.0005" ID x 52 mm OD x 0.84375"

COLLAR, grain and tailings, internal locking

2шт.

12

178804C1

COLLAR

grain and tailings, external locking

2шт.

13

178805C1

COLLAR

straw rack sensor

1шт.

14

178806C1

SWITCH

ASSY, reed

6шт.

15

178876C1

SUPPRESSOR

audible alarm

1шт.

16

178755C1

UNIT, demonstration test

1шт.

17

187615C2

BRACKET

SUPPORT, tailings elevator sensor mount

1шт.

18

187616C1

SUPPORT

ASSY, sensor

1шт.

23986R1

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1/2"

SCREW, SELF TAPPING, Hex Wash Hd, 1/4" x 1/2"

2шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

4шт.

19

187610C1

SUPPORT

ASSY, clean grain sensor

1шт.

23986R1

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1/2"

SCREW, SELF TAPPING, Hex Wash Hd, 1/4" x 1/2"

2шт.
