Запчасти Case IH 815 (08-17) - ELECTRICAL, CRANKING MOTOR, DELCO-REMY, COMBINE W/GASOLINE ENGINE, SERIAL NO. 19000 & BELOW (06) - ELECTRICAL

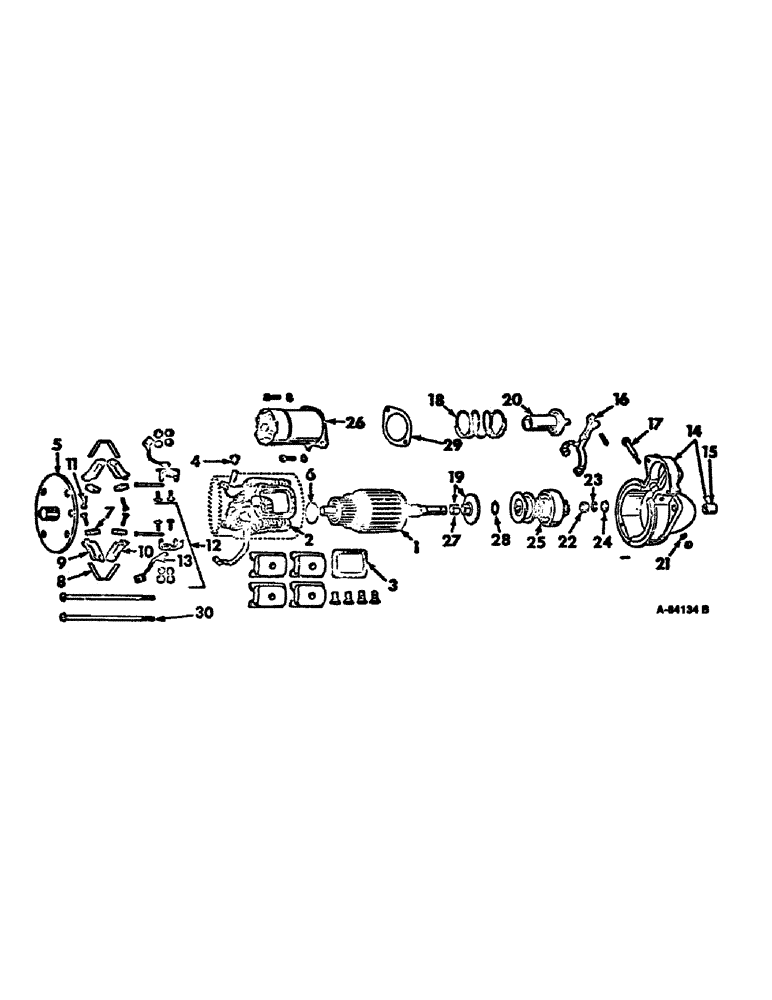

Схема запчастей Case IH 815 - (08-17) - ELECTRICAL, CRANKING MOTOR, DELCO-REMY, COMBINE W/GASOLINE ENGINE, SERIAL NO. 19000 & BELOW (06) - ELECTRICAL
11
21
30
24
19
9
18
14
7
4
20
8
29
1
22
25
6
13
15
2
5
16
3
17
27
23
28
12
26
10

Артикул

Название

Примечание

Количество

1108344

SPARE PART MOTOR ASSY, cranking, 396523R93, 12 volt

1шт.

87297332

REMAN-STARTER

Starter

1шт.

87297333

CORE-STARTER

Return Number

1шт.

104193A1R

REMAN-STARTER

Remanufactured Starter

1шт.

104193A1C

CORE-STARTER

Return Number

1шт.

180123

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5, Full Thd

SCREW, 3/8-16 x 1-1/8 C-Z hex-hd cap

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

1

1947353

FRAME

ARMATURE

1шт.

2

1943504

COIL

COIL ASSY, field, 4 coils

1шт.

3

1927853

FOAM INSULATION

INSULATION, field coil

4шт.

4

1966391

GROMMET

GROMMET, in field frame

1шт.

5

1928966

FRAME

FRAME, commutator end

1шт.

6

1914842

WASHER

WASHER, commutator end brake

1шт.

7

1906945

COMMUTATOR BRUSH

BRUSH

4шт.

8

1926622

VALVE SPRING

SPRING, brush

2шт.

9

1940477

HOLDER

HOLDER, ground brush

2шт.

10

1926618

HOLDER

HOLDER, insulated brush

2шт.

11

1967747

SCREW

SPARE PART SCREW, brush attaching

4шт.

12

1928015

BRACKET

PACKAGE, brush holder support

2шт.

13

1926605

ELECTRICAL WIRE

WIRE LEAD, brush ground

2шт.

14

1966914

HOUSING

HOUSING, drive

1шт.

15

1862383

BUSHING

BRUSHING, drive end

1шт.

16

1951567

LEVER

LEVER, shift

1шт.

17

1814529

STUD, shift lever

1шт.

18

1958679

SPRING

SPRING, plunger return

1шт.

19

820149

PLATE

PLATE, center bearing

1шт.

20

1941113

PLUNGER

PLUNGER, solenoid switch

1шт.

21

1953479

WASHER, shift lever stud sealing lock

1шт.

22

1928021

COLLAR

COLLAR, drive end pinion stop

1шт.

23

1928022

SNAP RING

RING, drive end pinion stop retainer

1шт.

24

1928023

WASHER

WASHER, drive end thrust

1шт.

25

1851427

DRIVE

DRIVE, motor, will work for 1968705

1шт.

26

1114356

SOLENOID,Starter

SWITCH, solenoid

1шт.

120622

NUT,#8-32

NUT, #8-32

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

NUT, Jam, 3/8"-16, G5

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

120381

WASHER

WASHER, 3/8 C-Z light lock

1шт.

27

820148

BUSHING

BUSHING, center bearing

1шт.

28

NLS

NO LONGER SERVICED

brake, between center brg & motor drive

1шт.

29

1952427

GASKET

GASKET, between switch and housing

1шт.

30

A41342

BOLT

BOLT, thru

2шт.

Выбрано товаров: 41
