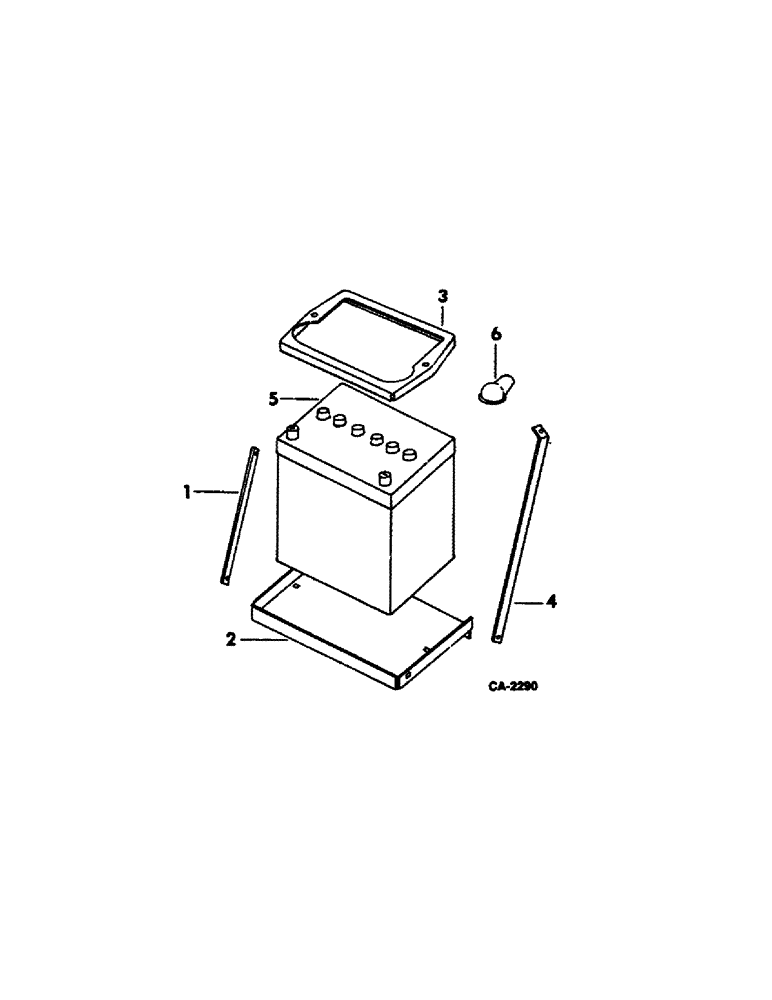

Запчасти Case IH 815 (08-13) - ELECTRICAL, BATTERY, CLAMP, PLATE AND STRAP, GASOLINE ENGINE (06) - ELECTRICAL

1

166663C1

STRAP, battery support front

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 znd hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

2

179101C1

PLATE, battery support

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

3

72924R1

CLAMP

battery hold down

1шт.

22394R1

BOLT,Hex, 5/16"-18 x 9 1/2", G2

5/16 x 9-1/2 znd hex-hd mach

2шт.

935736R1

NUT, WING

NUT, 5/16 znd wing

2шт.

Q397

WASHER

11/32 x 3/4 x 16 ga

2шт.

4

178456C1

STRAP, battery support rear

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 znd hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

5

395587R1

BATTERY 12-VOLT, 2431X

1шт.

6

364910R1

BOOT

battery terminal cover rubber

1шт.
