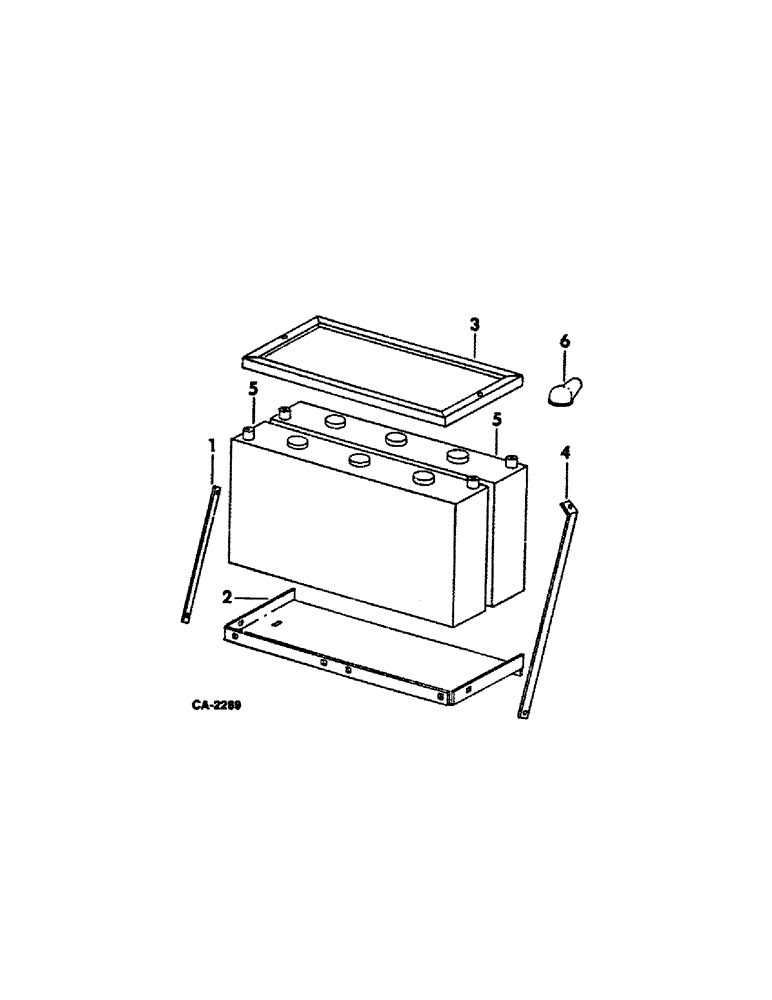

Запчасти Case IH 815 (08-13[1]) - ELECTRICAL, BATTERY, CLAMP, PLATE AND STRAP, DIESEL ENGINE (06) - ELECTRICAL

1

166663C1

STRAP, battery support front

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

2

166545C2

PLATE, battery support

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 sq-nk crg

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

3

178457C1

CLAMP, battery hold-down

1шт.

22394R1

BOLT,Hex, 5/16"-18 x 9 1/2", G2

5/16 x 9-1/2 hex-hd mach

2шт.

935736R1

NUT, WING

NUT, 5/16 wing

2шт.

Q397

WASHER

11/32 x 3/4 x 11 ga

2шт.

4

178458C1

STRAP, battery support rear

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

5

BATTERY 6-VOLT, 204 amp hrs prestolite 1419X

1шт.

6

364910R1

BOOT

battery terminal cover rubber

1шт.
