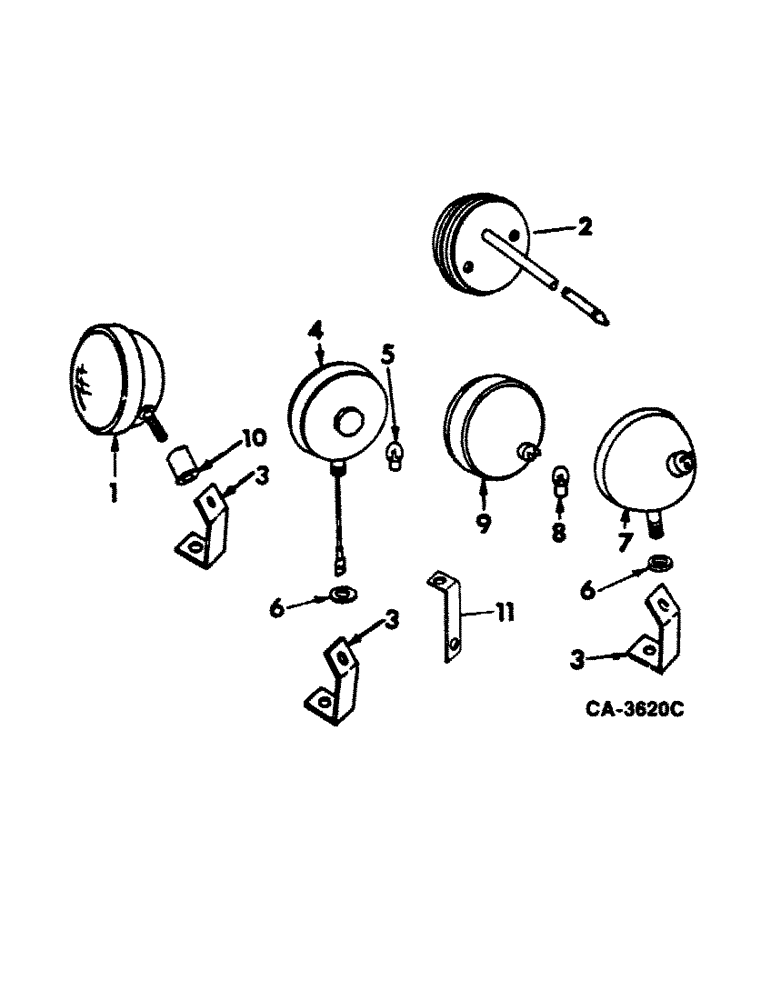

Запчасти Case IH 815 (08-12) - ELECTRICAL, LIGHTS (06) - ELECTRICAL

1

391005R91

HEADLIGHT

LIGHT ASSY, (1) used as tailings distributor auger cover RH extension, (1) used as grain tank front LH, (1) used as grain tank rear LH, (1) used as separator hood top RH, (1) used as cab LH front, (1) used as cab RH front

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

5шт.

178373R1

WASHER

17/32 x 1 x 16 ga

5шт.

120384

WASHER,1/2"

LOCK, 1/2"

5шт.

2

166827C91

LIGHT

warning

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

2шт.

436732

SCREW,Slotted Pan Hd, #10-24 x 1/2"

no. 10-24 x 1/2 slt-pan-hd

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

3

561915R1

BRACKET

light and flasher

9шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 hex-hd mach

9шт.

120377

NUT,3/8" - 16, Gr 5

9шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

9шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 type 1

1шт.

4

67538C92

HEADLIGHT

LIGHT ASSY, flasher, includes ref. no. 5

2шт.

120371

NUT,1/2"-20, G5

2шт.

5

9417886

BULB, no. 1156

2шт.

6

394262R1

WASHER

flasher light rubber

2шт.

7

387729R92

LIGHT ASSY.

TAIL LIGHT ASSY, includes ref. nos. 8 and 9

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

8

455490

BULB,C-6, #1003, 12V, .94W

tail light no. 1003-15 CP

1шт.

9

371461R91

LENS

UNIT ASSY, sealed beam tail light

1шт.

10

49069D

SPACER

lamp

2шт.
