Запчасти Case IH 815 (08-09) - ELECTRICAL, WIRING DIAGRAM, DIESEL ENGINE, SERIAL NO. 19001 AND ABOVE (06) - ELECTRICAL

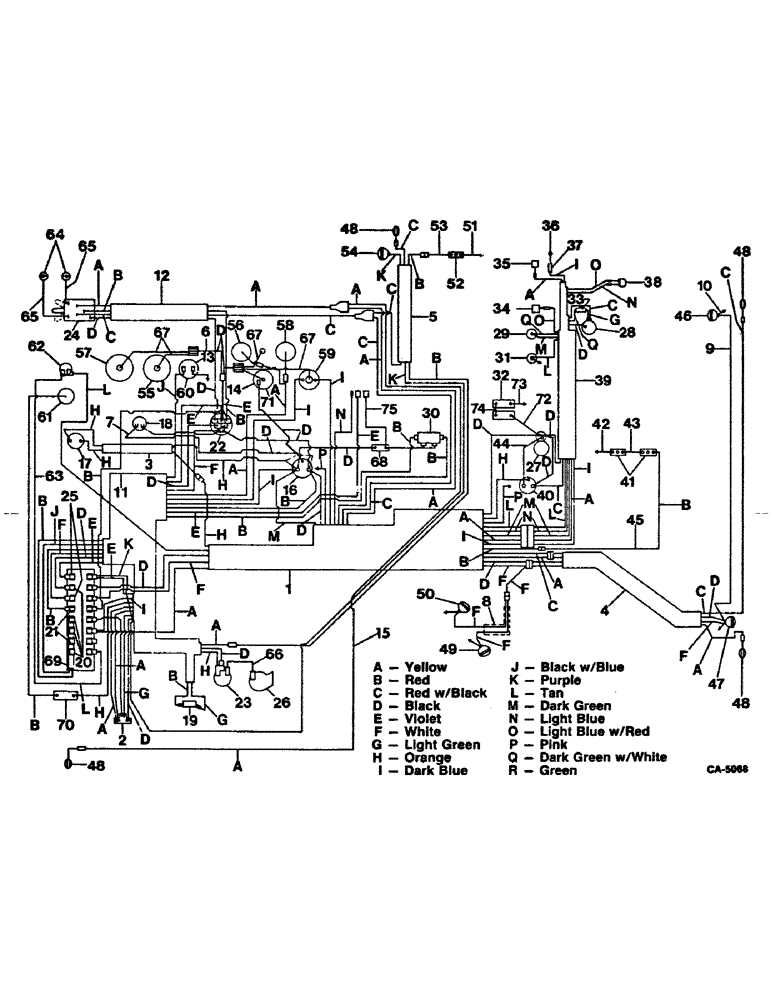

Схема запчастей Case IH 815 - (08-09) - ELECTRICAL, WIRING DIAGRAM, DIESEL ENGINE, SERIAL NO. 19001 AND ABOVE (06) - ELECTRICAL
75
1
48
42
4
2
13
72
70
22
62
56
66
40
9
52
9
37
60
30
54
43
41
31
51
65
67
48
68
50
24
32
45
48
12
25
16
20
36
4
74
67
29
27
48
44
59
67
14
3
39
69
65
71
18
61
23
10
63
53
73
55
17
57
26
19
11
8
38
58
64
46
5
47
49
21
34
15
28
35

Артикул

Название

Примечание

Количество

1

195662C1

HARNESS

ASSY, main center

1шт.

2

241120R91

RELAY

ASSY, warning buzzer

1шт.

3

178877C1

HARNESS ASSY, starting switch

1шт.

4

195657C1

SHAFT

HARNESS ASSY, tail light

1шт.

5

195656C1

HARNESS ASSY, RH lights and elevator clutch

1шт.

6

165668C91

CABLE ASSY, instrument light

1шт.

7

178879C1

HARNESS ASSY, key, Serial Range: switch-voltmeter

1шт.

8

195661C1

HARNESS ASSY, grain tank light

1шт.

9

165669C91

CABLE, rear lighting cable, 94 inches

1шт.

10

196524C1

CABLE

rear light ground, 10 inches

1шт.

11

195663C2

HARNESS

ASSY, main front

1шт.

12

195658C2

HARNESS ASSY, flasher switch to light switch

1шт.

13

195786C1

CABLE, hourmeter ground

1шт.

14

179102C1

HARNESS ASSY, voltage light socket

1шт.

15

195654C1

CABLE, front LH turn signal

1шт.

16

66581C3

SWITCH

magnetic start

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

2шт.

120376

NUT,5/16"-18, G5

2шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 slt-truss-hd

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

17

366317R93

SWITCH

ASSY, push button starting

1шт.

17

366317R93GV

CONTROL

Value, Control Switch

1шт.

120611

NUT,#10 - 32

no. 10-32 square

2шт.

436750

SCREW,Slotted Pan Hd, #10-32 x 1/2"

no. 10-36 x 1/2 pan-hd mach

2шт.

436695

SCREW,Slotted Pan Hd, #8-32 x 1/2"

no. 8-32 x 1/2 pan-hd mach

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

607893R1

WASHER

13/16 x 1/2 x 16 ga

2шт.

18

403562R2

SWITCH

ASSY, ignition

1шт.

365502R1

NUT

13/16 hex

2шт.

NLS

NO LONGER SERVICED

LOCK, Int Tooth, 13/16"

2шт.

131313C1

KEY, IGNITION

1шт.

19

633643R91

SWITCH

ASSY, parking brake warning

1шт.

134530

NUT,Hex, #6 - 32

2шт.

436668

SCREW, no. 6-32 x 7/8 slt-pan-hd

2шт.

492-11006

LOCK WASHER,#6

Lock, #6

2шт.

68107H

LOCK NUT

parking brake warning light switch

1шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga

1шт.

166817R1

WASHER, parking warning light

1шт.

20

117142

FUSE,10 Amp, Type 3AG

cartridge type 10 amp

4шт.

21

432644

FUSE,20 Amp, Type SFE

cartridge type 20 amp

2шт.

22

107200C2

LIGHT SWITCH

SWITCH ASSY, light

1шт.

23

394132R91

FLASHER UNIT

FLASHER, horn signal

1шт.

24

131066C91

SWITCH

ASSY, turn signal

1шт.

25

455844

FUSE,25 Amp, Type 3AG

cartridge type 25 amp

2шт.

26

166166R91

HORN

ASSY, elevator slip clutch

1шт.

27

MOTOR, cranking, refer to this group under cranking motor for unit listing

1шт.

28

GENERATOR-ALTERNATOR, refer to this group under generator- alternator for unit listing

1шт.

29

PUMP ASSY, fuel injection, refer to section J catalog ENG-5 under fuel injection pump for unit listing

1шт.

30

921926C1

SWITCH

RELAY, straw walker warning horn

1шт.

31

SOLENOID ASSY, ether starting, refer to group 12 under ether starting for unit listing

1шт.

32

BATTERY, 6 volt, refer to this group under battery for unit listing

2шт.

33

548239R2

RECTIFIER

DIODE ASSY

1шт.

34

COMPRESSOR, air conditioner, refer to group 13 under air conditioning for unit listing

1шт.

35

PUMP ASSY, fuel, refer to group 12 under fuel tank and pump for unit listing

1шт.

36

TANK, fuel, refer to group 12 under fuel tank and pump for unit listing

1шт.

37

117142

FUSE,10 Amp, Type 3AG

cartridge type 10 amp

1шт.

38

THERMOSTAT ASSY, 170 degrees, refer to group 13 under operators cab air conditioning for unit listing

1шт.

39

60334C1

HARNESS

ASSY, engine

1шт.

40

SWITCH, magnetic, refer to magnetic switch group 8 for unit listing

1шт.

41

SWITCH ASSY, straw chopper warning horn, refer to group 20 under straw chopper rotor and deflector for unit listing

1шт.

42

CABLE, mircro switch to ground, refer to group 20 under straw chopper rotor and deflectors for unit listing

1шт.

43

CABLE, straw chopper front to rear micro switch, refer to group 20 under straw chopper rotor and deflectors for unit listing

1шт.

44

178882C1

CABLE, rear magnetic switch to cranking motor S terminal 11 inches

1шт.

45

CABLE, engine to straw chopper to micro switch, refer to group 20 under straw chopper rotor and deflector for unit listing

1шт.

46

LIGHT ASSY, separator hood top rear RH, refer to group 8 under lights for unit listing

1шт.

47

TAIL LIGHT ASSY, refer to group 8 under lights for unit listing

1шт.

48

LIGHT ASSY, flasher, refer to group 8 listed under lights for unit listing

4шт.

49

LIGHT ASSY, grain tank rear LH, refer to group 8 under lights for unit listing

1шт.

50

LIGHT ASSY, grain tank front LH, refer to group 8 under lights for unit listing

1шт.

51

SWITCH ASSY, elevator slip clutch alarm, refer to group 25 under tailings elevator for unit listing

1шт.

52

CABLE ASSY, elevator clutch ground, use 4 in. of 14 ga wire from 100 ft roll marked 995055R1, terminal and one 54775R2 terminal

1шт.

53

195655C1

CABLE ASSY, elevator clutch, 120 in.

1шт.

54

LIGHT ASSY, tailing distributor auger cover RH extension, refer to group 8 under lights for unit listing

1шт.

55

INDICATOR ASSY, cylinder speed, refer to this group under gauges and indicators for unit listing

1шт.

56

GAUGE ASSY, water temperature, refer to group 11 under gauges and indicators for unit listing

1шт.

57

SPEEDOMETER ASSY, refer to group 11 under gauges and indicators for unit listing

1шт.

58

GAUGE ASSY, oil pressure, refer to group 11 under gauges and indicators for unit listing

1шт.

59

GAUGE ASSY, fuel, refer to group 11 under gauges and indicators for unit listing

1шт.

60

HOURMETER 12-VOLT, refer to group 11 under gauges and indicators for unit listing

1шт.

61

LIGHT, warning, refer to group 8 under lights for unit listing

1шт.

62

394074R93

SWITCH ASSY, push button ether

1шт.

63

178883C1

CABLE ASSY, ether starting switch to fuse panel

1шт.

64

HOLDER, indicator light flasher, refer to group 11 under turn signals for unit listing

2шт.

65

SOCKET ASSY, indicators lights, refer to group 11 under turn signals for unit listing

2шт.

66

178880C1

CABLE ASSY, horn to horn flasher

1шт.

67

SOCKET ASSY, refer to group 11 under gauges and indicators for unit listing

1шт.

68

173906C1

BREAKER

CIRCUIT BREAKER

1шт.

69

BLOCK, fuse panel, refer to group 11 under gauges and indicators for unit listing

1шт.

70

303236R91

INDICATOR LIGHT

FLASHER ASSY, warning light

1шт.

71

GAUGE ASSY, voltmeter, refer to group 11 under gauges and indicators for unit listing

1шт.

72

179028C2

CABLE

ASSY, battery 72 inch

1шт.

73

178686C1

CABLE

battery to ground 75 inches

1шт.

74

259171R91

CABLE

ASSY, battery to battery 7.5 in.

1шт.

75

180218C1

CABLE, circuit, Serial Range: breaker-cab

1шт.
