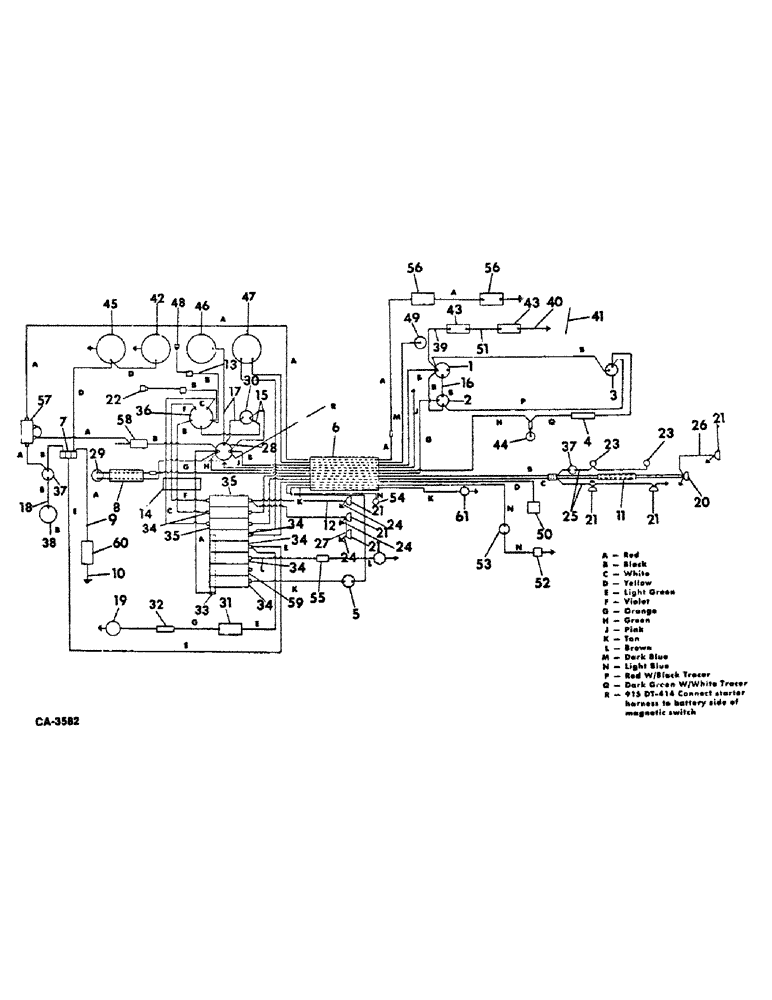

Запчасти Case IH 815 (08-06) - ELECTRICAL, WIRING DIAGRAM, DIESEL ENGINE, SERIAL NO. 19000 AND BELOW (06) - ELECTRICAL

1

MOTOR ASSY, cranking, refer to this group under cranking motor for unit listing

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

120622

NUT,#8-32

1шт.

180123

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5, Full Thd

SCREW, 3/8 x 1-1/8 hex-hd cap

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

3шт.

2

121613C1

IGNITION SWITCH

SWITCH, magnetic

1шт.

120376

NUT,5/16"-18, G5

2шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 hex-hd whiz lock

2шт.

161108C1

BOLT,Hex Serr, 1/4" - 20 x 1/2"

SCREW, 1/4 x 1/2 hex-hd whiz lock

2шт.

493-41033

LOCK WASHER,0.33" ID x 0.61" OD x 0.03" Thk

WASHER, 5/16 ext-tooth lock

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

60620C1

BRACKET, switch mounting

1шт.

3

ALTERNATOR-GENERATOR, refer to this group under alternator- generator, drive and mountings for unit listing

1шт.

4

548239R2

RECTIFIER

DIODE ASSY

1шт.

5

395074R93

SWITCH

ASSY, push button ether

1шт.

6

178681C1

HARNESS

ASSY, main center

1шт.

7

241120R91

RELAY

ASSY, warning buzzer

1шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 hex-hd mach

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

8

178877C1

HARNESS ASSY, starting switch

1шт.

9

167411C1

CABLE ASSY, elevator clutch

1шт.

10

CABLE ASSY, feeder clutch ground, use 4 in. of 14 ga wire from 100 ft roll marked 995055R1 and one 547752R1 terminal

1шт.

11

178886C1

HARNESS ASSY, tail lamp cable

1шт.

12

178888C1

HARNESS ASSY, RH front head light

1шт.

13

165668C91

CABLE ASSY, instrument light

1шт.

14

178684C1

HARNESS ASSY, main front

1шт.

15

178878C1

HARNESS ASSY, key switch

1шт.

16

178882C1

CABLE, magnetic switch to cranking motor, 11 in.

1шт.

17

178879C1

HARNESS ASSY, key, Serial Range: switch-voltmeter

1шт.

18

178380C1

CABLE, flasher to horn, 6 in.

1шт.

19

166827C91

LIGHT

warning

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

2шт.

436732

SCREW,Slotted Pan Hd, #10-24 x 1/2"

no. 10 x 1/2 slt-pan-hd

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

20

LAMP ASSY, tail, refer to this group under lights for unit listing

1шт.

21

LAMP ASSY, refer to this group under lights for unit listing

6шт.

22

SOCKET ASSY, instrument light, refer to group 11 under gauges and indicators for unit listing

4шт.

23

LIGHT ASSY, flasher warning, refer to this group under lights for unit listing

2шт.

24

178890C1

CABLE

headlight to ground, 6 in.

3шт.

25

178885C1

HARNESS ASSY, grain tank light

1шт.

26

165669C91

CABLE, rear light, 94 in.

1шт.

27

167412C1

CABLE

RH front cab light

1шт.

28

66581C3

SWITCH

magnetic start

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

2шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 slt-truss-hd

2шт.

29

366317R93

SWITCH

ASSY, push button starting

1шт.

29

366317R93GV

CONTROL

Value, Control Switch

1шт.

120611

NUT,#10 - 32

10-32 square

2шт.

436695

SCREW,Slotted Pan Hd, #8-32 x 1/2"

8-32 x 1/2 pan-hd mach

2шт.

436750

SCREW,Slotted Pan Hd, #10-32 x 1/2"

10-32 x 1/2 pan-hd mach

2шт.

80684

LOCK WASHER,4.9mm ID x 8.48mm OD x 1.19mm Thk

WASHER, LOCK, #10

2шт.

607893R1

WASHER

13-16 int-tooth lock

2шт.

30

379594R91

SWITCH

ASSY, ignition, Serial Range: subs-403562R2

1шт.

365502R1

NUT

13-16-20 hex

2шт.

125793

LOCK, Int Tooth, 13/16"

2шт.

31

633643R91

SWITCH

ASSY, paring brake warning light

1шт.

134530

NUT,Hex, #6 - 32

2шт.

68107H

LOCK NUT

parking brake warning horn switch

1шт.

131044

LOCK WASHER

Lock, #6

2шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga

1шт.

166817C1

WASHER

parking brake warning light

1шт.

32

303236R91

INDICATOR LIGHT

FLASHER ASSY, warning light signal

1шт.

32

702093C1

CABLE TIE

CLAMP, warning horn signal flasher

1шт.

33

PANEL ASSY, fuse, refer to group 11 under gauges and indicator for unit listing

1шт.

34

117142

FUSE,10 Amp, Type 3AG

cartridge type 10 amp

5шт.

35

455844

FUSE,25 Amp, Type 3AG

cartridge type 25 amp

2шт.

36

166380C92

SWITCH

ASSY, light

1шт.

37

394132R91

FLASHER UNIT

FLASHER ASSY, horn warning

1шт.

37

394133R1

FASTENER

CLAMP, flasher mount

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

37

394134R1

SEAL

HOSE, flasher mount

1шт.

38

166166R91

HORN

ASSY, elevator slip clutch

1шт.

39

179028C1

CABLE

ASSY, battery, 72 in.

1шт.

40

178686C1

CABLE

ASSY, battery to ground, 75 in.

1шт.

41

158477C91

CABLE

ASSY, engine to ground, 18 in.

1шт.

42

GAUGE ASSY, water temperature, refer to group 11 under gauges and indicators for unit listing

1шт.

43

BATTERY 6-VOLT, refer this group under battery, clamp, plate and strap for unit listing

1шт.

44

SOLENOID, injection pump shut-off, refer to ENG-5 parts catalog section E for unit listing

1шт.

45

GAUGE ASSY, oil pressure, refer to group 11 under gauges and indicator for unit listing

1шт.

46

GAUGE ASSY, voltmeter, refer to group 11 under gauges and indicator for unit listing

1шт.

47

GAUGE ASSY, fuel, refer to group 11 under gauges and indicator for unit listing

1шт.

48

SOCKET ASSY, refer to group 11 under gauges and indicator for unit listing

1шт.

49

SENDING UNIT ASSY, fuel gauge, refer to group 12 under fuel tank for unit listing

1шт.

50

PUMP ASSY, fuel, refer to group 12 under fuel tank for unit listing

1шт.

51

259171R91

CABLE

ASSY, Serial Range: battery-battery

1шт.

52

CLUTCH ASSY, compressor, refer to group 13 under air conditioning compressor and condenser for unit listing

1шт.

53

THERMOSTAT ASSY, 170 degrees, refer to group 13 under air conditioning compressor and condenser for unit listing

1шт.

54

SWITCH ASSY, thermostat, refer to group 13 under air conditioning compressor and condenser for unit listing

1шт.

55

SWITCH ASSY, feeder throw-out, refer to group 33 under feeder chain drive and electric clutch for unit listing

1шт.

56

SWITCH ASSY, warning horn micro, refer to group 20 under straw chopper rotor for unit listing

2шт.

57

RELAY ASSY, straw chopper, refer to group 20 under straw chopper rotor for unit listing

1шт.

58

CIRCUIT BREAKER CAB 30-AMP, refer to group 13 under operators cab blower for unit listing

1шт.

59

432644

FUSE,20 Amp, Type SFE

cartridge type 20-amp

1шт.

60

SWITCH ASSY, elevator slip clutch alarm, refer to group 25 under tailings elevator for unit listing

1шт.

61

SOLENOID, ether injection, refer to group 12 under ether starting solenoid starting for unit listing

1шт.

60334C1

HARNESS

ASSY, power unit, engine, not illustrated

1шт.
