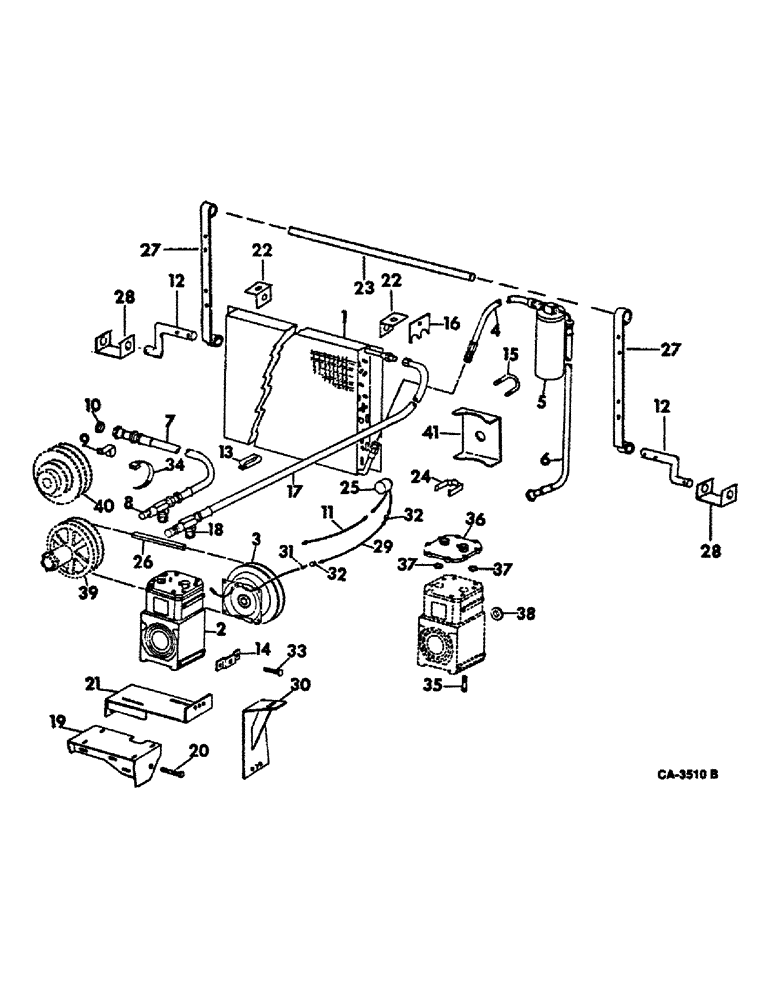

Запчасти Case IH 815 (13-17) - SUPERSTRUCTURE, OPERATORS CAB, AIR CONDITIONER (05) - SUPERSTRUCTURE

1

165130C91

COIL

COIL ASSY, air conditioning condenser

1шт.

2

527541R92

AIRCOND. COMPRESSOR

COMPRESSOR ASSY, air conditioning, includes ref. nos. 35 thru 38 and kit assy 302810R91, 527624R91 and 527732R91

1шт.

2

417888C93

AIRCOND. COMPRESSOR

Compressor Assy., A/C

1шт.

2

1924004C2

REMAN-A/C COMPRESSOR

Remanufactured COMPRESSOR

1шт.

2

1924005C1

CORE-A/C COMPRESSOR

Return Number

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

BOLT, 3/8 x 3/4 znd hex-hd cap

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

21403R1

WASHER

WASHER, 13/32 x 1 x 11 ga znd

4шт.

3

165129C91

CLUTCH

CLUTCH ASSY, compressor

1шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

BOLT, 1/4 x 1/2 C-Z hex-hd mach

4шт.

181610

SCREW,Hex, 5/16" - 24 x 1 1/4", Gr 5

SCREW, 5/16-24 x 1-1/4 C-Z hex-hd cap

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

22859R1

WASHER

WASHER, 11/32 x 3/4 x 7 ga C-Z

1шт.

4

167888C1

HOSE ASSY.

HOSE ASSY, suction, 16 in.

1шт.

5

175254C1

TANK

DEHYDRATOR ASSY, receiver

1шт.

6

171739C2

HOSE ASSY.

HOSE ASSY, discharge, 202 in.

1шт.

7

171738C1

HOSE

HOSE ASSY, 188 in.

1шт.

8

938196R91

VALVE

VALVE ASSY, valve assy, service, gasoline engine

1шт.

8

175086C1

LOCK VALVE

VALVE ASSY, service, diesel engine

1шт.

9

394271R1

CLIP

CLIP, cab to compressor hose

1шт.

10

142350

GROMMET,7/8" ID x 1 5/8" x .125", Diag Cut

GROMMET, 7/8 ID rubber

2шт.

11

CABLE, thermostat to cab lead wire use 30 in. of 14 ga wire from 100 ft roll marked 995055R1 and 2-46894H, terminals

1шт.

12

177835C1

SPARE PART ROD, condensor pivot link

2шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

6шт.

619855R1

WASHER

WASHER, 11/32 x 3/4 x 16 ga znd

6шт.

13

154695C1

CLAMP

CLAMP, cab to compressor hose

5шт.

14

165125C1

SPARE PART STRAP, compressor tightener, gasoline engine

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex-hd mach

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

15

165164C1

BOLT

SPARE PART BOLT, receiver dryer filter U

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

NUT, 1/4"-20, G5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

16

159940C1

BAR

COVER, compressor hose opening

2шт.

178974

SCREW,Sl Pan Hd, 1/4" - 14 x 1/2"

SCREW, 1/4 x 1/2 C-Z slt-pan-hd tap

2шт.

17

159930C91

A/C HOSE,0.41" ID x 48.00"

Service Valve To Coil, Gasoline Engine

1шт.

17

174358C1

HOSE ASSY.

HOSE ASSY, service valve to coil, 64 in., diesel engine

1шт.

18

938197R91

LOCK VALVE

VALVE ASSY, service, gasoline engine

1шт.

18

399419R1

VALVE

VALVE ASSY, service, diesel engine

1шт.

19

175754C2

BRACKET

BRACKET ASSY, compressor mount, diesel engine

1шт.

18785R1

BOLT,Hex, 3/8"-16 x 3", G2

BOLT, 3/8 x 3 C-Z hex-hd mach

3шт.

120377

NUT,3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

NUT, Jam, 3/8"-16, G5

1шт.

26257R1

SET SCREW

SCREW, 3/8 x 3 znd sq-hd cone pt set

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

5шт.

20

26257R1

SET SCREW

BOLT, compressor mounting bracket adjusting, diesel engine

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

NUT, Jam, 3/8"-16, G5

1шт.

21

177837C1

SPARE PART BRACKET ASSY, compressor mount, gasoline engine

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

BOLT, 3/8 x 1-1/4 C-Z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

22

177836C1

SPARE PART STRAP, condenser pivoting

2шт.

23

179008C1

SPARE PART ROD, condenser pivot

1шт.

112726

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

2шт.

24

155482C1

CLIP

CLIP, thermostat

1шт.

25

155491C91

THERMOSTAT

THERMOSTAT ASSY, 170 deg

1шт.

26

167031C2

V-BELT,0.50" W x 51.23" L

V-BELT, , Compressor Drive, Gasoline Engine 0.50" W x 51.23" L

1шт.

26

65337C2

V-BELT,0.50" W x 37.63" L

Compressor drive, OC, Diesel engine

1шт.

27

177833C1

SPARE PART STRAP, condensor mounting

2шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

NUT, 5/16 C-Z flange lock

6шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

SCREW, 1/4 x 1/2 C-Z slt-truss-hd

6шт.

28

177834C1

SPARE PART STRAP, condensor pivot support

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

NUT, 5/16 C-Z flange lock

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

SCREW, 5/16 x 3/4 slt-truss- hd

2шт.

29

CABLE, thermostat to clutch, use 30 in. of 14 ga wire from 100 ft. roll marked 995055R1 and 2-46894H, terminals

1шт.

30

177839C1

SPARE PART SUPPORT ASSY, compressor

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

BOLT, 5/16 x 1 C-Z hex-hd mach

3шт.

120376

NUT,5/16"-18, G5

NUT, 5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

619855R1

WASHER

WASHER, 11/32 x 3/4 x 16 ga C-Z

1шт.

31

46894H

WIRE CONNECTOR,14 - 16 SAE

TERMINAL, compressor clutch wire

1шт.

32

46893H

CONNECTION

CONNECTOR, cable snap in

4шт.

33

166048C1

SPARE PART BOLT, compressor draw

1шт.

120377

NUT,3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

34

702093C1

CABLE TIE

CABLE STRAP STRAP, compressor hose ty (used as required)

6шт.

35

527730R1

SPARE PART SCREW, 5/16 x 1-3/8 x 12-pt hd cap

4шт.

36

527731R1

SPARE PART CYLINDER HEAD ROTALOCK

1шт.

37

527733R1

GASKET

GASKET, rotalock

2шт.

38

406838R1

SPARE PART FLINGER, dust cap

1шт.

39

401184R1

SPARE PART PULLEY, water pump and compressor driven, gasoline engine

1шт.

40

537071R1

PULLEY

PULLEY, water pump generator and compressor drive, diesel engine

1шт.

41

165166C1

SPARE PART BRACKET, receiver dryer filter

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

SCREW, 5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

NUT, 5/16 flange lock

1шт.

527732R91

SPARE PART KIT, valve plate

1шт.

302810R91

KIT, compressor gasket

1шт.

527624R91

SEAL KIT

KIT, seal

1шт.
