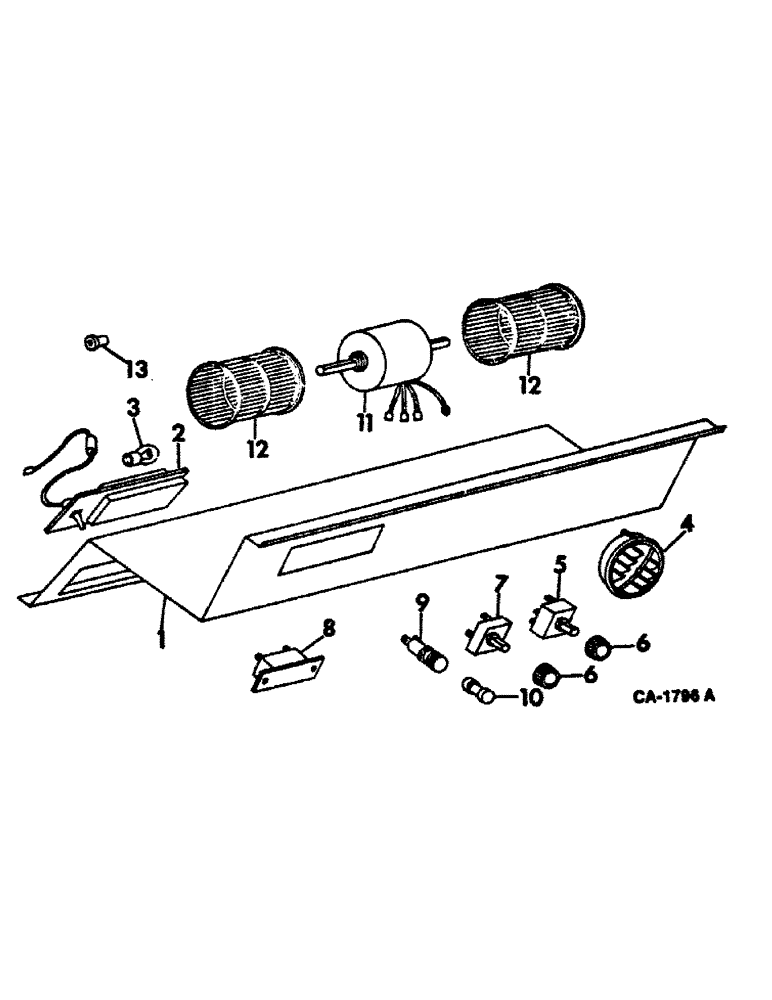

Запчасти Case IH 815 (13-13) - SUPERSTRUCTURE, OPERATORS CAB, BLOWER (05) - SUPERSTRUCTURE

175576C91

BLOWER

ASSY, includes ref. nos. 11 and 12

1шт.

1

WRAPPER ASSY, blower, (not serviced separately)

1шт.

2

173907C1

LIGHT ASSY, dome

1шт.

3

455490

BULB,C-6, #1003, 12V, .94W

LAMP, dome light

1шт.

4

173913C1

DEFLECTOR

LOUVER ASSY, pressurizer

6шт.

5

168822C2

SWITCH

blower

1шт.

6

200860C1

KNOB

blower and light switches

2шт.

7

168251C1

SWITCH

light

1шт.

8

173906C1

BREAKER

CIRCUIT BREAKER, cab 30 amp

1шт.

120611

NUT,#10 - 32

no. 10-32 square

2шт.

436750

SCREW,Slotted Pan Hd, #10-32 x 1/2"

no. 10-32 x 1/2 slt-pan-hd

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

9

376852R91

HOUSING

HOLDER ASSY, fuse

1шт.

10

117142

FUSE,10 Amp, Type 3AG

cartridge type 10 amp

1шт.

11

175577C1

MOTOR

blower

1шт.

12

174922C1

RIM

WHEEL, blower fan, counterclockwise rotation

1шт.

12

175310C1

RIM

WHEEL, blower fan, clockwise rotation

1шт.

13

175578C1

INSULATOR

RETAINER, wheel

8шт.
