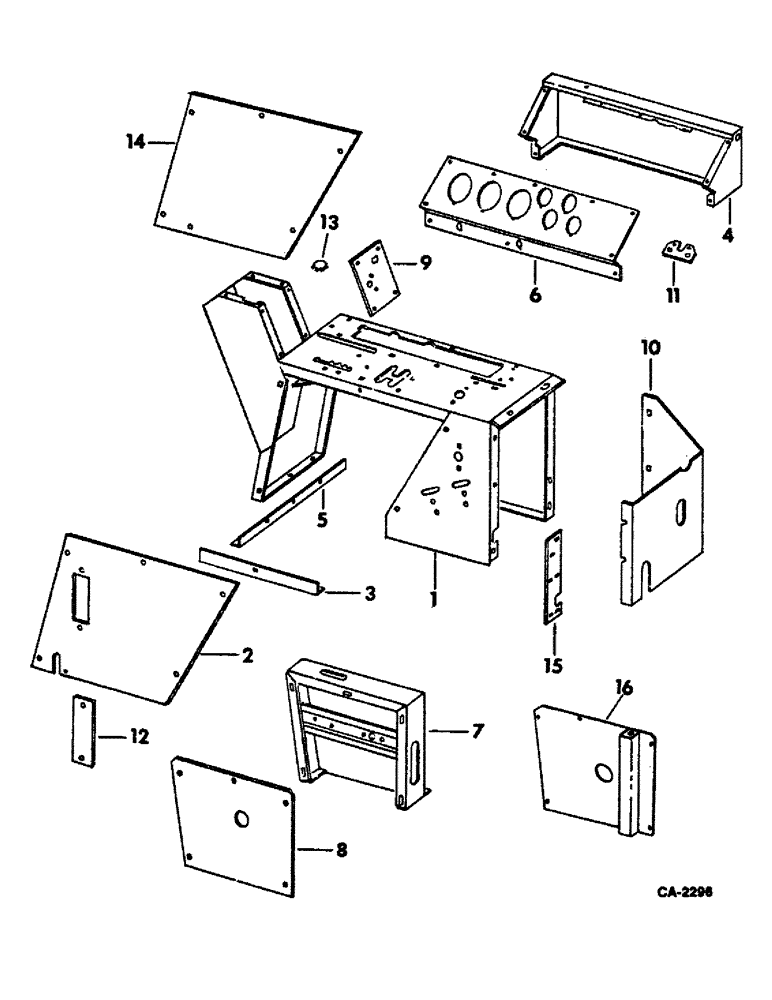

Запчасти Case IH 815 (13-04) - SUPERSTRUCTURE, OPERATORS CONSOLE (05) - SUPERSTRUCTURE

1

178390C2

CONSOLE ASSY, operator control

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 sq-nk crg

7шт.

120376

NUT,5/16"-18, G5

7шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

7шт.

2

168249C21

SIDE ASSY, control console LH

1шт.

391426R1

NUT

1/4-20 speed grip

5шт.

453049

SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"

1/4 x 3/4 C-Z slt-pan-hd mach

5шт.

3

164656C2

CLIP, operator control console side LH

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

4

164867C91

PANEL ASSY, instrument

1шт.

12653R1

BOLT (SPREADER),Short NK, 1/4"-20 x 3/4", G2

BOLT, CARRIAGE, Short NK, 1/4"-20 x 3/4", G2

5шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

5шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

5шт.

5

164871C2

CLIP, panel instrument lower

1шт.

12653R1

BOLT (SPREADER),Short NK, 1/4"-20 x 3/4", G2

BOLT, CARRIAGE, Short NK, 1/4"-20 x 3/4", G2

3шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

3шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

6

164872C2

PANEL, instrument

1шт.

187-1091

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW, no. 10-16 x 3/8 C-Z pan hd cross recess tapping type B

12шт.

7

164874C91

CONSOLE ASSY, operator control left

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

8

164877C1

COVER, operator control left console, not automatic header control

1шт.

391426R1

NUT

1/4 speed grip

5шт.

453049

SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"

1/4 x 3/4 C-Z slt-pan-hd mach

5шт.

9

166267C1

DOOR, operator control console, for diesel engine

1шт.

9

164947C1

DOOR, operator control console, for gasoline engine

1шт.

163303

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1/2"

SCREW, 1/4 x 1/2 C-Z slt-pan-hd tap

4шт.

10

166001C1

SHIELD, operators console rear

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

11

166846C1

PLATE, instrument light

1шт.

12

170715C1

PLATE, fuse block cover

1шт.

13

432535

HOLE PLUG BUTTON,13/32"

PLUG, 1/2 C-Z button, diesel engine

1шт.

14

164655C2

SIDE, operators control console RH, not operators cab

1шт.

391426R1

NUT

1/4 speed grip

5шт.

453049

SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"

1/4 x 3/4 slt-pan-hd

5шт.

15

FILLER, console, for operators cab, refer to group 13 under operators cab for unit listing

1шт.

16

164657C2

CLIP, operators control console side right, not operators cab

1шт.
