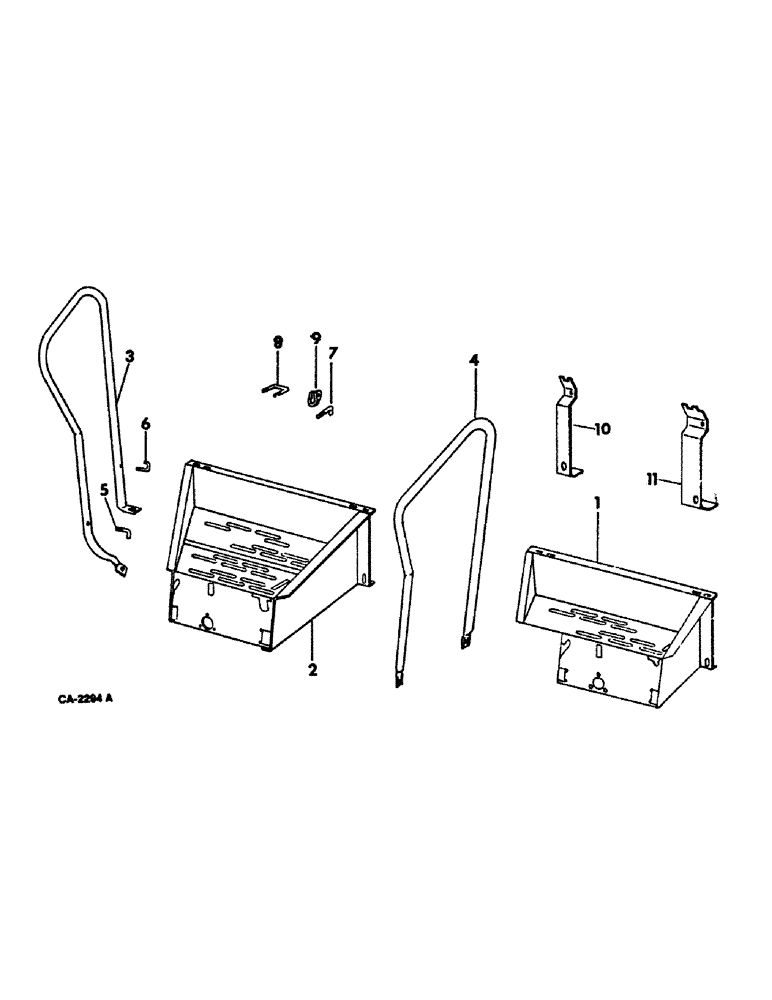

Запчасти Case IH 815 (13-03) - SUPERSTRUCTURE, OPERATORS PLATFORM EXTENSION (05) - SUPERSTRUCTURE

1

178571C1

EXTENSION ASSY, operators platform, 12 in. extension

1шт.

18821R1

BOLT

5/8 x 1-1/4 type 1

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

23836R1

WASHER

.656 x 1.375 x .105

1шт.

2

178580C1

EXTENSION ASSY, operator platform, 24 in. extension

1шт.

18821R1

BOLT

5/8 x 1-1/4 type 1

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

23836R1

WASHER

.656 x 1.375 x .105

1шт.

3

178579C1

RAIL, extension front hand, for 12 in. extension

1шт.

3

178586C1

RAIL, extension front hand, for 24 in. extension

1шт.

4

180370C1

RAIL, extension rear hand, for 12 in. extension

1шт.

4

178587C1

RAIL, extension rear hand, for 24 in. extension

1шт.

5

178588C1

BOLT, hand rail hook

1шт.

6

179170C1

BOLT, hand rail hook 2.7 in., 1 used in 12 in. extension

1шт.

6

179171C1

BOLT, hand rail hook, 2 used 24 in. extension

1шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

3/8 x 1 flange lock hex-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

7

180158C1

STUD, door catch, 12 in. extension

1шт.

124925

JAM NUT,Jam, 3/8"-24, G5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

8

179161C1

U-BOLT, door catch, 24 in. extension

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

9

359985R1

CLAMP

door catch, 1 used 12 in. extension, 2 used in 24 in. extension

1шт.

10

178405C1

BRACKET ASSY, ladder front mount, pivoting ladder

1шт.

11

178407C1

BRACKET ASSY, ladder rear mount, pivoting ladder

1шт.
