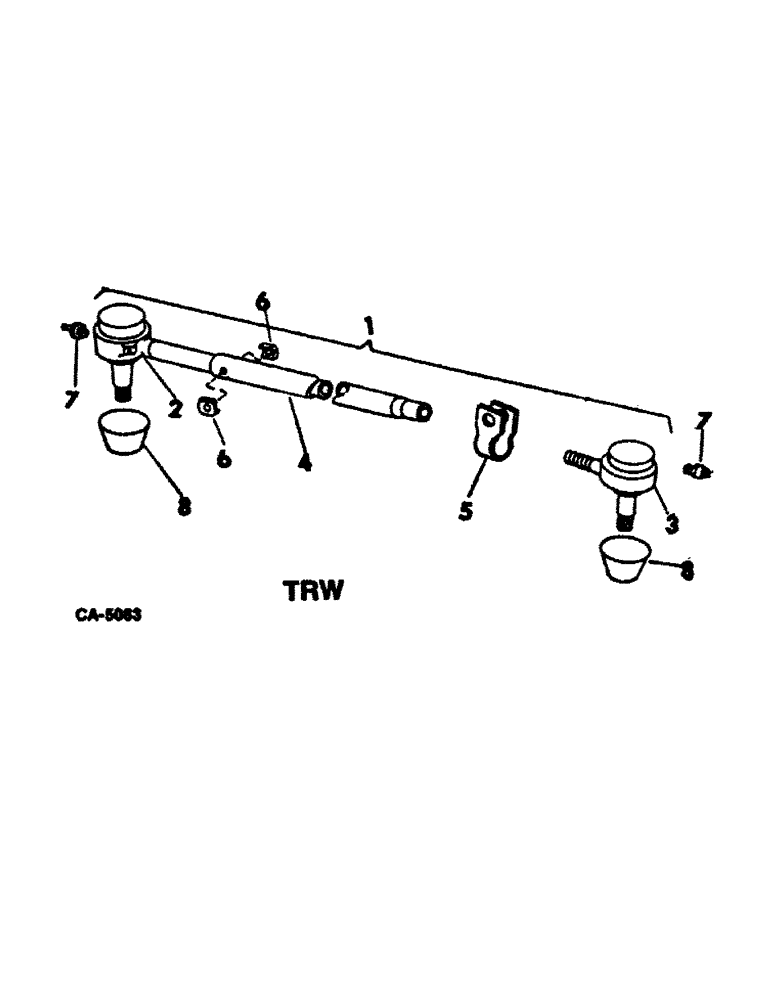

Запчасти Case IH 815 (14-09) - SUSPENSION, ROD STEERING AXLE TIE, WIDE ADJUSTABLE, 67 TO 91 INCHES Suspension

1

193370C91

ROD ASSY, wide adjustable axle tie, 67 to 91 inches, includes ref. nos. 2, 3, 4 and 5

1шт.

125267

NUT

5/8-NF SLT type 5

1шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

1шт.

2

193371C1

END ASSY.

END ASSY, tie rod LH, serial no. 19000 and below, order ref. no. 1, 193370C91

1шт.

3

179228C1

END ASSY.

END ASSY, tie RH

1шт.

4

193373C1

TUBE, tie rod, serial no. 19000 and below, order ref. no. 1, 193370C91

1шт.

5

225265R1

CLAMP

tie rod RH end

1шт.

168392R1

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 8

1/2 x 2-1/2 type 8

1шт.

9412230

LOCK NUT

1/2 PHC p/t lock type 8

1шт.

6

180586C1

BRACKET

WASHER, tie rod LH end clamp

2шт.

25778R1

BOLT,Hex, 3/8" - 24 x 2 3/4", Gr 8

3/8-NF x 2-3/4 PHC type 8

1шт.

7

109463

FITTING, 1/8-27 90 deg lub

2шт.

8

382562R1

SEAL

tie rod stud

2шт.

232-4636

LOCK NUT,3/8"-24, GC

NUT, LOCK, 3/8"-24, GC

1шт.
