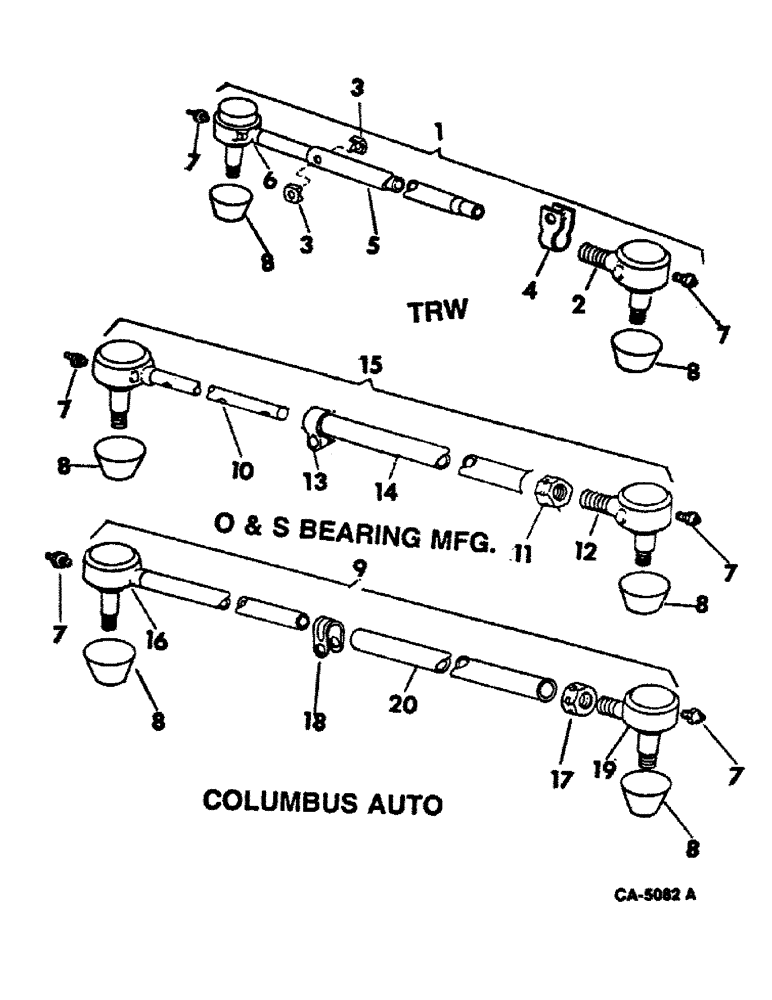

Запчасти Case IH 815 (14-07) - SUSPENSION, ROD STEERING AXLE TIE, NARROW ADJUSTING, 56 TO 68 INCHES Suspension

1

195425C91

ROD ASSY, guide wheel tie, includes ref. no. 2, 3, 4, 5 and 6

1шт.

NLS

NO LONGER SERVICED

5/16-18 slt-hex.

2шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

2шт.

2

179228C1

END ASSY.

END ASSY, tie rod RH

1шт.

3

180586C1

BRACKET

WASHER, tie rod clamp

1шт.

4

225265R1

CLAMP

tie rod RH end

1шт.

5

196322C1

TUBE, tie rod intermediate

1шт.

6

196321C1

END

ASSY, w/tube tie rod LH

1шт.

25776R1

BOLT

BOLT, 3/8-24 PHC hex-hd type 8

1шт.

7

16964R91

FITTING

1/4-28NF 90 deg lub

2шт.

8

382562R1

SEAL

tie rod stud

2шт.

9

ROD ASSY, narrow adjusting axle tie, 56 to 68 inches, order tie rod assy ref. no. 1, 195424C91, serial no. 19000 and below

1шт.

10

180198C1

ROD ASSY, w/LH end sliding, serial no. 19000 and below

1шт.

11

374062R1

JAM NUT

NUT, tie rod RH end lock 1-16 RH thread, serial no. 19000 and below

1шт.

12

180203C1

END ASSY.

END, tie rod RH, serial no. 19000 and below

1шт.

13

359986C1

CLAMP, tie rod, serial no. 19000 and below

1шт.

187000R1

BOLT, 1/2-20 x 2-1/4 hex-hd type 8

1шт.

225857R1

NUT, 1/2-20 hex. type 8

1шт.

364864R1

WASHER, 1/2 rib lock

1шт.

14

TUBE, adjusting axle tie rod, order rod assy, ref. no. 1, 195425C91

1шт.

15

ROD ASSY, narrow adjustable axle tie, 56 to 68 inches, order rod assy ref. no. 1, 195425C91

1шт.

16

180200C1

ROD ASSY, w/LH end sliding, serial no. 19000 and below

1шт.

17

374062R1

JAM NUT

NUT, tie rod lock 1-16 RH thread, serial no. 19000 and below

1шт.

18

168063C1

CLAMP, tie rod, serial no. 19000 and below

1шт.

187000R1

BOLT, 1/2-20 x 2-1/4 hex. type 8

1шт.

225857R1

NUT, 1/2-20 hex-hd type 8

2шт.

366864R1

WASHER, 1/2 rib lock

1шт.

495-11053

WASHER,1/2", SAE

.531 x 1.06 x .095

1шт.

19

379551R92

END ASSY.

END ASSY, w/nut and seal tie rod RH

1шт.

NLS

NO LONGER SERVICED

5/8-18 slt-hex.

1шт.

20

TUBE, adjustable axle tie, order tie rod ref. no. 1, 195425C91

1шт.

232-4636

LOCK NUT,3/8"-24, GC

NUT, LOCK, 3/8"-24, GC

1шт.
