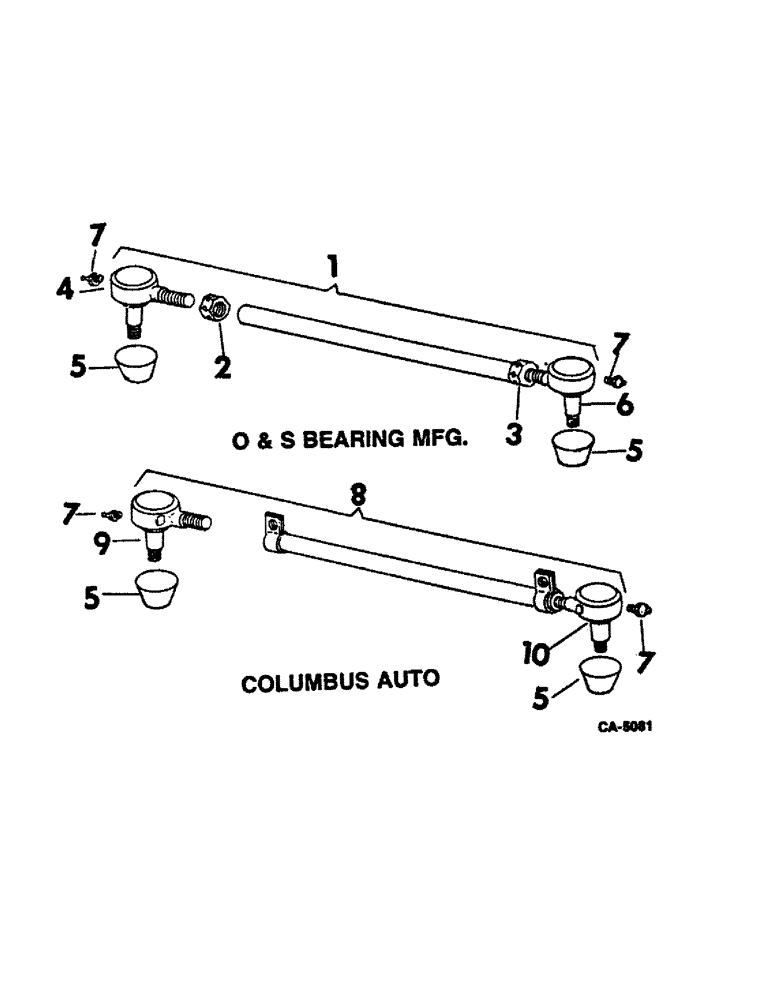

Запчасти Case IH 815 (14-06) - SUSPENSION, ROD STEERING AXLE TIE, FIXED AXLE Suspension

1

177774C91

ROD

ASSY, non-adjustable axle tie, optional for 177772C91, includes ref. nos. 2, 3, 4 and 6

1шт.

425-1310

SLOTTED NUT,5/8"-18, G5

NUT, 5/16-18 slt-hex.

2шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

2шт.

2

374061R1

JAM NUT

tie rod LH end locking 1-16 LH thread

1шт.

3

174062R1

NUT, tie rod RH end locking 1-16 RH thread

1шт.

4

180201C91

END

ASSY, w/nut and seal tie rod LHJ

1шт.

425-1310

SLOTTED NUT,5/8"-18, G5

NUT, 5/16-18 slt-hex.

1шт.

5

382562R1

SEAL

tie rod stud

2шт.

6

379551R92

END ASSY.

END ASSY, w/nut and seal tie rod RH

1шт.

7

16964R91

FITTING

1/4-28NF 90 deg lub

2шт.

8

177772C91

ROD ASSY.

ROD ASSY, non-adjustable axle tie, includes ref. nos. 9 and 10, optional for 177774C91 tie rod ref. no. 1

1шт.

455029

BOLT, 1/2-20 x 2-1/2 hex. type 8

2шт.

225857R1

NUT, 1/2-20 hex. type 8

2шт.

425-1310

SLOTTED NUT,5/8"-18, G5

NUT, 5/8-18 slt-hex.

2шт.

166864R1

WASHER, 1/2 rib lock

2шт.

9

180202C1

END ASSY.

END ASSY, tie rod LH

1шт.

10

180203C1

END ASSY.

END ASSY, tie rod RH

1шт.
