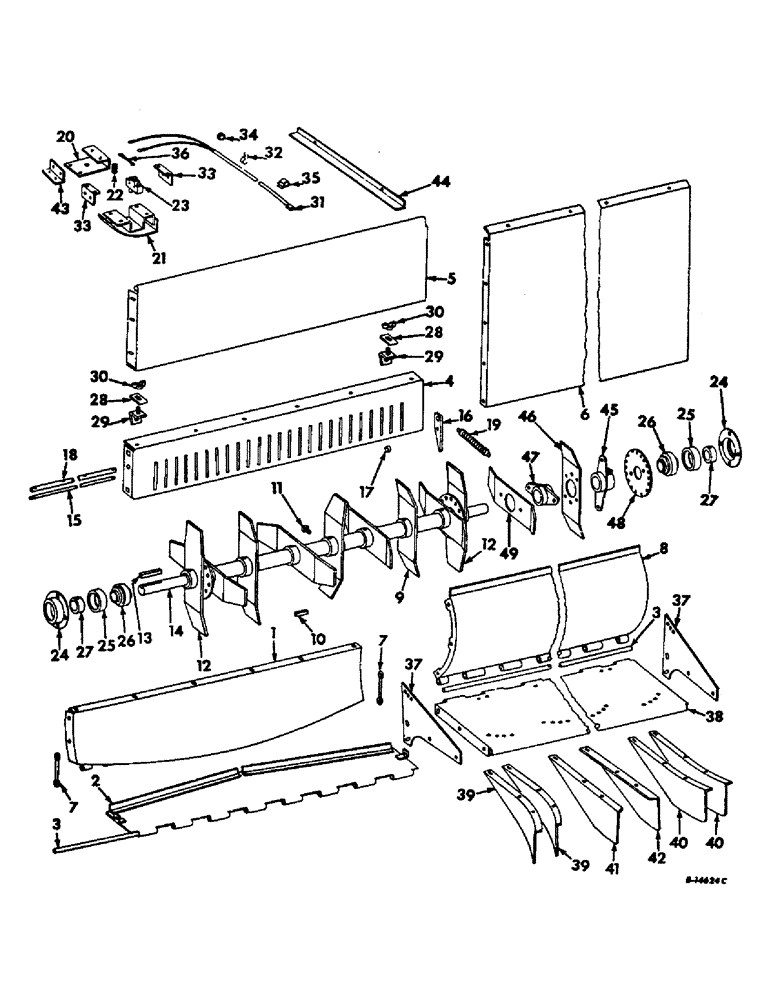

Запчасти Case IH 815 (R-60) - SEPARATOR, STRAW CHOPPER ROTOR, SERIAL NO. 3783 AND BELOW Separation

1

158996C91

DEFLECTOR ASSY, straw chopper lower front

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

6шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

6шт.

2

159000C91

EXTENSION ASSY, straw chopper lower front deflector

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt truss-hd

2шт.

3

159012C1

ROD

straw chopper hinge

2шт.

4

151009C91

PANEL ASSY, straw chopper knife support

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

16шт.

120376

NUT,5/16"-18, G5

16шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

16шт.

5

170485C1

DEFLECTOR, straw chopper upper front

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

6шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

6шт.

6

161629C1

DEFLECTOR, separator hood upper rear

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

17шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

9шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

8шт.

7

167275C1

LINK, straw chopper rear deflector

2шт.

8

161630C1

DEFLECTOR, separator hood lower rear

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

6шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

6шт.

9

150988C91

BLADE

ASSY, straw chopper, serial no. 3601 and below

9шт.

10

575824R1

KEY,1/4" Sq x 3", Par

1/4 x 3 sq parallel, serial no. 3601 and below

9шт.

11

937499R1

SCREW, straw chopper blade hub set, serial no. 3601 and below

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

12

150991C91

BLADE ASSY, straw chopper outer

2шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

4шт.

13

126

KEY,1/4" Sq x 2 1/2", Par

1/4 x 2-1/2 sq parallel

2шт.

14

936115R1

SHAFT, straw chopper

1шт.

15

936118R1

ROD, straw chopper knife pivot

1шт.

648002

KNIFE

1/8" x 3/4"

2шт.

16

936135R1

BLADE

straw chopper

19шт.

17

567532R1

WASHER

RING, straw chopper locating

19шт.

18

151020C1

ROD, straw chopper blade spring

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

5шт.

19

622016R1

SPRING

straw chopper blade

3шт.

20

161704C1

SUPPORT, straw chpr warning horn switch

2шт.

12653R1

BOLT (SPREADER),Short NK, 1/4"-20 x 3/4", G2

BOLT, CARRIAGE, Short NK, 1/4"-20 x 3/4", G2

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z whiz lock

8шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z whiz lock

8шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

21801R1

WASHER

9/32 x 3/4 x 16 ga C-Z

2шт.

21

166220C92

BRACKET

ASSY, straw chopper warning horn switch

2шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

8шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z whiz lock

8шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

4шт.

22

372649R1

SPRING

straw chopper warning switch, serial no. 3601 and below

2шт.

23

574649R91

SWITCH

ASSY, straw chopper warning horn

2шт.

134530

NUT,Hex, #6 - 32

2шт.

436670

SCREW,Slotted Pan Hd, #6-32 x 1 1/4"

no. 6-32 x 1-1/4 C-Z slt pan-hd mach

2шт.

131044

LOCK WASHER

Lock, #6

2шт.

24

936130R1

FLANGE

straw chopper rotor shaft brg

2шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 C-Z sq-nk crg

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

25

936131R1

RUBBER RING,92.46mm ID x 23.01mm OD x 23.01mm L

straw chopper rotor shaft brg

2шт.

26

936133R91

BEARING ASSY,38.1mm ID x 80mm OD x 18mm W

BEARING ASSY, stw chpr rotor shft ball

2шт.

27

455112R11

COLLAR

W/SET SCREW, lkg, not used RH w/monitor control

2шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8 x 3/8 hex-soc-hd cup PT set

2шт.

28

151199C1

STRIP, stw chpr spg rod retainer

2шт.

29

151200C11

BRACKET ASSY, stw chpr sprg rod ret

2шт.

30

935736R1

NUT, WING

NUT, 5/16 wing

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

Q399

WASHER

11/32 x 1 x 16 ga

2шт.

31

162474C91

CABLE ASSY, straw chopper horn switch to horn, not for use w/monitor control

1шт.

32

362127R1

CLIP

straw chopper horn cable

5шт.

33

166225C2

SUPPORT

BRACKET, straw chopper warning horn switch

4шт.

134530

NUT,Hex, #6 - 32

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

4шт.

193257

TUBE

SCREW, no. 6-32 x 1/4 C-Z slt pan-hd mach

1шт.

937875R1

SCREW,Serr, 1/4" - 20

1/4 x 3/4 C-Z slt truss-hd

4шт.

492-11006

LOCK WASHER,#6

Lock, #6

1шт.

34

117959

GROMMET,5/16" ID x .719" x .062"

no. 3 plain rubber diagonal cut, in separator top supports for warning horn cable

7шт.

34

109390

GROMMET,5/16" ID x 23/32" x .062", Diag Cut

no. 4 plain rubber diagonal cut, in warning switch support for warning horn cable

2шт.

35

166921C1

CLIP, cable

9шт.

35

167572C1

CLIP, cable

11шт.

36

CABLE ASSY, micro switch to ground, one used w/monitor control, use 2.5 in. of 14 ga wire from 100 ft roll marked 995055R1, one 54771R2 terminal and one 54775R2 terminal

1шт.

37

161622C1

SUPPORT, straw chopper rear deflector

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

4шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt truss-hd

4шт.

38

161627C1

EXTENSION

straw chopper rear deflector

1шт.

39

936124R1

DEFLECTOR

straw chopper left

2шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 C-Z hex-hd mach

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

40

936125R1

DEFLECTOR

straw chopper right

2шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 C-Z hex-hd mach

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

41

155131C1

DEFLECTOR

straw chopper left center

1шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 C-Z hex-hd mach

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

42

155132C1

DEFLECTOR, straw chopper right center

1шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 C-Z hex-hd mach

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

43

168905C1

SUPPORT, warning horn switch

2шт.

18626R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 1/2", Gr 2

BOLT, 1/4 x 1-1/2 C-Z sq-nk crg

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

44

173860C2

RETAINER, straw chopper wire

2шт.

564791R1

SPRING NUT

1/4 speed

4шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z whiz lock

4шт.

45

171168C1

HUB, straw chopper outer blade rotor, serial no. 3602 and above

2шт.

18800R1

BOLT, 7/16 x 2-1/2 hex-hd mach

2шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2 x 1-1/4 hex-hd mach

4шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

138549

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

4шт.

46

171170C1

ROTOR, straw chopper outer blade, serial no. 3602 and above

2шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 znd hex-hd mach

4шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 znd hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

Q399

WASHER

11/32 x 1 x 16 ga C-Z

8шт.

47

171167C1

HUB, straw chopper inner blade rotor, serial no. 3602 and above

9шт.

18800R1

BOLT, 7/16 x 2-1/2 hex-hd mach

9шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 C-Z hex-hd mach

18шт.

271501

SOCKET

NUT, 7/16 C-Z hex

9шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

18шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

9шт.

138549

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

18шт.

48

171171C1

FLANGE, straw chopper outer blade, serial no. 3602 and above

2шт.

49

171169C2

BLADE

ROTOR, straw chopper inner blade, serial no. 3602 and above

9шт.
