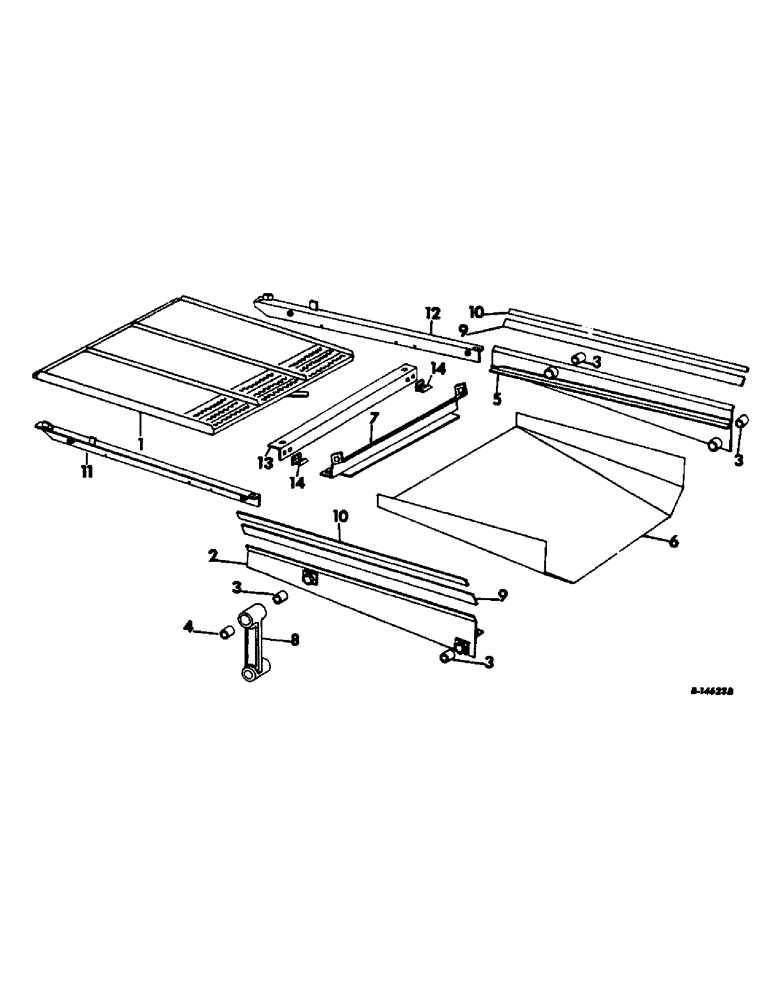

Запчасти Case IH 815 (R-56) - SEPARATOR, SHOE AND SHOE SIEVE Separation

1

158160C92

SIEVE ASSY, shoe, serial no. 4688 and below

1шт.

1

172834C1

SIEVE ASSY, shoe, serial no. 4689 and above

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

2

170796C91

SECTION ASSY, shoe side LH, serial no. 4688 and below, includes ref nos. 3, 9 and 10

1шт.

104081

RIVET,But Hd, 1/4" x 1/2"

1/4 x 1/2 small B-hd

8шт.

NLS

NO LONGER SERVICED

RIVET, 3/16 x 3/16 wagon box hd (PN 135286)

10шт.

3

627555R91

BUSHING,16mm ID x 28.96mm OD x 44.45mm L

ASSY, shoe side, serial no. 4688 and below

4шт.

4

583768R91

COMPOSITE RING

BUSHING ASSY, shoe hanger arm, serial no. 3239 and below

2шт.

4

627555R91

BUSHING,16mm ID x 28.96mm OD x 44.45mm L

ASSY, shoe hanger arm, 2 used serial no. 3240 thru 4688, 4 used serial no. 4689 and above

1шт.

5

170797C91

SECTION ASSY, shoe side RH, serial no. 4688 and below, includes ref nos. 3, 9 and 10

1шт.

104081

RIVET,But Hd, 1/4" x 1/2"

1/4 x 1/2 small B-hd

8шт.

NLS

NO LONGER SERVICED

RIVET, 3/16 x 3/16 wagon box hd (PN 135286)

10шт.

6

165108C91

BOTTOM ASSY, shoe, serial no. 4688 and below

1шт.

18763R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

5/16 x 1/2 C-Z hex-hd mach

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

6

175150C1

BOTTOM ASSY, shoe, serial no. 4689 and above

1шт.

18473R1

SCREW,Hex, 5/16"-18 X 5/8", G2

BOLT, 5/16 x 5/8 C-Z hex-hd mach

8шт.

120376

NUT,5/16"-18, G5

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

7

164662C91

SUPPORT, assy shoe, serial no. 4688 and below

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

8

158167C11

ARM W/BUSHING, shoe hanger, includes ref no. 4, serial no. 3239 and below

2шт.

8

170515C11

ARM ASSY, shoe hanger arm, serial no. 3240 thru 4688, includes ref no. 4

2шт.

18449R1

BOLT,Short NK, 5/8"-11 x 3", G2

5/8 x 3 C-Z sq-nk crg

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 C-Z hex

2шт.

125158

SLOTTED NUT,5/8"-11, G5

NUT, 5/8 slt hex

2шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

2шт.

160084C1

SCREW, 5/8 x 4-1/4 C-Z hex-hd cap dld

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga

2шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga

4шт.

8

175160C91

LEVER

ARM W/BUSHING, shoe hanger front, serial no. 4689 and above, includes ref no. 4

2шт.

19544R1

BOLT,Hex, 5/8"-11 x 3 1/4", G2

5/8 x 3-1/4 znd hex-hd

2шт.

231-14410

NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

4шт.

21217R1

BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 8

SCREW, 5/8 x 4-1/2 C-Z hex-hd cap type 8

2шт.

169256C1

DISC

WASHER, shoe hanger arm bushing

10шт.

9

172962C1

SEAL

shoe side, serial no. 4688 and below

2шт.

9

175181C1

SEAL

shoe side, serial no. 4689 and above

2шт.

10

172963C1

BAR, shoe side seal, serial no. 4688 and below

2шт.

174448C1

RIVET, 5/32 x 1/2 pop

22шт.

10

175182C1

BAR

shoe sieve seal, serial no. 4689 and above

2шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt tr-hd

16шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

16шт.

11

175143C1

SUPPORT

ASSY, shoe side LH, serial no. 4689 and above

1шт.

12

175144C1

SUPPORT

ASSY, shoe side RH, serial no. 4689 and above

1шт.

13

175148C1

ANGLE

shoe front, serial no. 4689 and above

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

14

172868C1

CLIP

front shoe support, serial no. 4689 and above

2шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2znd sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.
