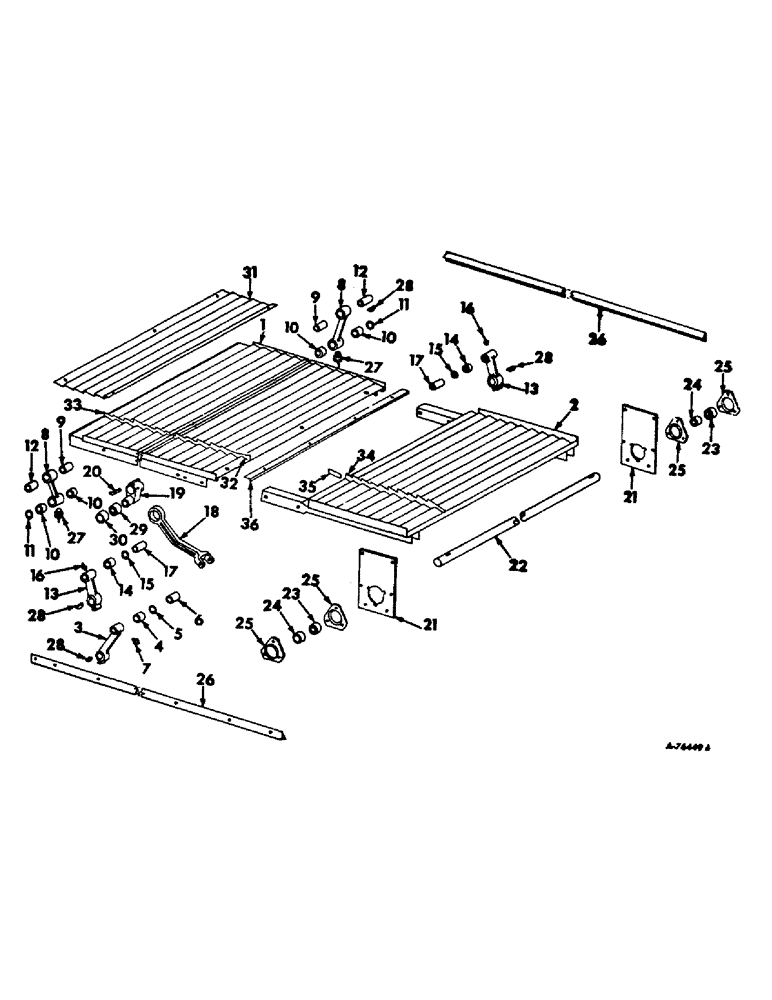

Запчасти Case IH 815 (R-54) - SEPARATOR, STRAW RACK RETURN PAN Separation
№
Артикул
Название
Примечание
Количество
1
160051C93
PAN ASSY, straw rack return front, serial no. 2186 and below
1шт.
1
171127C2
PAN ASSY, return front w/o dividers, serial no. 2187 and above
1шт.
1
170399C1
PAN ASSY, return front w/dividers, serial no. 2187 and above
1шт.
2
168090C3
PAN ASSY, straw rack return rear, serial no. 2186 and below
1шт.
2
171125C1
PAN ASSY, straw rack return rear, not corn special, serial no. 2187 thru 3783
1шт.
2
170370C1
PAN ASSY, straw rack return rear, standard for corn special, serial no. 2187 thru 3783
1шт.
16897R1
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
BOLT, 5/16 x 3/4 C-Z sq-nk crg
11шт.
167749C1
NUT, 5/16 speed
3шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z flange lock
3шт.
120376
NUT,5/16"-18, G5
8шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
8шт.
3
160048C11
LEVER
ARM ASSY, straw rack return pan crank, includes ref nos. 4 and 5
1шт.
120377
NUT,3/8" - 16, Gr 5
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
1шт.
180124
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5
SCREW, 3/8 x 1-1/4 C-Z hex-hd cap
1шт.
180190
LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5
SCREW, 1/2 x 3 C-Z hex-hd cap
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
1шт.
120384
WASHER,1/2"
LOCK, 1/2"
1шт.
4
276574R91
NEEDLE BEARING
ASSY, return pan crank arm
2шт.
5
459035R91
SEAL
SEAL, return pan crank arm oil
2шт.
6
160047C1
BUSHING
SLEEVE, straw rack return pan crank arm
1шт.
7
219-8
LUBE NIPPLE,1/4" - 28 NPTF
FITTING, 1/4-28 str lub
1шт.
8
160040C11
ARM
ASSY, return pan front hanger, includes ref nos 9 and 10
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
4шт.
180190
LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5
SCREW, 1/2 x 3 C-Z hex-hd cap
2шт.
180191
BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5
SCREW, 1/2 x 3-1/4 hex-hd
2шт.
120384
WASHER,1/2"
LOCK, 1/2"
4шт.
178374R1
WASHER
17/32 x 1-1/4 x 16 ga
2шт.
9
160041C1
COMPOSITE RING
BUSHING, return pan front hanger arm
2шт.
10
276574R91
NEEDLE BEARING
ASSY, straw rack return pan front hanger arm, serial no 3783 and below
4шт.
10
BUSHING,19.07mm ID x 22.24mm OD x 19.05mm L
straw rack return pan, serial no. 3784 and above
4шт.
11
459035R91
SEAL
SEAL ASSY, straw rack return pan front hanger arm oil, serial no. 3783 and below
4шт.
12
160047C1
BUSHING
SLEEVE, straw rack return pan front hanger arm
2шт.
13
160049C11
ARM
ASSY, return pan rear hanger, includes ref no. 14
2шт.
120377
NUT,3/8" - 16, Gr 5
2шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
2шт.
180124
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5
SCREW, 3/8 x 1-1/4 C-Z hex-hd cap
2шт.
180190
LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5
SCREW, 1/2 x 3 C-Z hex-hd cap
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
2шт.
120384
WASHER,1/2"
LOCK, 1/2"
2шт.
14
276574R91
NEEDLE BEARING
ASSY, straw rack return pan rear hanger, serial no. 3783 and below
4шт.
14
BUSHING,19.07mm ID x 22.24mm OD x 19.05mm L
return pan rear hanger, serial no. 3784 and above
4шт.
15
459035R91
SEAL
SEAL ASSY, straw rack return pan rear hanger arm oil, serial no. 3783 and below
4шт.
16
16964R91
FITTING
1/4-28 90 deg lub
2шт.
17
160047C1
BUSHING
SLEEVE, straw rack return pan rear hanger arm
2шт.
18
160050C1
ARM
straw rack return pan drive pitman
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
1шт.
180192
BOLT (SPREADER),Hex, 1/2" - 13 x 3 1/2", Gr 5
SCREW, 1/2 x 3-1/2 C-Z hex-hd cap
1шт.
120384
WASHER,1/2"
LOCK, 1/2"
1шт.
19
157008C91
CRANK ASSY, straw rack return pan
1шт.
NLS
NO LONGER SERVICED
5/16 C-Z hex-jam
2шт.
576517R1
LOCK PIN,1/4" x 1 1/2", Slotted
Pin, 1/4" x 1 1/2", Slotted
1шт.
178758
SET SCREW,Sq Hd, 5/16" - 18 x 3/4", Cup Pt
SCREW, 5/16 x 3/4 sq-hd cup PT
2шт.
12765R1
SCREW, 5/16 x 5/8 C-Z sq-hd cup PT
1шт.
20
117991
WOODRUFF KEY,#D, 5/16" x 1 1/4", HT
1шт.
21
157034C1
STRIP, return pan brg support
2шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
22
160045C1
SHAFT, straw rack return pan
1шт.
23
160055C91
BALL BEARING,1.127" ID x 2.441" OD x 1.013"
BEARING ASSY, straw rack return pan crankshaft
1шт.
24
572224R11
COLLAR
W/SET SCREW, lkg
2шт.
25
571425R1
FLANGED BEARING
return pan crankshaft brg
4шт.
16897R1
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
BOLT, 5/16 x 3/4 C-Z sq-nk crg
6шт.
120376
NUT,5/16"-18, G5
6шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
6шт.
26
168093C1
DEFLECTOR, straw rack return pan rear, serial no. 2186 and below
2шт.
26
170373C1
DEFLECTOR, straw rack return pan rear, serial no. 2187 and above
2шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z whiz lock
24шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 C-Z whiz lock
24шт.
27
16964R91
FITTING
1/4-28 90 deg lub
2шт.
28
88907
WOODRUFF KEY,#B, 5/16" x 1", HT
5/16 x 1 woodruff
3шт.
29
455960R91
BALL BEARING
BEARING ASSY, straw rack return pan pitman
1шт.
30
557115R11
COLLAR
COLLAR ASSY, pitman brg locking
1шт.
115321
SET SCREW,Hex Skt, 5/16"-18 x 5/16"
SCREW, 5/16 x 5/16 hex-soc-hd cup PT set
1шт.
31
170509C1
BOTTOM, return pan front ext
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z whiz lock
5шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 C-Z whiz lock
5шт.
32
170400C1
RISER, straw rack front return pan, optional
4шт.
436732
SCREW,Slotted Pan Hd, #10-24 x 1/2"
no. 10 x 1/2 C-Z slt pan-hd
12шт.
120217
LOCK WASHER,#10
WASHER, LOCK, #10
12шт.
33
168330C1
RISER, straw rack return pan rear, optional
12шт.
436732
SCREW,Slotted Pan Hd, #10-24 x 1/2"
no. 10 x 1/2 slt pan-hd
36шт.
120217
LOCK WASHER,#10
WASHER, LOCK, #10
36шт.
34
170371C1
RISER, straw rack rear return pan, optional
4шт.
436732
SCREW,Slotted Pan Hd, #10-24 x 1/2"
no. 10 x 1/2 slt pan-hd
8шт.
120217
LOCK WASHER,#10
WASHER, LOCK, #10
8шт.
35
171849C1
DEFLECTOR, straw rack rear return pan, parts accessories
8шт.
436732
SCREW,Slotted Pan Hd, #10-24 x 1/2"
no. 10 x 1/2 slt pan-hd
8шт.
120217
LOCK WASHER,#10
WASHER, LOCK, #10
8шт.
36
174545C1
ANGLE, straw rack return pan rear
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z whiz lock
3шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 C-Z whiz lock
3шт.
Выбрано товаров: 97
