Запчасти Case IH 815 (R-51) - SEPARATOR, STRAW RACK AND DRIVE Separation

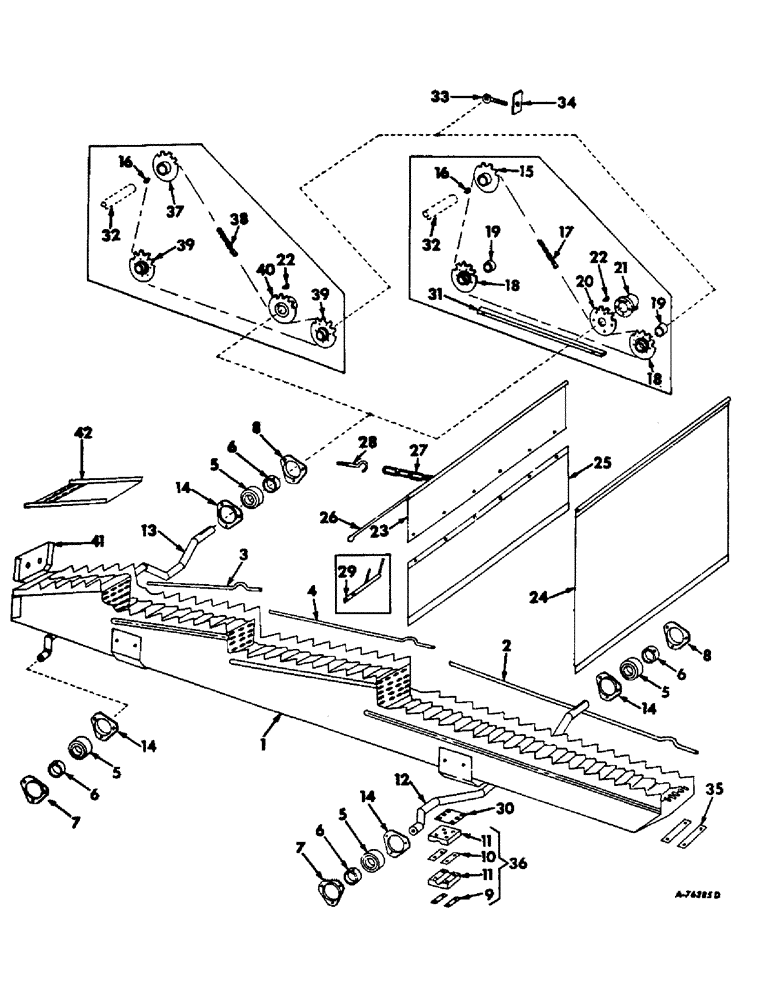

Схема запчастей Case IH 815 - (R-51) - SEPARATOR, STRAW RACK AND DRIVE Separation
6
35
40
11
12
7
11
14
32
4
41
24
25
5
14
30
9
31
21
5
34
14
5
6
32
20
6
29
14
33
5
27
37
39
16
22
42
22
16
10
17
19
23
2
18
26
19
8
13
15
1
18
36
38
8
39
6
3
7
28

Артикул

Название

Примечание

Количество

1

157964C92

DIVIDER

RACK ASSY, straw, includes ref. nos. 2, 3, 4, 41 and 42

1шт.

2

157976C1

ELECTRICAL WIRE

WIRE, straw rack riser rear

20шт.

3

937300R1

ELECTRICAL WIRE

WIRE, straw rack riser front center

20шт.

4

937301R1

ELECTRICAL WIRE

WIRE, straw rack riser center

20шт.

5

156030C91

BEARING

straw rack crankshaft, serial no. 4485 and below

4шт.

5

485259R91

BEARING ASSY,1.2505" ID x 72 mm OD x 1.4844"

straw rack crankshaft, serial no. 4486 and above

4шт.

6

455104R11

COLLAR

W/SET SCREW, lkg

4шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8 x 3/8 hex-soc-hd cup

4шт.

7

473091R91

FLANGE

W/STR LUB FITTING, straw rack crankshaft RH brg, serial no. 4485 and below

2шт.

7

571426R1

PLATE

FLANGE, straw rack crankshaft RH brg, serial no. 4486 and above

2шт.

8

939462R91

FLANGE

W/65 DEG LUB FITTING, straw rack crankshaft LH brg, serial no. 4485 and below

2шт.

8

571426R1

PLATE

FLANGE, straw rack crankshaft LH brg, serial no. 4486 and above

2шт.

9

157059C1

BAR

STRAP, straw rack crankshaft brg bolt lock

16шт.

126667

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3 1/4", Gr 2

BOLT, 5/16 x 3-1/4 C-Z sq-nk crg

32шт.

120373

NUT, 5/16 C-Z reg sq

32шт.

10

607065R1

GASKET

SHIM, straw rack crankshaft brg block

32шт.

11

BLOCK, straw rack crankshaft brg, not serviced separately order package assy 166064R91

1шт.

12

157980C1

CRANKSHAFT, straw rack rear

1шт.

13

157979C1

CRANKSHAFT, straw rack front

1шт.

14

473092R1

FLANGED BEARING

straw rack crankshaft grooved, serial no. 4485 and below

4шт.

14

571426R1

PLATE

FLANGE, straw rack crankshaft brg, serial no. 4486 and above

4шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

15

160616C91

SPROCKET ASSY, straw rack drive 19T, serial no. 2894 and below

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

22752R1

SPLIT PIN/SAFETY PIN

PIN, 3/8 x 2-1/4 C-Z std hd

1шт.

16

88907

WOODRUFF KEY,#B, 5/16" x 1", HT

KEY, 5/16 x 1 woodruff, hardened

1шт.

17

CHAIN ASSY, straw rack drive, serial no. 2894 and below, use 181 links from a 10 ft roll marked 611362R91, 1 offset link 612612R91 1 roller link 612611R91 and 2 connecting links 574532R91

1шт.

18

154113C91

DRIVE SPROCKET

SPROCKET ASSY, straw rack drive idler and tightener, serial no. 2894 and below

2шт.

18722R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/2", Gr 2

BOLT, 5/8 x 2-1/2 C-Z sq-nk crg

1шт.

18619R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 2

5/8 x 2-1/4 C-Z hex-hd mach

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 C-Z hex

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

589068R1

WASHER

21/32 x 1-1/4 x 16 ga

5шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga C-Z

1шт.

19

666624R91

BALL BEARING,16.26mm ID x 40mm OD x 18mm W

straw rack drive idler and tightener sprocket, serial no. 2894 and below

1шт.

20

160754C1

SPROCKET, straw rack driven 35T, grain, rice and windrow special, serial no. 3894 and below

1шт.

20

161915C1

SPROCKET, straw rack driven 40T, bean special, serial no. 2894 and below

1шт.

20

173156C1

SPROCKET, straw rack driven 32T, parts accessories 238 rpm fast speed, serial no. 2894 & below

1шт.

21

160755C1

HUB, straw rack driven sprocket, serial no. 2894 and below

1шт.

18475R1

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 2

5/16 x 1-1/4 hex-hd mach

5шт.

20897R1

BOLT,Short NK, 3/8"-16 x 2 1/2", G2

3/8 x 2-1/2 C-Z sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

5шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

22

117991

WOODRUFF KEY,#D, 5/16" x 1 1/4", HT

1шт.

18654R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4 x 3/4 C-Z hex-hd mach

4шт.

23

157183C1

VALVE BLOCK

SECTION, separator front check flap

1шт.

18654R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4 x 3/4 znd hex-hd mach

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

136661H

WASHER

17/64 x 1 x 16 ga

4шт.

24

157180C1

FLAP

separator rear check, not used on corn special w/straw chopper

1шт.

24

175031C1

FLAP

separator rear check, for corn special w/straw chopper

1шт.

25

157179C2

FLAP

separator front check

1шт.

26

157176C1

ROD

separator check flap

2шт.

648002

KNIFE

1/8" x 3/4"

2шт.

27

157178C91

CHAIN, separator front check flap adjustment

1шт.

18627R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 1", Gr 2

BOLT, 1/4 x 1 C-Z sq-nk crg

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

615009R1

WASHER

17/64 x 3/4 x 16 ga

1шт.

28

H59564

PIN

separator front check flap adjustment chain

1шт.

29

160029C91

RISER ASSY, straw rack, standard for rice, optional for all others

16шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

32шт.

120376

NUT,5/16"-18, G5

32шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

32шт.

30

160004C1

BAR

PLATE, straw rack rear saddle

4шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

8шт.

31

167272C1

GUIDE, straw rack drive chain, serial no. 2894 and below

1шт.

18769R1

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 2

5/16 x 2-1/2 hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

2шт.

32

JACKSHAFT, elevator drive, refer to section S grain elevator drive unit for listing

1шт.

33

578609R1

BOLT,7/16" - 14 x 5"

straw rack drive chain tightener

1шт.

271501

SOCKET

NUT, 7/16 C-Z hex

2шт.

34

935157R1

STRIP, straw rack drive chain tightener bolt

1шт.

35

168494C1

SHIM

straw rack

16шт.

36

166064C91

KIT

PACKAGE, straw rack crankshaft brg, includes ref nos. 9, 10 and 11

1шт.

126667

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3 1/4", Gr 2

BOLT, 5/16 x 3-1/4 C-Z sq-nk crg

4шт.

120373

NUT, 5/16 C-Z req sq

4шт.

37

170426C2

SPROCKET ASSY.

SPROCKET ASSY, straw rack drive 23T, serial no. 2895 and above

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

22752R1

SPLIT PIN/SAFETY PIN

PIN, 3/8 x 2-1/4 C-Z std hd

1шт.

38

CHAIN ASSY, straw rack drive, serial no. 2895 and above, use 221 links from a 10 ft roll marked 1791D and 1 connecting link 1310D

1шт.

39

631905R91

SPROCKET

ASSY, straw rack drive idler and tightener, serial no. 2895 and above

2шт.

18723R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 3/4", Gr 2

BOLT, 5/8 x 2-3/4 C-Z sq-nk crg

1шт.

18619R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 2

5/8 x 2-1/4 C-Z hex-hd mach

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 C-Z hex

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga C-Z

1шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga

7шт.

40

170472C1

SPROCKET ASSY, straw rack driven 42T, std for grain, corn & windrow specials, serial no. 2895 & above

1шт.

40

170763C1

SPROCKET ASSY, straw rack driven 47T, std for bean and rice special, serial no. 2895 and above

1шт.

124824

NUT,Hex, 5/16" - 18

5/16 C-Z hex-jam

1шт.

22339R1

SCREW, 5/16 x 1-1/4 sq hd cup PT set

1шт.

40

173146C1

SPROCKET ASSY, straw rack driven 39T

1шт.

41

196133C1

REINFORCEMENT ASSY, straw rack

1шт.

42

196136C1

SIEVE

straw rack, parts accessories 238 rpm fast speed, serial no. 2895 and above

1шт.
