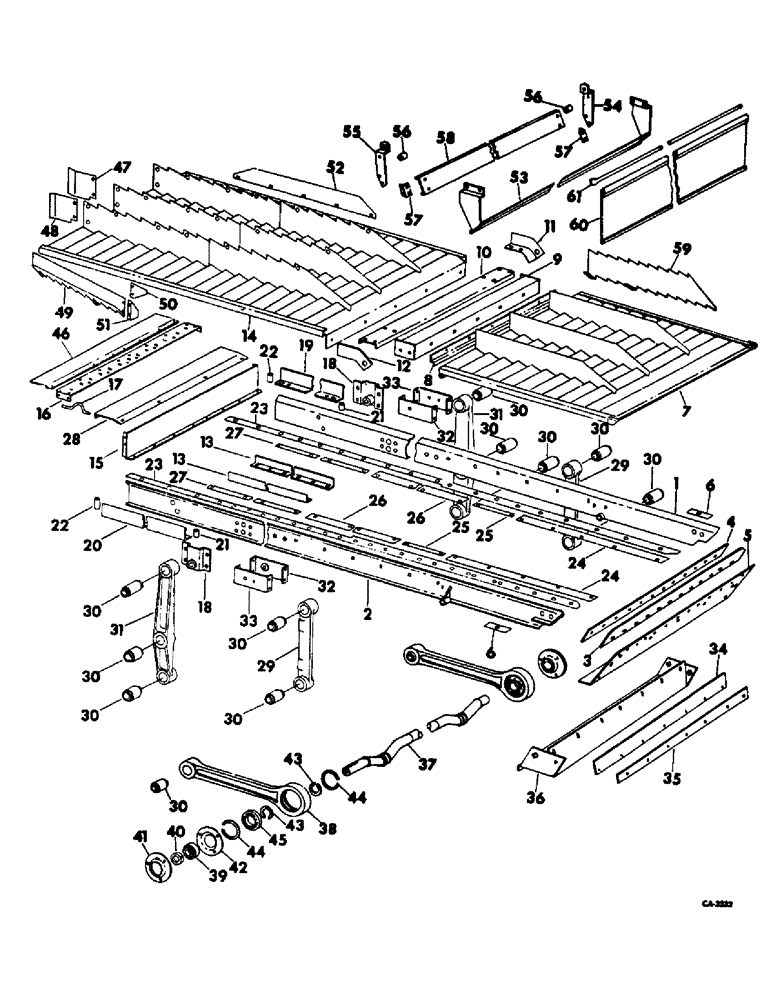

Запчасти Case IH 815 (R-48) - SEPARATOR, GRAIN PAN, HANGER ARMS AND SHAKER SHAFT, SERIAL NO. 4689 AND ABOVE Separation

1

175060C1

RAIL

ASSY, grain pan LH side

1шт.

2

175061C1

RAIL

ASSY, grain pan RH side

1шт.

3

158068C1

SEAL

grain pan front

1шт.

4

158070C1

BAR, grain pan front seal

1шт.

445117

DIODE

1/4 PHC spring

12шт.

453049

SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"

1/4 x 3/4 C-Z pan-hd mach

12шт.

5

175066C1

SUPPORT, grain pan front

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3 C-Z hex-hd mach

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga

2шт.

6

175068C1

RETAINER, grain pan side rail

2шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 C-Z sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

21496R1

WASHER

.344 x .75 x .12 C-Z

4шт.

7

175069C1

DOOR

ASSY, grain pan bottom, solid

1шт.

7

175076C1

DOOR ASSY, grain pan bottom, perforated

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

8

175094C1

RETAINER, grain pan bottom door

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

9

175096C1

SUPPORT ASSY, grain pan cross

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

10

172800C1

CHANNEL, grain pan support

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

11

172793C1

ANGLE

grain pan pivot LH

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

12

172794C1

ANGLE

grain pan pivot RH

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

13

175101C1

ANGLE, grain pan bottom support

2шт.

16897C1

BOLT, 5/16 x 3/4 C-Z sq-nk crg

12шт.

120376

NUT,5/16"-18, G5

12шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

14

175102C1

BOTTOM

ASSY, grain pan

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

6шт.

436732

SCREW,Slotted Pan Hd, #10-24 x 1/2"

no. 10-24 x 1/2 C-Z pan-hd mach

8шт.

470-12510

SCREW,Slotted Pan Hd, 1/4"-20 x 5/8"

1/4 x 5/8 C-Z pan-hd mach

6шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

8шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

15

175109C1

SUPPORT, grain pan finger front

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

16

175112C1

SUPPORT, grain pan finger

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

17

175114C1

FINGER,Formed, 1 Prong, 264mm L

grain pan

10шт.

18

172789C1

PIVOT

ASSY, grain pan rear

2шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

8шт.

120376

NUT,5/16"-18, G5

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

19

175116C1

SUPPORT

chaffer sieve LH

1шт.

20

175117C1

SUPPORT

chaffer sieve RH

1шт.

21

938828R1

SPACER

chaffer sieve support front

2шт.

18782R1

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 2

3/8 x 2-1/4 C-Z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

614452R1

WASHER

13/32 x 1-UO4 x 11 ga C-Z

2шт.

22

172807C1

SPACER

chaffer sieve support rear

2шт.

18781R1

BOLT,Hex, 3/8"-16 x 2", G2

3/8 x 2 C-Z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

23

175125C1

SEAL

grain pan side rail seal

2шт.

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW, 1/4 x 1/2 hex-hd tap washer faced

54шт.

24

175126C1

BAR

grain pan side rail seal front

2шт.

25

175127C1

BAR, grain pan side rail seal front center

2шт.

26

175128C1

BAR, grain pan side rail seal rear center

2шт.

27

175129C1

BAR, grain pan side rail seal rear

2шт.

28

172810C1

SEAL, grain, Serial Range: pan-plenum

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

29

175131C91

ARM ASSY.

ARM ASSY, grain pan front hanger, includes ref no. 30

1шт.

223517

BOLT,Hex, 5/8" - 11 x 3", Gr 8

5/8 x 3 C-Z hex-hd type 8

2шт.

25390R1

BOLT,Hex, 5/8" - 11 x 6 1/2", Gr 8

5/8 x 6-1/2 C-Z hex-hd type 8

2шт.

231-14410

NUT,5/8"-11, GB

NUT, LOCK, , Esna 5/8"-11, GB

2шт.

366866C1

LOCK WASHER,5/8"

5/8"

2шт.

169256C1

DISC

WASHER, .641 x 1.25 x .125 C-Z

4шт.

30

627555R91

BUSHING,16mm ID x 28.96mm OD x 44.45mm L

grain pan & shoe levers

12шт.

31

175133C91

LEVER

ASSY, grain pan and shoe, includes ref no. 30

1шт.

21217R1

BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 8

5/8 x 4-1/2 C-Z hex-hd

4шт.

18827R1

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 2

5/8 x 3-1/2 C-Z hex-hd

2шт.

231-14410

NUT,5/8"-11, GB

NUT, LOCK, , Esna 5/8"-11, GB

6шт.

169256C1

DISC

WASHER, .641 x 1.25 x.125 C-Z

16шт.

32

175135C1

SUPPORT

ASSY, grain pan pivot inner

2шт.

33

175139C1

SUPPORT

grain pan pivot outer

2шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1 C-Z sq-nk crg type 2

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

34

158082C1

SEAL

feeder housing lower, for grain, rice & corn special

1шт.

35

175141C1

BAR, feeder housing lower seal, for grain, rice & corn special

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

7шт.

450629

SCREW, 1/4 x 7/8 C-Z pan-hd mach

7шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

7шт.

21870R1

WASHER

17/64 x 3/4 x 16 ga C-Z

7шт.

36

165527C91

SUPPORT ASSY, grain pan front seal, for grain, rice & corn special, for windrow special

1шт.

172463

SELF-TAP SCREW,Hex Hd, 5/16" x 1"

SCREW, 5/16 x 1 C-Z hex-hd self tap

2шт.

37

568477R1

SHAFT, shaker

1шт.

38

175183C91

PITMAN W/BUSHING, shaker shaft, includes ref no. 30

2шт.

39

670373R91

BALL BEARING,1.1255" ID x 62 mm OD x 1.4375"

ASSY, shaker shaft ball

2шт.

40

557115R11

COLLAR

COLLAR W/SET SCREW LKG

2шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16 hex-soc-hd cup PT set

2шт.

41

470745R91

FLANGED BEARING

FLANGE W/STR LUB FITTING SHAKER SHAFT BEARING

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

42

470746R1

FLANGE

shaker shaft brg grooved

2шт.

43

359894R1

RING, SNAP

RING, shaker shaft pitman brg ext snap

4шт.

44

UA20551

RING

shaker shaft pitman brg int snap

4шт.

45

554553R91

BALL BEARING,45mm ID x 75mm OD x 16mm W

shaker shaft pitman ball

2шт.

46

172817C1

COVER, grain pan finger

1шт.

47

175188C

SHIELD, chaffer divider LH, for corn special

2шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z whiz lock

2шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z whiz lock

2шт.

48

175189C1

SHIELD, chaffer divider RH, for corn special

2шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z whiz lock

2шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z whiz lock

2шт.

49

175193C1

RISER ASSY

2шт.

50

175187C1

DEFLECTOR, rubber

2шт.

51

175186C1

DEFLECTOR

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

453049

SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"

1/4 x 304 znd slt pan-hd mach

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

52

175192C1

EXTENSION, grain pan divider

3шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange whiz lock

12шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt-tr-hd

12шт.

53

172823C1

BAFFLE ASSY, chaffer sieve

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

54

175118C1

SUPPORT

ASSY, rear deflector LH

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex-hd mach

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

55

175119C1

SUPPORT ASSY.

SUPPORT ASSY, rear deflector RH

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex-hd mach

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

56

149652

SPACER, 1/2 x 1-1/8 std pipe

2шт.

19023R1

CARRIAGE BOLT,#3, 3/8" - 16 x 2", Gr 2

BOLT, 3/8 x 2 no. 3 plow

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

57

175122C1

DEFLECTOR

ANGLE, grain pan rear deflector

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

4шт.

18764T1

BOLT, 5/16 x 3/4 hex-hd

4шт.

120376

NUT,5/16"-18, G5

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

58

175123C1

BAFFLE

DEFLECTOR, grain pan rear

1шт.

59

170602C1

RISER, grain pan bottom, standard for corn special

2шт.

120361

NUT,Hex Mach Screw, #10 - 24

8шт.

432632

SCREW, no. 10-24 x 1/2 slt pan-hd

8шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

8шт.

60

569109R21

CANVAS

FLAP ASSY, grain pan check

1шт.

61

157176C1

ROD

grain pan check flap

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.
