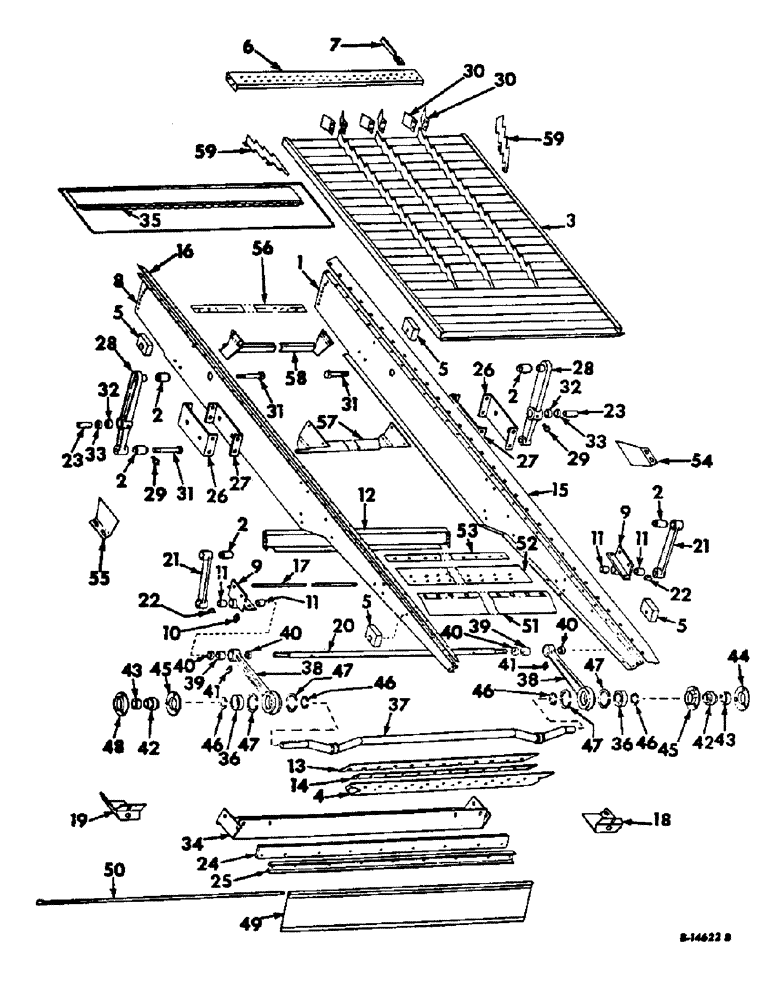

Запчасти Case IH 815 (R-45) - SEPARATOR, GRAIN PAN AND SHAKER SHAFT, SERIAL NO. 4688 AND BELOW Separation

158037C94

PAN ASSY, grain, includes ref nos. 1 thru 19

1шт.

1

158039C91

RAIL ASSY, grain pan left, includes ref no. 2

1шт.

2

627555R91

BUSHING,16mm ID x 28.96mm OD x 44.45mm L

ASSY, grain pan hanger

6шт.

3

158046C92

BOTTOM ASSY, grain pan, not perforated

1шт.

3

158049C91

BOTTOM ASSY, grain pan, perforated

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

8шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

10шт.

436732

SCREW,Slotted Pan Hd, #10-24 x 1/2"

no. 10 x 1/2 C-Z pan-hd

8шт.

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

1/4 x 1/2 C-Z slt pan-hd mach

8шт.

453049

SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"

1/4 x 3/4 C-Z slt pan-hd mach

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

8шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

10шт.

21870R1

WASHER

17/64 x 3/4 x 16 ga C-Z

2шт.

4

158056C1

REINFORCEMENT, grain pan front

1шт.

5

158058C1

BOARD, grain pan rail

4шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

Q1505

WASHER

13/32 x 1 x 16 ga

4шт.

6

158059C1

REINFORCEMENT, grain pan finger

1шт.

120376

NUT,5/16"-18, G5

4шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16 x 3/4 C-Z hex-hd cap

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

619885R1

WASHER, 11/32 x 3/4 x 16 ga C-Z

4шт.

7

155214C1

FINGER

grain pan

11шт.

18654R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4 x 3/4 C-Z hex-hd mach

22шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

22шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

22шт.

8

158040C91

RAIL ASSY, grain pan right, includes ref no. 2

1шт.

9

158063C91

HUB ASSY, grain pan support, includes ref no. 11

2шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 C-Z hex-hd cap

4шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 C-Z hex-hd cap

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

10

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 PTF str lub

2шт.

11

559154R1

BUSHING,25.45mm ID x 28.6mm OD x 25.4mm L

grain pan front shaft hub

4шт.

12

170754C1

SUPPORT ASSY, chaffer

1шт.

120376

NUT,5/16"-18, G5

6шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16 x 3/4 C-Z hex-hd cap

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

13

158068C1

SEAL

grain pan front

1шт.

14

158070C1

BAR, grain pan front

1шт.

NLS

NO LONGER SERVICED

1/4-20 spring type

12шт.

453049

SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"

1/4 x 3/4 C-Z slt pan-hd mach

12шт.

15

158072C1

SEAL

grain pan side

2шт.

16

158073C1

BAR, grain pan side seal

4шт.

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW, 1/4 x 1/2 hex-hd tapping washer faced

56шт.

20824R1

WASHER

11/32 x 1-1/2 x 16 ga C-Z

2шт.

17

158074C1

ROD, grain pan bottom cross

1шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

18

162010C1

FILLER, grain pan left

1шт.

19

162011C1

FILLER, grain pan right

1шт.

20

158076C1

SHAFT, grain pan front

1шт.

427640

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-16 slt hex

2шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

2шт.

520175R1

CLIP

PIN, qa cotter

2шт.

20798R1

WASHER

1-1/32 x 2 x 16 ga C-Z

8шт.

591715R1

WASHER

1-1/32 x 1-1/2 x 16 ga C-Z

2шт.

178375R1

WASHER

25/32 x 1-1/4 x 16 ga C-Z

4шт.

21

158078C11

ARM ASSY, grain pan front, includes ref no. 2

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 C-Z hex

2шт.

20105R1

BOLT,Hex, 5/8" - 11 x 2 3/4", Gr 8

SCREW, 5/8 x 2-3/4 C-Z hex-hd cap type 4

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

21471R1

WASHER

21/32 x 1 x 11 ga C-Z

2шт.

22

106751

KEY

3/16 x 3/4 woodruff

2шт.

23

158079C1

BUSHING

grain pan hanger arm

2шт.

24

158082C1

SEAL

feeder housing lower, grain, rice and corn special

1шт.

25

158091C1

CHANNEL, feeder housing lower seal, grain, rice and corn special

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

7шт.

450629

SCREW, 1/4 x 7/8 C-Z slt pan-hd

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

7шт.

21870R1

WASHER

17/64 x 3/4 x 16 ga C-Z

7шт.

26

160334C1

REINFORCEMENT, grain pan rear lever outer

2шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1 C-Z sq-nk crg type 2

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

27

160334C11

REINFORCEMENT ASSY, grain pan rear lever inner

2шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1 C-Z sq-nk crg type 2

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

28

158085C11

LEVER ASSY, grain pan rear, includes ref nos. 2, 32 and 33

2шт.

21776R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 3 1/4", Gr 2

BOLT, 5/8 x 3-1/4 C-Z sq-nk crg

2шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 C-Z hex

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

21796R1

WASHER

21/32 x 1 x 16 ga C-Z

4шт.

608081R1

WASHER

21/32 x 1-3/4 x 11 ga C-Z

2шт.

20703R1

WASHER

29/32 x 1-3/4 x 16 ga C-Z

4шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga

2шт.

29

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING, 1/4-28 PTF 45 deg angle lub

2шт.

30

171701C1

SHIELD, chaffer divider, standard for corn, optional for grain

4шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z whiz lock

8шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z whiz lock

8шт.

31

160084C1

SCREW, 5/8 x 4-1/4 C-Z hex-hd cap dld type 4

4шт.

125158

SLOTTED NUT,5/8"-11, G5

NUT, 5/8 C-Z slt hex

4шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

4шт.

1221574

WASHER, 5/8 C-Z med lock

4шт.

21796R1

WASHER

21/32 x 1 x 16 ga C-Z

4шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

6шт.

32

10026R

NEEDLE BEARING,0.875" ID x 1.1245" OD x 0.5"

BEARING ASSY, grain pan rear lever needle

4шт.

33

372756R91

OIL SEAL,20.45mm ID x 28.68mm OD x 3.17mm Thk

ASSY, grain pan lever oil

4шт.

34

165527C91

SUPPORT ASSY, grain pan front seal & lower feeder, grain, rice, corn & windrow

1шт.

172463

SELF-TAP SCREW,Hex Hd, 5/16" x 1"

SCREW, 5/16 x 1 C-Z hex-hd self tap

2шт.

35

160218C2

COVER, grain pan finger, optional

1шт.

36

554553R91

BALL BEARING,45mm ID x 75mm OD x 16mm W

shaker shaft ball

2шт.

37

568477R1

SHAFT, shaker

1шт.

38

150863C11

PITMAN ASSY, shaker shaft, includes ref nos. 39 and 40

2шт.

39

584164R91

NEEDLE BEARING

shaker shaft pitman needle

2шт.

40

584912R91

OIL SEAL

shaker shaft pitman brg oil

4шт.

41

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 str lub

2шт.

42

670373R91

BALL BEARING,1.1255" ID x 62 mm OD x 1.4375"

ASSY, shaker shaft

2шт.

43

557115R11

COLLAR

COLLAR W/SET SCREW LKG

2шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16 hex-soc-hd set

2шт.

44

470745R91

FLANGED BEARING

FLANGE W/STR LUB FITTING, shaker shaft LH brg

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

45

470746R1

FLANGE

shaker shaft brg grooved

2шт.

46

359894R1

RING, SNAP

RING, shaker shaft pitman brg external

4шт.

47

UA20551

RING

pitman brg internal snap

4шт.

48

167878C11

FLANGE

W/65 DEG LUB FITTING SHAKER SHAFT RH BRG, serial no. 1972 and below

1шт.

48

470745R91

FLANGED BEARING

FLANGE ASSY, shaker shaft RH bearing, serial no. 1973 and above

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

49

569109R21

CANVAS

FLAP ASSY, grain pan check

1шт.

50

157176C1

ROD

grain pan check flap

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

51

170757C1

SEAL, grain pan to plenum box

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

6шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

6шт.

52

165652C1

STRIP

SEAL, grain pan and plenum air

1шт.

53

167919C1

STRIP, grain pan and plenum seal retainer

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

4шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt truss-hd

4шт.

54

168026C1

DEFLECTOR, grain pan left, optional, serial no. 1972 & below

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16 x 3/4 C-Z hex-hd cap

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

4шт.

55

168027C1

DEFLECTOR, grain pan right, optional, serial no. 1972 & below

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16 x 3/4 C-Z hex-hd cap

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

4шт.

56

168741C1

STIFFENER, grain pan to plenum box seal

1шт.

57

170766C2

DEFLECTOR ASSY, fan wind, serial no. 1973 and above

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z whiz lock

4шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z whiz lock

4шт.

58

170772C3

DEFLECTOR ASSY, rear wind, serial no. 1973 and above

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z whiz lock

4шт.

59

170602C1

RISER, grain pan rear, standard for corn

2шт.

120361

NUT,Hex Mach Screw, #10 - 24

8шт.

436732

SCREW,Slotted Pan Hd, #10-24 x 1/2"

no. 10 x 1/2 C-Z pan-hd

8шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

8шт.
