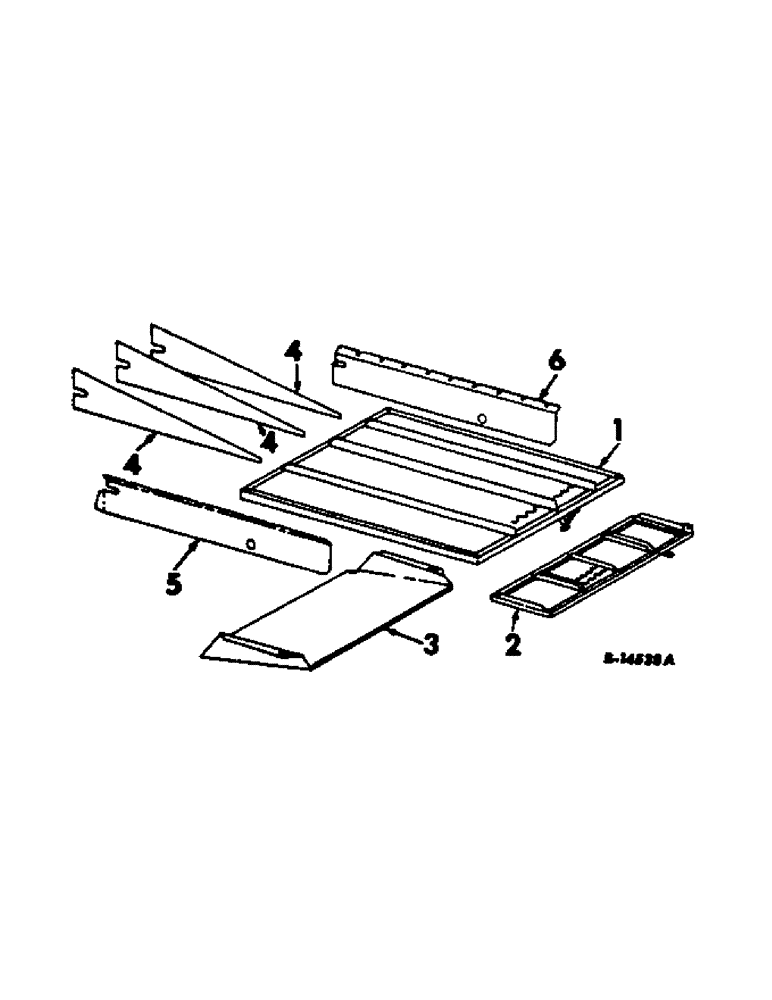

Запчасти Case IH 815 (R-44) - SEPARATOR, CHAFFER SIEVE AND EXTENSIONS, SERIAL NO. 4688 AND BELOW Separation

1

158431C93

SIEVE ASSY, chaffer, 1-1/8 adjusting, standard for grain, bean, rice & windrow, optional for corn special

1шт.

1

158430C93

SIEVE ASSY, chaffer cloz, 1-5/8 adj, optional

1шт.

1

158432C93

SIEVE ASSY, chaffer, Petersen type, optional

1шт.

1

158433C93

SIEVE ASSY, chaffer, 1-5/8 adjusting, standard for corn, optional for grain, bean & windrow

1шт.

1

158434C91

SIEVE ASSY, chaffer, 7/16 x 15/16 slot, optional

1шт.

1

158975C91

SIEVE ASSY, chaffer, 3/4 dia hole step, parts accessories

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

Q1597

WASHER

13/32 x 3/4 x 16 ga

2шт.

2

158436C93

SIEVE ASSY, chaffer extension, 1-1/8 in. adj, standard for grain, bean, rice & windrow, optional for corn special

1шт.

2

167559C92

SIEVE ASSY, chaffer extension, 1-5/8 in. adj corn slat, standard for corn, optional for grain

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

2шт.

22639R1

NUT, 1/4 C-Z hex lock

3шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

453049

SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"

1/4 x 3/4 C-Z pan-hd sltd mach

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

3

164748C91

PAN ASSY, chaffer return, parts accessories

1шт.

4

170603C1

DIVIDER, chaffer sieve, standard for corn, optional for grain

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

14шт.

453049

SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"

1/4 x 3/4 C-Z pan-hd

14шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

14шт.

5

170604C2

STRIP, chaffer extension LH, standard for corn, optional for grain

1шт.

6

170605C2

STRIP, chaffer extension RH, standard for corn, optional for grain

1шт.
