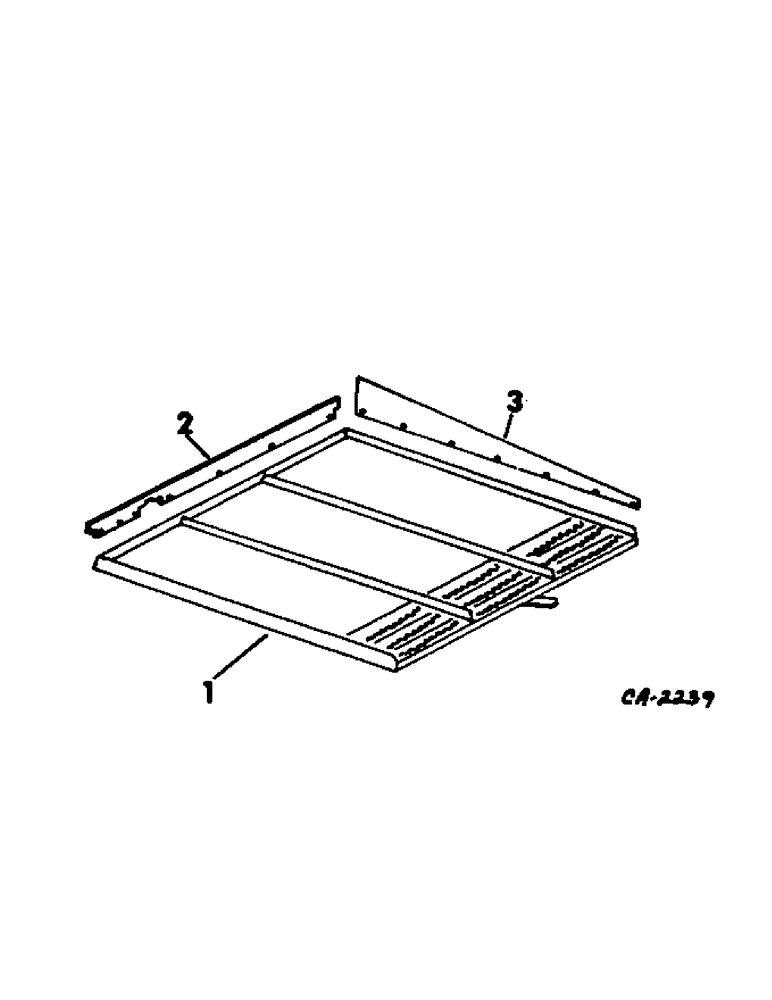

Запчасти Case IH 815 (R-44[1]) - CHAFFER SIEVE AND DIVIDERS, SERIAL NO. 4689 AND ABOVE Separation

1

172869C1

SIEVE

ASSY, chaffer, 1-1/8 adjusting, standard for grain, bean, rice, and windrow special

1шт.

1

172835C1

GRAIN SIEVE

SIEVE ASSY, chaffer, 1-5/8 adjusting, standard for corn special

1шт.

1

172836C1

SIEVE

ASSY, chaffer, 1-5/8 adjusting, optional

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 hex-hd

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

2шт.

2

175058C1

SEAL, chaffer

1шт.

26168R1

SCREW, 5/16 x 1 slt pan-hd mach

7шт.

120376

NUT,5/16"-18, G5

7шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

7шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

7шт.

3

175190C1

DIVIDER

chaffer sieve, standard for corn special, optional for grain

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

14шт.

453049

SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"

1/4 x 3/4 C-Z pan-hd

14шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

14шт.
