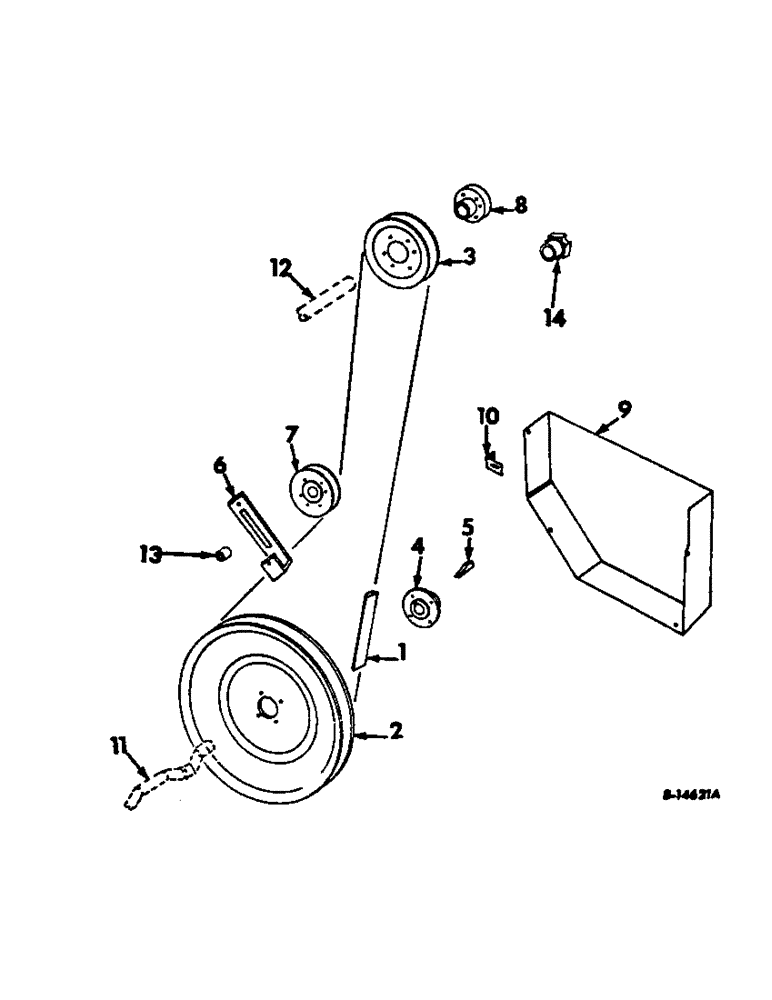

Запчасти Case IH 815 (R-43) - SEPARATOR, SHAKER SHAFT DRIVE Separation

1

564494R2

V-BELT,0.88" W

Shaker shaft drive, Optional 265 rpm 0.88" W

1шт.

1

632702R1

V-BELT,0.88" W

Shaker shaft drive, Standard 280 rpm 0.88" W

1шт.

2

167727C21

PULLEY ASSY, driven 19.9 in. OD, optional 265 rpm

1шт.

2

167728C21

PULLEY

ASSY, driven 18.24 in. OD, standard 280 rpm

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 C-Z hex-hd mach

4шт.

120376

NUT,5/16"-18, G5

4шт.

104233

RIVET, 3/16 x 1/4 flat hd 3/16" x 1/4"

40шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

3

160446C11

PULLEY

ASSY, drive 7.04 in. OD

1шт.

4

160757C2

HUB

shaker shaft driven pulley

1шт.

5

Q3929

KEY,Gib, 5/16" Sq x 1 1/2"

5/16 x 1-1/2 gib

1шт.

6

160753C2

BRACKET, shaker shaft tghtnr pulley

1шт.

7

570265R91

PULLEY

ASSY, drive tghtnr 7 in. OD

1шт.

18720R1

SCREW,Short NK, 5/8"-11 x 2", G2

BOLT, 5/8 x 2 C-Z sq-nk crg

1шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

5/8 C-Z hex-jam

1шт.

138557

WASHER,Int Tooth, 5/8"

5/8 C-Z int-tooth lock

1шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga

2шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga

2шт.

22858R1

SQ HOLE WASHER,41/64" x 1 1/4" x .105", Sq Hole

21/32 sq x 1-1/4 x 12 ga

1шт.

8

167729C2

HUB, shaker shaft drive pulley, for V-345 and diesel engines, serial no. 3601 and below

1шт.

8

169261C1

HUB, shaker shaft drive pulley, for V-304 engine, serial no. 3601 and below

1шт.

9

161970C2

SHEET, mud shield, standard for rice

1шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z

1шт.

10

631965R1

BRACE

SUPPORT, shaker shaft belt shield, standard for rice

3шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z sq-nk crg

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

3шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

614452R1

WASHER

13/32 x 1-1/4 x 11 ga

3шт.

11

SHAFT, shaker, refer to grain pan and shaker shaft unit for listing

1шт.

12

SHAFT, cyl beater, refer to cyl beater, grate & concave unit for listing

1шт.

13

450492R1

SPACER,1/2" Pipe x 1"

belt tghtner pulley bracket, serial no. 3783 and below

1шт.

13

UA17298

SPACER,7/8" Tube x 1 1/16"

belt tghtnr pulley bracket, serial no. 3784 and above

1шт.

14

172302C1

HUB, shaker shaft drive pulley, for V-304 engine, serial no. 3602 and above

1шт.

14

172301C1

HUB

shaker shaft drive pulley, for V-345 engine and diesel, serial no. 3602 and above

1шт.

18799R1

BOLT,Hex, 7/16"-14 x 2 1/4", G2

7/16 x 2-1/4 hex-hd mach

3шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

3шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

3шт.
