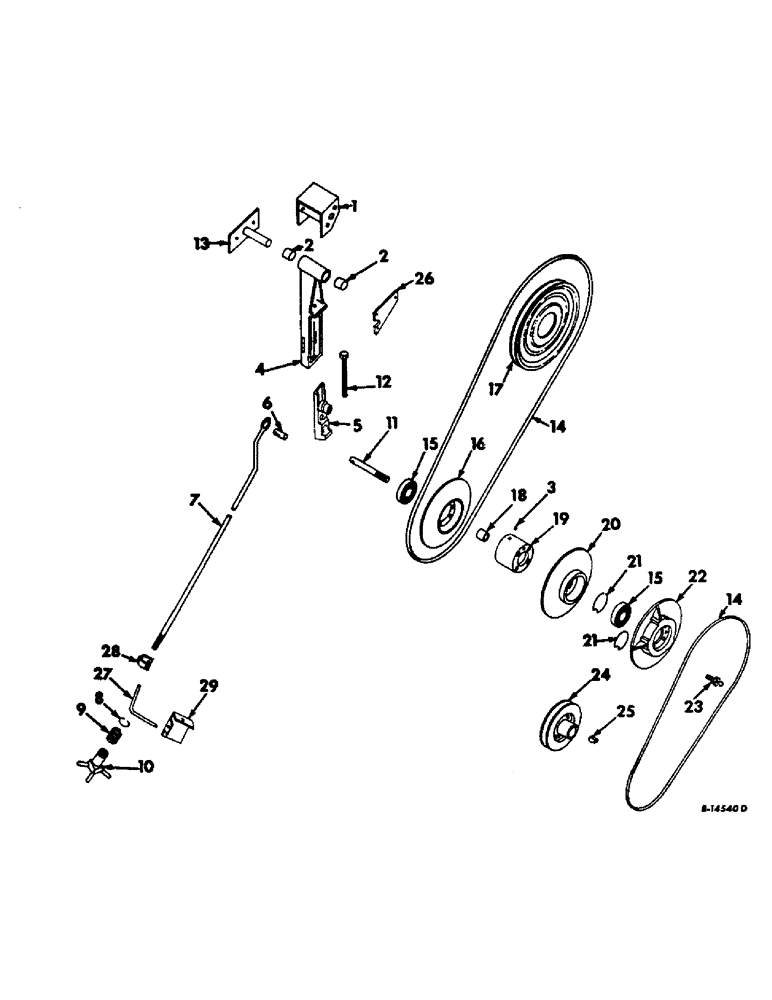

Запчасти Case IH 815 (R-41) - SEPARATOR, SEPARATOR FAN DRIVE Separation

1

164975C91

SUPPORT ASSY, fan drive idler arm

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

3шт.

475954R1

NUT

3/8 C-Z hex

3шт.

2

556448R1

BUSHING,19.07mm ID x 22.23mm OD x 25.4mm L

fan drive tightener lever

2шт.

3

617077R1

WICK

fan jackshaft pulley hub grease

2шт.

4

160524C11

LEVER W/BUSHINGS, fan drive tghtnr up, includes ref no. 2

1шт.

5

160525C1

LEVER

fan drive tightener lower

1шт.

168930C1

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 1/2", Gr 5

BOLT, 7/16 x 1-1/2 C-Z sq-nk crg

2шт.

271501

SOCKET

NUT, 7/16 C-Z hex

2шт.

19795R1

PIN,1/4" x 1 3/4", Coiled

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

893862R1

WASHER

15/32 x 1-1/4 x 16 ga C-Z

2шт.

6

165013C1

PIN, fan drive control rod support

1шт.

7

170360C1

ROD

fan speed control

1шт.

8

454417R1

SNAP RING,#100, Ext

Ring, Snap, , fan pulley handle #100, Ext

1шт.

9

12209D

SPRING

fan pulley adj handle

1шт.

10

169705C1

HANDLE

fan pulley adjusting

1шт.

591715R1

WASHER

1-1/32 x 1-1/2 x 16 ga C-Z

1шт.

11

160526C1

STUD

JACKSHAFT, fan pulley

1шт.

426099

NUT,3/4"-16, G5

3/4-16 NF C-Z hex

1шт.

19795R1

PIN,1/4" x 1 3/4", Coiled

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

615168R1

WASHER

25/32 x 1-1/2 x 11 ga C-Z

1шт.

12

662904R1

BOLT,Adj, 5 1/2"

fan drive arm adjusting

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

607895R1

WASHER

17/32 x 1 x 11 ga C-Z

2шт.

13

162487C91

SUPPORT

ASSY, fan drive idler arm

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

1шт.

14

164999C92

SET OF BELTS

Pair of fan drive

1шт.

15

586156R91

BEARING

ASSY, fan jackshaft pulley ball

2шт.

16

164223C1

PULLEY

fan jackshaft inner half 9.84 OD 1.85 bore dia

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8 x 1-1/4 C-Z hex-hd cap

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

591715R1

WASHER

1-1/32 x 1-1/2 x 16 ga C-Z

1шт.

17

160310C11

ASSEMBLY

PULLEY ASSY, fan drive 13.5 in. OD

1шт.

104233

RIVET, 3/16 x 1/4 flat hd 3/16" x 1/4"

30шт.

REF#17, sheet metal pulley is no longer available. Pulleys will be made out of bar stock/cast material, per ENG. release#FEC D2003. jfn 9/18/98

1шт.

18

168566C1

SPACER,1" Tube x 1 7/8"

fan pulley brg support stud

1шт.

19

166263C1

HUB

fan jackshaft pulley

1шт.

20

164221C1

PULLEY

fan jackshaft center 9.84 OD 4.13 bore dia

1шт.

21

357323R1

RING, SNAP

RING, fan jackshaft center pulley snap

2шт.

22

164222C1

PULLEY

fan jackshaft outer half 9.84 OD 1.85 bore dia

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8 x 1-1/4 C-Z hex-hd cap

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

23

126131

FITTING

1/4-28 straight lub

1шт.

24

160532C1

PULLEY

fan driven 9.84 OD 1.85 bore dia

1шт.

NLS

NO LONGER SERVICED

5/16 C-Z hex-jam

1шт.

107327

SET SCREW,Sq Hd, 5/16"-18 x 1"

SCREW, 5/16 x 1 C-Z sq hd set cup PT

1шт.

25

88907

WOODRUFF KEY,#B, 5/16" x 1", HT

KEY, 5/16 x 1 woodruff, hard

1шт.

26

167963C1

PLATE, fan drive support

1шт.

475954R1

NUT

3/8 C-Z flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 C-Z slt truss-hd

1шт.

27

167327C1

ROD

fan speed indicator

1шт.

28

167325C11

CLAMP

ASSY, fan speed indicator

1шт.

18654R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4 x 3/4 C-Z hex-hd mach

1шт.

29

167326C1

SUPPORT, fan speed indicator

1шт.
