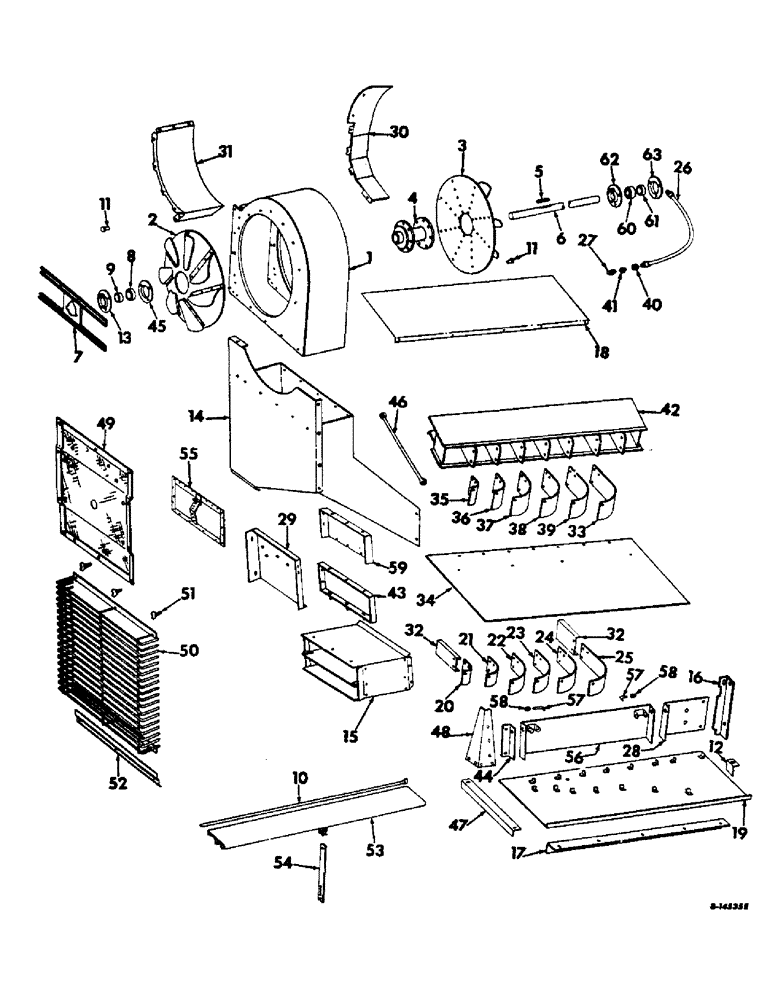

Запчасти Case IH 815 (R-38) - SEPARATOR, FAN AIR DUCT, DEFLECTORS AND WINDBOARD Separation
№
Артикул
Название
Примечание
Количество
1
160166C91
HOUSING ASSY, fan
1шт.
2
160171C91
FAN
ASSY, right, includes ref no. 11
1шт.
18764R1
HARDWARE,Hex, 5/16"-18 x 3/4", G2
BOLT, 5/16 x 3/4 znp hex-hd mach
8шт.
120376
NUT,5/16"-18, G5
8шт.
436732
SCREW,Slotted Pan Hd, #10-24 x 1/2"
no. 10-24 x 1/2 C-Z pan-hd slt mach, for balance
1шт.
440-11010
SCREW,Phillips Drive, Pan HD, #10 - 24 x 5/8"
no. 10-24 x 5/8 C-Z pan-hd slt mach, for balance
1шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
8шт.
607893R1
WASHER
13/64 x 1/2 x 16 ga C-Z
1шт.
3
160170C91
FAN ASSY LEFT, includes ref no. 11
1шт.
18764R1
HARDWARE,Hex, 5/16"-18 x 3/4", G2
BOLT, 5/16 x 3/4 znp hex-hd mach
8шт.
120376
NUT,5/16"-18, G5
8шт.
436732
SCREW,Slotted Pan Hd, #10-24 x 1/2"
no. 10-24 x 1/2 C-Z pan-hd slt mach, for balance
1шт.
440-11010
SCREW,Phillips Drive, Pan HD, #10 - 24 x 5/8"
no. 10-24 x 5/8 C-Z pan-hd slt mach, for balance
1шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
8шт.
607893R1
WASHER
13/64 x 1/2 x 16 ga C-Z
1шт.
4
165047C1
HUB, fan
1шт.
425-145
JAM NUT,Jam, 5/16"-18, G5
5/16 C-Z hex-jam
2шт.
9635884
BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5
5/16 x 1 C-Z hex-hd cap
16шт.
107327
SET SCREW,Sq Hd, 5/16"-18 x 1"
SCREW, 5/16 x 1 C-Z cup PT sq hd set
2шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
16шт.
5
23875R1
KEY,5/16" Sq x 6 1/2", Par
5/16 x 6-1/2 square
1шт.
6
160831C1
SHAFT
fan
1шт.
7
161754C91
SUPPORT ASSY, fan shaft outer brg
1шт.
12872R1
BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd
CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd
4шт.
120376
NUT,5/16"-18, G5
4шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z flange lock
4шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
4шт.
8
473097R91
BEARING
ASSY, fan shaft outer
1шт.
9
455104R11
COLLAR
ASSY, outer bearing locking
1шт.
115321
SET SCREW,Hex Skt, 5/16"-18 x 5/16"
SCREW, 5/16 x 5/16 cup PT hex-soc-hd
1шт.
10
157176C1
ROD
wind deflector
1шт.
11
167426C1
RIVET, cleaning fan
64шт.
12
632060R1
ANGLE, plenum box left side retainer, serial no. 2502 and below
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z flange lock
1шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 C-Z slt truss-hd
1шт.
12
584995R1
ANGLE, plenum box upper LH front stop, serial no. 2503 and above
1шт.
16897R1
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
BOLT, 5/16 x 3/4 C-Z sq-nk crg
1шт.
120376
NUT,5/16"-18, G5
1шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
1шт.
120393
BEARING WASHER,5/16", SAE
WASHER, 11/32 x 11/16 x 16 ga C-Z
1шт.
13
473091R91
FLANGE
ASSY, fan shaft outer bearing
1шт.
18508R1
CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd
BOLT, 3/8 x 3/4 C-Z sq-nk crg
3шт.
120377
NUT,3/8" - 16, Gr 5
3шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
3шт.
14
160769C91
DUCT ASSY, fan center air, standard
1шт.
14
170295C1
DUCT ASSY, fan center air, optional w/air duct door
1шт.
938016R1
FLANGE NUT,Flg, USR, 1/4"-20
1/4 C-Z flange lock
5шт.
937059R1
SCREW,Serr, M10 x 70mm, Cl 10.9
1/4 x 1/2 C-Z slt truss-hd
5шт.
15
160787C92
DUCT ASSY, fan air lower
1шт.
120376
NUT,5/16"-18, G5
3шт.
937059R1
SCREW,Serr, M10 x 70mm, Cl 10.9
1/4 x 1/2 C-Z whiz lock
4шт.
172455
SELF-TAP SCREW,Sl Hex, 5/16" - 18 x 3/4"
SCREW, 5/16 x 3/4 hex-hd
3шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
3шт.
16
160967C1
ANGLE, plenum box front, serial no. 2502 and below
1шт.
18764R1
HARDWARE,Hex, 5/16"-18 x 3/4", G2
BOLT, 5/16 x 3/4 C-Z hex-hd mach
2шт.
18474R1
BOLT,Hex, 5/16" - 18 x 1", Gr 2
5/16 x 1 znd hex-hd mach
1шт.
120376
NUT,5/16"-18, G5
2шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
2шт.
17
160930C1
ANGLE, plenum box rear, serial no. 2502 and below
1шт.
18673R1
CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2
BOLT, 5/16 x 3/4 C-Z sq-nk crg
4шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z flange lock
8шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 C-Z slt truss-hd
4шт.
18
160932C11
SIDE ASSY, plenum box top
1шт.
938016R1
FLANGE NUT,Flg, USR, 1/4"-20
1/4 C-Z flange lock
1шт.
937059R1
SCREW,Serr, M10 x 70mm, Cl 10.9
1/4 x 1/2 C-Z slt truss-hd
1шт.
19
160933C11
SIDE ASSY, plenum box bottom
1шт.
16897R1
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
BOLT, 5/16 x 3/4 znd sq-nk crg
4шт.
120376
NUT,5/16"-18, G5
4шт.
938016R1
FLANGE NUT,Flg, USR, 1/4"-20
1/4 C-Z flange lock
1шт.
937059R1
SCREW,Serr, M10 x 70mm, Cl 10.9
1/4 x 2 C-Z slt truss-hd
1шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
4шт.
20
165151C1
DEFLECTOR, plenum box
1шт.
938016R1
FLANGE NUT,Flg, USR, 1/4"-20
1/4 C-Z flange lock
4шт.
937059R1
SCREW,Serr, M10 x 70mm, Cl 10.9
1/4 x 1/2 C-Z slt truss-hd
4шт.
21
165152C1
DEFLECTOR, plenum box
1шт.
938016R1
FLANGE NUT,Flg, USR, 1/4"-20
1/4 C-Z flange lock
4шт.
937059R1
SCREW,Serr, M10 x 70mm, Cl 10.9
1/4 x 1/2 C-Z slt truss-hd
4шт.
22
165153C1
DEFLECTOR, plenum box
1шт.
938016R1
FLANGE NUT,Flg, USR, 1/4"-20
1/4 C-Z flange lock
4шт.
937059R1
SCREW,Serr, M10 x 70mm, Cl 10.9
1/4 x 1/2 C-Z slt truss-hd
4шт.
23
165154C1
DEFLECTOR, plenum box
1шт.
938016R1
FLANGE NUT,Flg, USR, 1/4"-20
1/4 C-Z flange lock
4шт.
937059R1
SCREW,Serr, M10 x 70mm, Cl 10.9
1/4 x 1/2 C-Z slt truss-hd
4шт.
24
165155C1
DEFLECTOR, plenum box
1шт.
938016R1
FLANGE NUT,Flg, USR, 1/4"-20
1/4 C-Z flange lock
4шт.
937059R1
SCREW,Serr, M10 x 70mm, Cl 10.9
1/4 x 1/2 C-Z slt truss-hd
4шт.
25
165100C1
DEFLECTOR, plenum box left lower
1шт.
938016R1
FLANGE NUT,Flg, USR, 1/4"-20
1/4 C-Z whiz lock
4шт.
937059R1
SCREW,Serr, M10 x 70mm, Cl 10.9
1/4 x 1/2 C-Z whiz lock
4шт.
26
168361C1
HOSE,0.14" ID x 19.00"
- Fan shaft inner brg lub 0.14" ID x 19.00"
1шт.
28
170561C1
SHEET, plenum box left front
1шт.
18626R1
CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 1/2", Gr 2
BOLT, 1/4 x 1/2 C-Z sq-nk crg
4шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
4шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
4шт.
29
160767C2
SIDE, plenum box filler, serial no. 1972 and below
1шт.
29
170884C1
SIDE, plenum box filler, serial no. 1973 and above
1шт.
18764R1
HARDWARE,Hex, 5/16"-18 x 3/4", G2
BOLT, 5/16 x 3/4 C-Z hex-hd mach
4шт.
18474R1
BOLT,Hex, 5/16" - 18 x 1", Gr 2
5/16 x 1 C-Z hex-hd mach
2шт.
120376
NUT,5/16"-18, G5
6шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
6шт.
30
163830C1
SHIELD, fan housing blade
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z flange lock
2шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 C-Z slt truss-hd
2шт.
31
163831C11
HOUSING ASSY, fan lower
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z flange lock
14шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 C-Z whiz lock
14шт.
32
165090C1
CHANNEL, lower
6шт.
938016R1
FLANGE NUT,Flg, USR, 1/4"-20
1/4 C-Z flange lock
6шт.
937059R1
SCREW,Serr, M10 x 70mm, Cl 10.9
1/4 x 1/2 C-Z whiz lock
6шт.
33
165099C1
DEFLECTOR, top left
1шт.
938016R1
FLANGE NUT,Flg, USR, 1/4"-20
1/4 C-Z whiz lock
4шт.
937059R1
SCREW,Serr, M10 x 70mm, Cl 10.9
1/4 x 1/2 C-Z whiz lock
4шт.
34
165145C11
SHEET ASSY, plenum box center
1шт.
938016R1
FLANGE NUT,Flg, USR, 1/4"-20
1/4 C-Z flange lock
4шт.
937059R1
SCREW,Serr, M10 x 70mm, Cl 10.9
1/4 x 1/2 C-Z slt truss-hd
4шт.
35
165146C1
DEFLECTOR, plenum box
1шт.
938016R1
FLANGE NUT,Flg, USR, 1/4"-20
1/4 C-Z flange lock
4шт.
937059R1
SCREW,Serr, M10 x 70mm, Cl 10.9
1/4 x 1/2 C-Z slt truss-hd
4шт.
36
165147C1
DEFLECTOR, plenum box
1шт.
938016R1
FLANGE NUT,Flg, USR, 1/4"-20
1/4 C-Z flange lock
4шт.
937059R1
SCREW,Serr, M10 x 70mm, Cl 10.9
1/4 x 1/2 C-Z slt truss-hd
4шт.
37
165148C1
DEFLECTOR, plenum box
1шт.
938016R1
FLANGE NUT,Flg, USR, 1/4"-20
1/4 C-Z flange lock
4шт.
937059R1
SCREW,Serr, M10 x 70mm, Cl 10.9
1/4 x 1/2 C-Z slt truss-hd
4шт.
38
165149C1
DEFLECTOR, plenum box
1шт.
938016R1
FLANGE NUT,Flg, USR, 1/4"-20
1/4 C-Z flange lock
4шт.
937059R1
SCREW,Serr, M10 x 70mm, Cl 10.9
1/4 x 1/2 C-Z slt truss-hd
4шт.
39
165150C1
DEFLECTOR, plenum box
1шт.
938016R1
FLANGE NUT,Flg, USR, 1/4"-20
1/4 C-Z flange lock
4шт.
937059R1
SCREW,Serr, M10 x 70mm, Cl 10.9
1/4 x 1/2 C-Z slt truss-hd
4шт.
40
580873R1
NUT, fan shaft lub hose
1шт.
41
21450R1
ADAPTER,1/4"-1/8 NPTF
1/4 str lub fitting
1шт.
42
165163C92
DEFLECTOR ASSY, center
1шт.
938016R1
FLANGE NUT,Flg, USR, 1/4"-20
1/4 C-Z whiz lock
2шт.
937059R1
SCREW,Serr, M10 x 70mm, Cl 10.9
1/4 x 1/2 C-Z slt truss-hd
2шт.
43
165299C1
SHEET, air duct filler, serial no. 1972 and below
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z flange lock
5шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 C-Z slt truss-hd
5шт.
44
170563C1
ANGLE, plenum front door, serial no. 1973 and above
1шт.
938016R1
FLANGE NUT,Flg, USR, 1/4"-20
1/4 C-Z whiz lock
2шт.
937059R1
SCREW,Serr, M10 x 70mm, Cl 10.9
1/4 x 1/2 C-Z whiz lock
2шт.
45
473092R1
FLANGED BEARING
fan shaft outer bearing
1шт.
46
167992C1
BRACE, fan air duct
1шт.
18655R1
BOLT,Hex, 1/4"-20 x 1", G2
1/4 x 1 C-Z hex-hd mach
2шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
2шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
2шт.
47
167994C1
ANGLE, plenum box lower right side
1шт.
48
167993C1
SUPPORT, fan housing
1шт.
49
160826C91
SCREEN ASSY, separator fan, standard
1шт.
565093R1
SCREW
1/4 x 3/4 washer face hex-hd
10шт.
21870R1
WASHER
17/64 x 3/4 x 16 ga C-Z
10шт.
50
167584C2
SCREEN ASSY, separator fan bar, separator fan bar screen attach
1шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
3шт.
52
167583C1
SUPPORT, separator fan bar screen, separator fan bar screen attach
1шт.
938016R1
FLANGE NUT,Flg, USR, 1/4"-20
1/4 C-Z whiz lock
3шт.
937059R1
SCREW,Serr, M10 x 70mm, Cl 10.9
1/4 x 1/2 C-Z slt truss-hd
3шт.
53
165093C91
WINDBOARD ASSY, lower
1шт.
54
165091C2
BAR, windboard adjusting
1шт.
585614R1
PIN
Q.A.
2шт.
M92150
PIN
5/16 x 3/4 std hd
2шт.
55
DOOR ASSY, fan air duct, for service order 170314C91 door attach
1шт.
18654R1
BOLT,Hex, 1/4" - 20 x 3/4", Gr 2
1/4 x 3/4 hex-hd
1шт.
18764R1
HARDWARE,Hex, 5/16"-18 x 3/4", G2
BOLT, 5/16 x 3/4 hex-hd
1шт.
120376
NUT,5/16"-18, G5
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 slt truss-hd
1шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, , Attach kind 154 code 6433 5/16"
1шт.
56
170558C1
DOOR ASSY, plenum box front
1шт.
57
611044R1
AXLE PIN,6.35mm OD
PIN, locking
2шт.
121223
COTTER PIN,1/16" x 3/4"
PIN, SPLIT (COTTER), 1/16" x 3/4"
2шт.
21784R1
WASHER
17/64 x 1/2 x 16 ga C-Z
2шт.
58
606245R1
SPRING
locking pin
2шт.
59
170883C1
SHEET, air duct filler, serial no. 1973 and above
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z whiz lock
5шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 C-Z whiz lock
5шт.
60
156010C91
BEARING
ASSY, fan shaft inner, serial no. 1972 and below
1шт.
60
473097R91
BEARING
ASSY, fan shaft inner, serial no. 1973 and above
1шт.
61
557995R11
COLLAR
ASSY, inner bearing locking, serial no. 1972 and below
1шт.
61
455104R11
COLLAR
ASSY, inner bearing locking, serial no. 1973 and above
1шт.
115321
SET SCREW,Hex Skt, 5/16"-18 x 5/16"
SCREW, 5/16 x 5/16 cup PT soc-hd set
1шт.
62
939461R1
FLANGE
fan shaft inner bearing, serial no. 1972 and below
1шт.
62
473092R1
FLANGED BEARING
fan shaft inner bearing, serial no. 1973 and above
1шт.
63
670375R11
FLANGE
ASSY, fan shaft inner bearing, serial no. 1972 and below
1шт.
63
473092R91
FLANGE ASSY, fan shaft inner bearing, serial no. 1973 thru 3393
1шт.
63
489871R1
FLANGE
ASSY, fan shaft inner bearing, serial no. 3394 and above
1шт.
18508R1
CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd
BOLT, 3/8 x 3/4 C-Z sq-nk crg
3шт.
120377
NUT,3/8" - 16, Gr 5
3шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
3шт.
Выбрано товаров: 192
