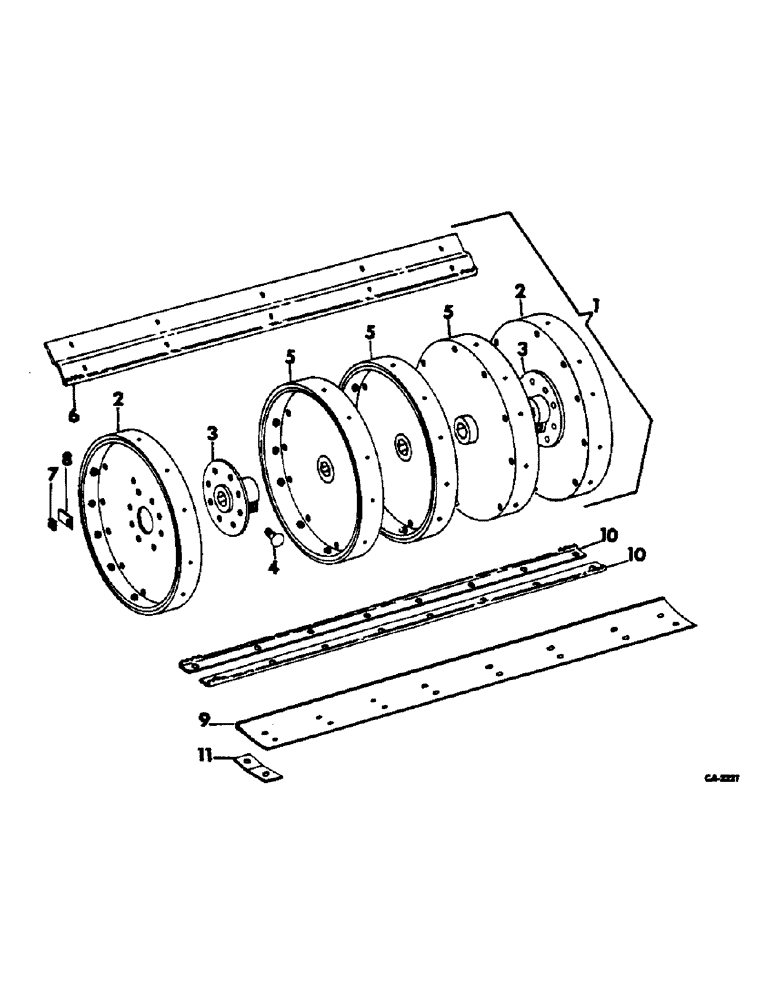

Запчасти Case IH 815 (R-37) - SEPARATOR, GROUND EAR CORN FEED CYLINDER, SERIAL NO. 4689 AND ABOVE Separation

1

172483C91

CYLINDER ASSY, corn grinder, includes ref nos. 2 thru 8

1шт.

2

172456C91

RETAINER ASSY, grinder cyl outer, includes ref no. 3

2шт.

120377

NUT,3/8" - 16, Gr 5

16шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

16шт.

3

172123C1

HUB, grinder cyl retainer

2шт.

104113

RIVET,But Hd, 3/8" x 1"

3/8 x 1 B head

16шт.

4

591514R1

CARRIAGE BOLT,1/2" - 13 x 2 3/4", Grade 5

BOLT, 1/2 x 2-3/4 znp crg type 5

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

5

172455C1

RETAINER ASSY, grinder cyl inner

3шт.

6

155118C11

BAR ASSY, grinder cyl sawtooth

12шт.

77746H

SCREW,Hex, 1/2" - 20 x 1 3/4", Gr 8

BOLT, 1/2-20 x 1-3/4 hex-hd type 8

60шт.

138549

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

60шт.

7

23760K

STRIP, cylinder balance

1шт.

8

629903R1

STRIP, cylinder balance

1шт.

9

161715C91

SUPPORT ASSY, concave sawtooth bar

1шт.

181698

BOLT,Hex, 1/2" - 20 x 1 1/4", Gr 5

SCREW, 1/2-20 x 1-1/4 hex-hd cap

6шт.

120384

WASHER,1/2"

LOCK, 1/2"

6шт.

10

936367R1

BAR, concave sawtooth angle

2шт.

161737C1

BOLT, 7/16 x 3-3/4 plow type 4

16шт.

18526R1

LOCK NUT,7/16"-14, GB

NUT, 7/16 ESNA lock

16шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

16шт.

11

936372R1

BRACE, concave sawtooth angle

8шт.
