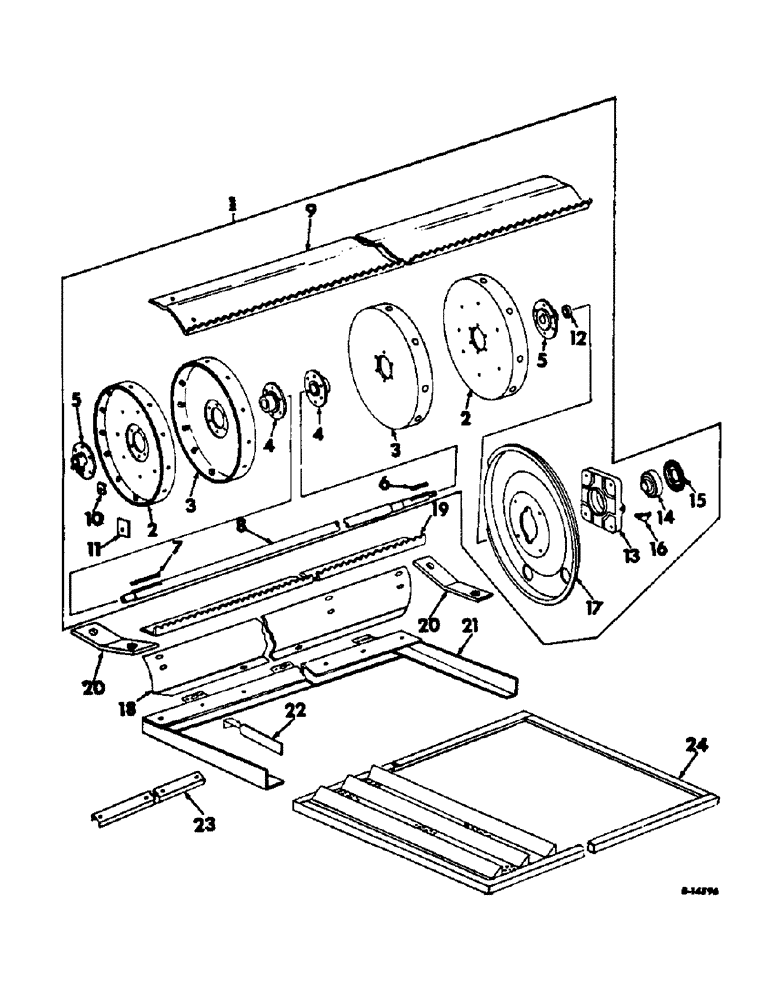

Запчасти Case IH 815 (R-35) - SEPARATOR, GROUND EAR CORN FEED, SERIAL NO. 4688 AND BELOW Separation

1

158973C91

CYLINDER ASSY, corn grinder, includes ref nos. 2 thru 17

1шт.

2

161833C91

RETAINER ASSY, corn grinder cyl outer

2шт.

120377

NUT,3/8" - 16, Gr 5

16шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

16шт.

3

161776C91

RETAINER ASSY, corn grinder cyl inner

3шт.

4

161779C91

HUB ASSY, cylinder center retainer

2шт.

104113

RIVET,But Hd, 3/8" x 1"

3/8 x 1 small B head

16шт.

5

161838C1

HUB, cylinder outer

2шт.

18709R1

BOLT,Short NK, 1/2"-13 x 2 3/4", G2

1/2 x 2-3/4 C-Z sq-nk crg

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

NLS

NO LONGER SERVICED

3/8 x 1 small B head

16шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

6

Q51

KEY,3/8" Sq x 2 1/2", Par

1шт.

7

Q1432

KEY,3/8" Sq x 5", Par

3/8 x 5 sq parallel

1шт.

8

160283C11

SHAFT ASSY, cylinder

1шт.

522779R1

WASHER, 1-25/32 x 2-3/4 x 1/4

1шт.

Q3489

WASHER

1-25/32 x 2-1/2 x 16 ga

3шт.

9

155118C11

BAR ASSY, cylinder sawtooth

12шт.

77746H

SCREW,Hex, 1/2" - 20 x 1 3/4", Gr 8

BOLT, 1/2-20 x 1-3/4 hex-hd mach type 4

60шт.

138549

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

60шт.

10

23760KA

STRIP, cylinder balance

20шт.

11

629903R1

STRIP, cylinder balance

20шт.

12

566317R1

BUSHING, cylinder shaft

1шт.

13

939623R11

HOUSING

ASSY, cylinder shaft right brg, includes ref nos. 14 & 15

1шт.

14

939621R91

BEARING

ASSY, cylinder shaft right

1шт.

15

939624R91

SEAL

SEAL, cylinder shaft right brg oil

1шт.

16

16964R91

FITTING

1/4 90 deg elbow lub

1шт.

17

157467C91

COVER ASSY, cylinder right end

1шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

18

161715C91

SUPPORT ASSY, concave sawtooth bar

1шт.

181698

BOLT,Hex, 1/2" - 20 x 1 1/4", Gr 5

SCREW, 1/2-20 x 1-1/4 C-Z hex-hd

6шт.

120384

WASHER,1/2"

LOCK, 1/2"

6шт.

19

936367R1

BAR, concave sawtooth angle

2шт.

161737C1

BOLT, 7/16 x 3-3/4 C-Z 3 plow type 4

16шт.

18526R1

LOCK NUT,7/16"-14, GB

NUT, 7/16 essna lock

16шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

16шт.

20

936372R1

BRACE, concave sawtooth angle

8шт.

21

161725C91

EXTENSION ASSY, chaffer

1шт.

22

161731C1

FINGER, chaffer extension

42шт.

23

161732C1

CHANNEL, chaffer extension finger

1шт.

18654R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4 x 3/4 C-Z hex-hd mach

7шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

7шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

7шт.

24

158975C91

SIEVE ASSY, chaffer 3/4 dia holes, parts accessories

1шт.
