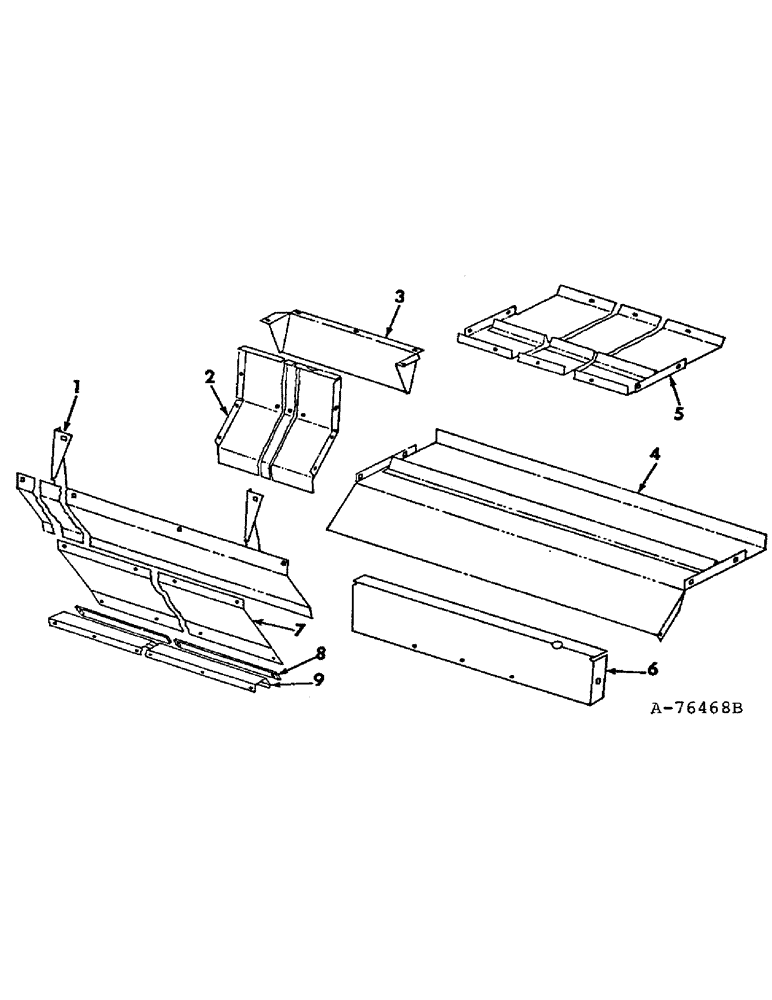

Запчасти Case IH 815 (R-34) - SEPARATOR, CYLINDER AND CYLINDER BEATER DEFLECTORS Separation

1

160646C91

DEFLECTOR ASSY, cylinder, rice, serial no. 1972 and below

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

10шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt truss-hd

10шт.

1

170242C1

DEFLECTOR ASSY, cylinder, serial no. 1973 thru 4240, rice, grain, bean & windrow special

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

2шт.

2

167589C1

DEFLECTOR, cylinder front, grain, bean, windrow and corn special, serial no. 4240 and below

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange whiz lock

6шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 C-Z slt truss-hd

9шт.

3

168474C1

BAFFLE, tailings delivery opening

1шт.

4

160289C91

DEFLECTOR ASSY, cylinder beater

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

4шт.

172455

SELF-TAP SCREW,Sl Hex, 5/16" - 18 x 3/4"

SCREW, 5/16 x 3/4 hex-hd

1шт.

5

167591C1

DEFLECTOR ASSY, cylinder, serial no. 4240 and below

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

4шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 C-Z slt truss-hd

7шт.

6

170171C1

DEFLECTOR, cylinder front, rice, serial no. 1973 thru 4240

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

2шт.

161945R1

SCREW, 5/16 x 1 C-Z whiz lock

5шт.

7

174817C1

DEFLECTOR, cylinder, serial no. 4241 and above, not windrow special

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

3шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

3шт.

8

174819C1

PLATE, cylinder door deflector, serial no. 4241 and above, not windrow special

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

3шт.

161945R1

SCREW, 5/16 x 1 C-Z flange lock

3шт.

9

174821C1

SUPPORT, cylinder deflector lower, serial no. 4241 and above, not windrow special

1шт.

175500C91

PACKAGE, cylinder front door deflector, parts accessories, for all comb. except windrow special, serial no. 4240 and below, includes ref nos. 7, 8 and 9

1шт.

177196C1

SUPPORT, cylinder beater deflector

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16 x 1/2 flange lock

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.
