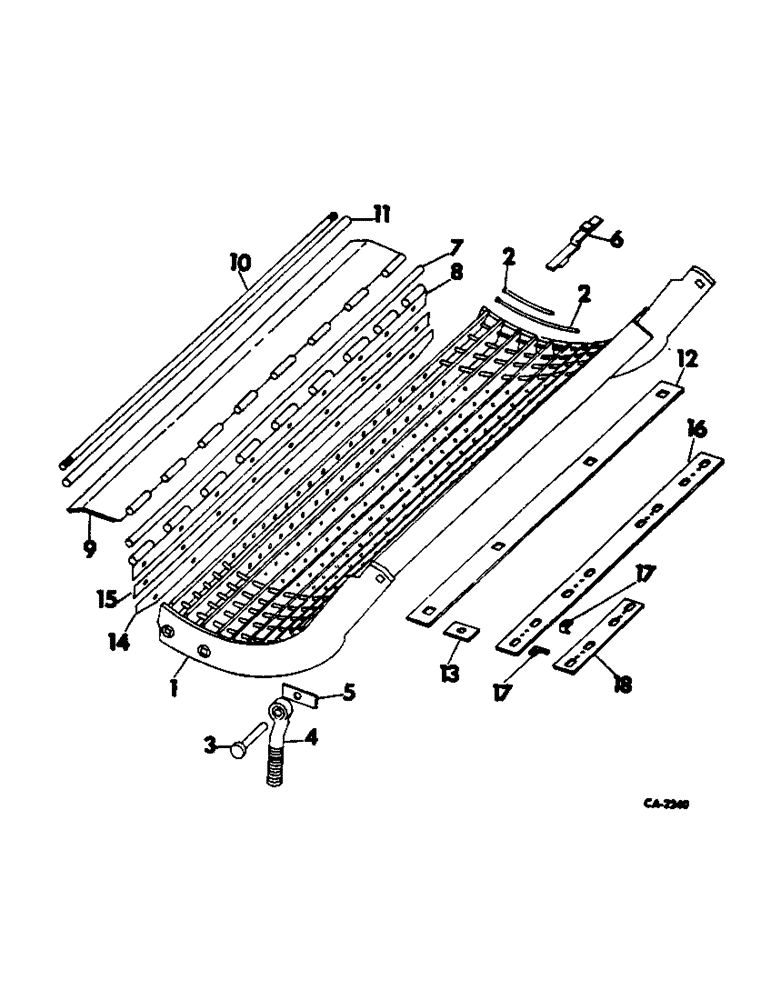

Запчасти Case IH 815 (R-32) - SEPARATOR, CONCAVE AND EXTENSION Separation

1

174557C91

CONCAVE

ASSY, high wire, 1/4 in. dia wire, standard for corn special, optional for rasp bar cylinder, not windrow special, includes ref no. 2

1шт.

1

633566R93

CONCAVE

ASSY, low wire, includes ref no. 2, for rasp bar cylinder, standard for grain & windrow special, optional for bean & rice special

2шт.

2

564023R1

ELECTRICAL WIRE

ROD, concave plain, low wire, standard for grain & windrow special, optional for bean & rice special

46шт.

2

588837R1

ROD

concave plain, high wire 3/16 in. dia wire, optional for rasp bar cylinder, not windrow special

47шт.

2

174556C1

ELECTRICAL WIRE

ROD, concave plain, high wire 1/4 in. dia wire, optional for rasp bar cylinder, not windrow special

42шт.

2

565571R1

ELECTRICAL WIRE

ROD, concave half, standard for grain & windrow special, optional for bean & rice special

48шт.

3

166051C1

CARRIAGE BOLT,#3, 5/8" - 11 x 2 1/4", Gr 8

BOLT, 5/8 x 2-1/4 no. 3 plow

6шт.

21434R1

NUT,5/8"-11, G8

5/8 C-Z hex

6шт.

366866C1

LOCK WASHER,5/8"

5/8"

6шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

1шт.

4

157641C1

BOLT, concave rear adj

2шт.

280954

NUT,3/4"-10, G5

4шт.

366112R1

WASHER

25/32 x 1-1/4 x 11 ga

4шт.

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

.65 x 1.3 x .12 C-Z

1шт.

5

565572R1

SEALING STRIP

concave rear adj bolt slot

2шт.

6

634626R91

SUPPORT

GAUGE ASSY, concave and cyl check

1шт.

7

589386R1

ROD

concave front extension hinge

1шт.

8

629683R1

HINGE

concave front extension

1шт.

414-812

BOLT,Hex, 1/2" - 20 x 3/4", Gr 5

SCREW, 1/2-20 x 3/4 C-Z hex-hd cap

6шт.

86837293

SHAFT

1/2-20 x 1 C-Z hex-hd cap

6шт.

120384

WASHER,1/2"

LOCK, 1/2"

6шт.

9

629649R91

EXTENSION ASSY, concave front, grain, rice & corn special w/quik attach feeder

1шт.

9

629682R1

EXTENSION

concave front, grain, rice & corn special w/bolt attach feeder

1шт.

9

634176R1

EXTENSION

concave front, windrow special

1шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 C-Z hex-hd mach

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

10

151189C1

ROD, concave extension support, grain, rice and corn special

1шт.

482253R1

NUT, 1/2 C-Z flange lock

2шт.

11

160928C1

SPACER, concave extension support, grain, rice and corn special

1шт.

12

654923R1

STRAP, concave filler, special

3шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

9шт.

120377

NUT,3/8" - 16, Gr 5

9шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

9шт.

3587H

WASHER, 13/32 x 9/16 x 16 ga

27шт.

13

585209R1

WASHER, concave filler strap bolt, special

9шт.

14

632068R1

BAR

RETAINER, concave front rod

1шт.

414-812

BOLT,Hex, 1/2" - 20 x 3/4", Gr 5

1/2 x 3/4 C-Z hex-hd mach

6шт.

120384

WASHER,1/2"

LOCK, 1/2"

6шт.

15

632403R1

BAR

RETAINER, concave front extension, grain, rice and corn special

1шт.

16

174547C91

STRIP

ASSY, concave filler, for use w/1/4 in. dia wire

3шт.

17

174549C1

CLIP

concave filler strip, for use w/1/4 in. dia wire

48шт.

104066

RIVET,But Hd, 3/16" x 9/32"

3/16 x 3/8 B-HD

48шт.

18

174550C91

STRIP

ASSY, concave filler short, for use w/1/4 in. dia wire

3шт.
