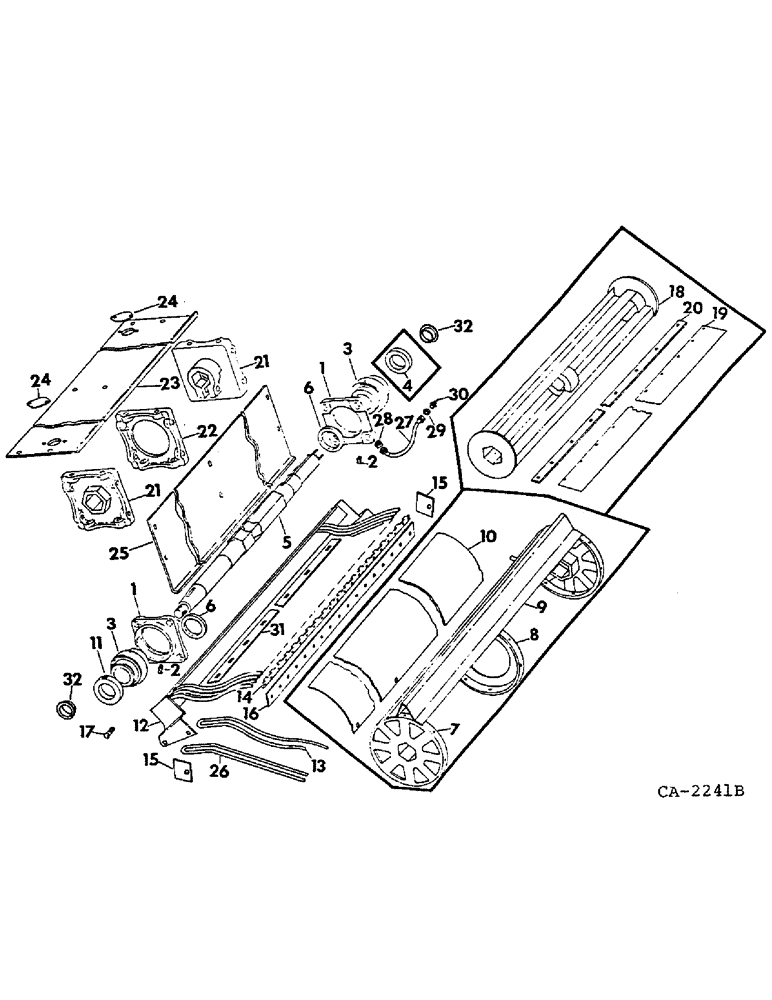

Запчасти Case IH 815 (R-30) - SEPARATOR, CYLINDER BEATER AND GRATE Separation

1

160072C11

HOUSING ASSY, cyl beater brg, includes ref nos. 3 and 4, for V-304 engine, serial no. 3601 and below

2шт.

1

160073C11

HOUSING ASSY, cyl beater brg, includes ref nos. 3 and 4, for V-345 engine and diesel, serial no. 3601 and below

2шт.

1

172316C11

HOUSING

ASSY, cyl beater brg, for V-304 engine, serial no. 3602 and above

2шт.

1

172317C11

HOUSING

ASSY, cyl beater brg, for V-345 engine and diesel, serial no. 3602 and above

2шт.

2

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING, 1/4-45 deg lub, not used RH w/lub hose

2шт.

3

632036R91

BALL BEARING,1.938" ID x 90 mm OD x 1.9375"

ASSY, cyl beater ball, for V-304 engine, serial no. 3601 and below

2шт.

3

160080C91

BALL BEARING,2.188" ID x 100 mm OD x 2.1875"

BEARING ASSY, cyl beater ball, for V-345 engine and diesel, serial no. 3601 and below

2шт.

3

172408C91

BALL BEARING,49.21mm ID x 90mm OD x 23mm W

BEARING ASSY, cyl beater ball, for V-304 engine, serial no. 3602 and above

2шт.

3

172406C91

BEARING ASSY,55.56mm ID x 100mm OD x 25mm W

cyl beater ball, for V-345 engine and diesel, serial no. 3602 and above

2шт.

4

939627R91

SEAL

SEAL ASSY, cyl beater brg, for V-304 engine, serial no. 3601 and below

2шт.

4

160082C91

SEAL

SEAL, cyl beater brg, for V-345 engine and diesel, serial no. 3601 and below

2шт.

5

160195C21

SHAFT ASSY, cyl beater, for V-304 engine

1шт.

5

167986C21

SHAFT ASSY, cyl beater, for V-345 engine and diesel

1шт.

20290R1

LOCK NUT,1"-14, G5

NUT, 1-14 C-Z hex lock

2шт.

577129R1

WASHER, 1-1/32 x 2 x 3/16

2шт.

936727R1

WASHER,26.16mm ID x 56.9mm OD x 6.35mm Thk

1-1/32 x 2-1/4 x 1/4

1шт.

U14294

WASHER

1-15/16 x 2-7/8 x 16 ga

5шт.

21750R1

WASHER

1-29/32 x 2-1/2 x 16 ga

1шт.

6

629712R1

SPACER

cyl beater shaft inner, for V-304 engine

1шт.

6

160236C1

BUSHING

SPACER, cyl beater shaft inner, 2 used serial no. 4240 and below, 1 used RH serial no. 4241 & above, for V-345 engine and diesel

1шт.

7

157934C1

HUB, cyl beater outer, serial no. 4240 and below, for V-304 engine

2шт.

7

160074C1

HUB, cyl beater outer, serial no. 4240 and below, for V-345 engine and diesel

2шт.

8

166987C1

HUB, cyl beater center, serial no. 4240 and below

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8 x 1-1/4 C-Z hex-hd cap

24шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

24шт.

469668R1

WASHER

13/32 x 1 x 16 ga

24шт.

9

157994C1

SUPPORT, cyl beater cover, serial no. 4240 and below, for V-304 engine

4шт.

9

167991C1

SUPPORT

cyl beater cover, serial no. 4240 and below, for V-345 engine and diesel

4шт.

10

157990C91

STRIP ASSY, cyl beater LH, serial no. 4240 and below, for V-304 engine

2шт.

10

167987C1

SECTION ASSY, cyl beater LH, serial no. 4240 and below, for V-345 engine and diesel

1шт.

10

157992C91

STRIP ASSY, cyl beater RH, serial no. 4240 and below, for V-304 engine

2шт.

10

167989C1

SECTION ASSY, cyl beater RH, serial no. 4240 and below, for V-345 engine and diesel

2шт.

11

618032R11

COLLAR

ASSY, cyl beater shaft brg LH lkg, for V-304 engine

1шт.

11

612023R11

COLLAR ASSY.

COLLAR ASSY, cyl beater shaft brg LH lkg, for V-345 engine and diesel

1шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8 x 3/8 hex-soc-hd cup PT set

1шт.

12

158003C95

GRATE ASSY, cyl beater finger, not windrow special, includes ref nos. 14, 16 and 26

1шт.

12

175826C91

GRATE ASSY, cyl beater finger, for windrow special, includes ref nos. 13, 14 and 16

1шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2 x 1-1/4 C-Z sq-nk crg

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga

2шт.

13

170418C2

FINGER

cylinder beater grate, for windrow special

22шт.

18685R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/2", Gr 2

BOLT, 3/8 x 1-1/2 C-Z sq-nk crg

22шт.

120377

NUT,3/8" - 16, Gr 5

22шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

22шт.

14

569389R1

CLAMP, cyl beater grate finger

1шт.

15

568276R1

SEAL, cyl beater finger grate adj

2шт.

16

170533C1

STRAP, finger clamp, serial no. 1973 and above

1шт.

17

152257C2

BOLT, cyl beater finger grate mount

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

18

161928C91

BEATER ASSY, cyl, flexible blade cyl w/V-304 engine

1шт.

18

168130C1

BEATER ASSY, cyl, flexible blade cyl w/V-345 engine or diesel

1шт.

19

161932C1

FLAP, cyl beater, flexible blade cylinder

4шт.

20

161933C1

BAR, cyl beater flap, flexible blade cylinder

4шт.

120376

NUT,5/16"-18, G5

28шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

28шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

28шт.

21

174769C1

HUB

cylinder beater end, serial no. 4241 and above

2шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

SCREW, 1/2 x 2-1/2 hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

22

174770C1

HUB, cylinder beater center, serial no. 4241 and above

1шт.

23

174771C1

BLADE

cylinder beater first, serial no. 4241 and above

1шт.

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

SCREW, 1/2 x 1 znd flange lock

6шт.

24

634728R1

COVER

hub bolt access hole, serial no. 4241 and above

2шт.

276-1478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

SCREW, 1/4 x 1/2 hex-hd tap

4шт.

25

174772C1

BLADE

cylinder beater, serial no. 4241 and above

3шт.

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

SCREW, 1/2 x 1 znd flange lock

18шт.

26

174767C1

FINGER

cylinder beater grate, not windrow special

22шт.

18685C1

BOLT, 3/8 x 1-1/2 C-Z sq-nk crg

22шт.

120377

NUT,3/8" - 16, Gr 5

22шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

22шт.

27

937776R91

HOSE,0.14" ID x 14.00"

Lube, Cylinder Beater Shaft Right-Hand Bearing 0.14" ID x 14.00"

1шт.

28

21450R1

ADAPTER,1/4"-1/8 NPTF

lub fitting

1шт.

29

581873R1

TUBE NUT,4.8 mm Length

cyl beater shaft RH brg lub hose

1шт.

30

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 ns lub straight

1шт.

31

153181C1

STRAP CYL BEATER FINGER GRATE TIE, std corn & soy bean special, cylinder beater finger grate tie strap attachment

2шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z sq-nk crg

10шт.

120377

NUT,3/8" - 16, Gr 5

10шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

10шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

10шт.

177299C1

RING

cylinder beater bar, serial no. 4689 & above

2шт.

32

177299C1

RING

cylinder beater bar, serial no. 4689 and above

2шт.
