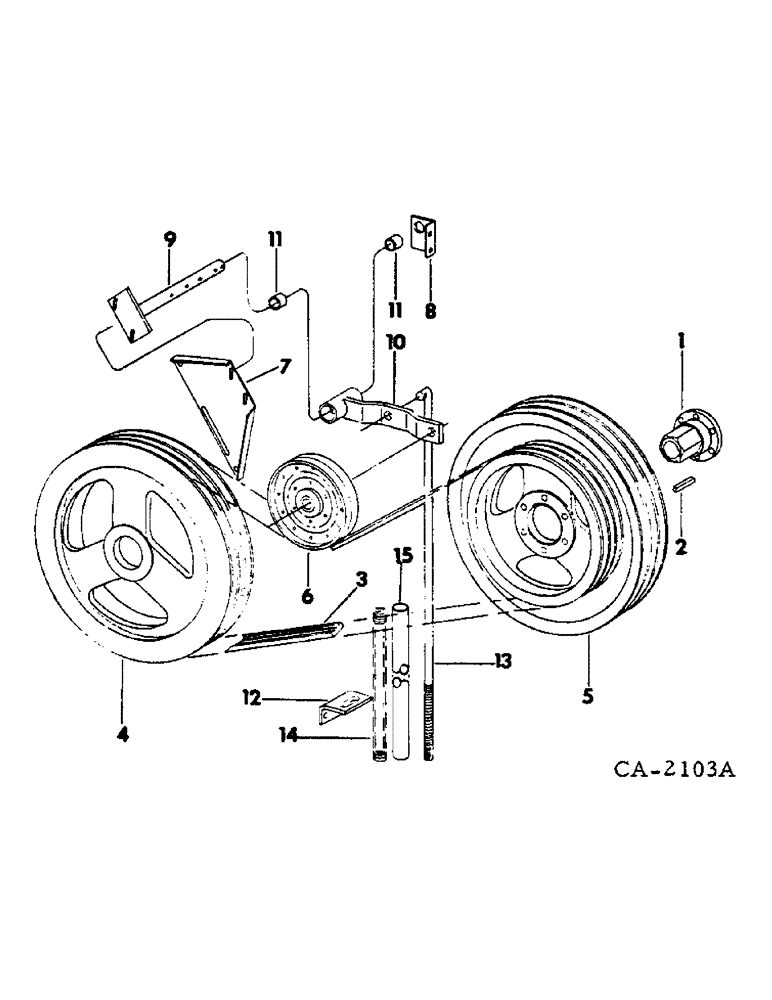

Запчасти Case IH 815 (R-29) - SEPARATOR, VARIABLE CYLINDER BELT AND PULLEY GRAIN RICE CORN AND WINDROW COMBINES S/N 3784 AND ABOVE Separation

1

160241C1

HUB

cylinder driven sprocket

1шт.

9418646

NUT,7/16"-14, G8

7/16 C-Z hex type 8

6шт.

23105R1

SCREW, 7/16 x 3/4 hex-hd type 8 Hex, 7/16"-14 x 2 3/4", G8

6шт.

366863C1

LOCK WASHER

WASHER, 7/16 C-Z rib lock

6шт.

2

158416C1

KEY

3/8 x 4.2 sq parallel hardened

1шт.

3

174509C1

BELT,0.630" W x 134.35" L, 3 Ribs

V-BELT , Cylinder drive 0.630" W x 134.35" L, 3 Ribs

1шт.

4

174507C1

PULLEY, cylinder drive 15.5 OD

1шт.

226092R1

BOLT,Hex, 7/16" - 14 x 1 1/2", Gr 8

7/16 x 1-1/2 hex-hd type 8

6шт.

366863C1

LOCK WASHER

WASHER, 7/16 C-Z rib lock

6шт.

5

174508C1

PULLEY, cylinder driven 20 OD

1шт.

21901R1

BOLT,Hex, 7/16" - 14 x 2", Gr 8

7/16 x 2 C-Z hex-hd type 8

6шт.

9418646

NUT,7/16"-14, G8

7/16 C-Z hex type 8

6шт.

366863C1

LOCK WASHER

WASHER, 7/16 C-Z rib lock

6шт.

6

174510C91

PULLEY ASSY.

PULLEY, cyl drive tightener 8 OD

1шт.

18837R1

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 2

3/4 x 1-3/4 C-Z hex-hd mach

1шт.

7

174518C1

BRACKET, cyl drive tgtnr outer pivot

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

3шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 C-Z flange lock

3шт.

8

174517C1

BRACKET, cyl drive inner tgtnr pivot

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 C-Z flange lock

2шт.

9

174514C1

SHAFT ASSY, cyl drive tgtnr pivot

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 C-Z flange lock

2шт.

517843R1

COTTER PIN

PIN, 1/4 x 1/2 C-Z qa

4шт.

591715R1

WASHER

1-1/32 x 1-1/2 x 16 ga

3шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z

2шт.

20704R1

WASHER

1-1/32 x 1-1/2 x 11 ga

4шт.

10

174511C91

ARM

ASSY, cyl drive belt tightener, includes ref no. 11

1шт.

11

583346R1

BUSHING,25.45mm ID x 28.55mm OD x 25.4mm L

cyl drive belt tightener arm

2шт.

12

174521C1

ANCHOR, cyl drive belt draw bolt

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

1шт.

13

174520C1

ROD

cyl drive belt draw bolt

1шт.

231-1448

NUT,1/2"-13, GB

1/2 C-Z lock

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

607895R1

WASHER

17/32 x 1 x 11 ga C-Z

1шт.

460908R1

WASHER

17/32 x 1-1/2 x 11 ga

2шт.

14

174519C1

SPRING

cyl drive belt draw bolt

1шт.

15

175304C1

TUBE,0.995" ID, 1.125" OD, 15.2" Length

drive belt tightener stop

1шт.
