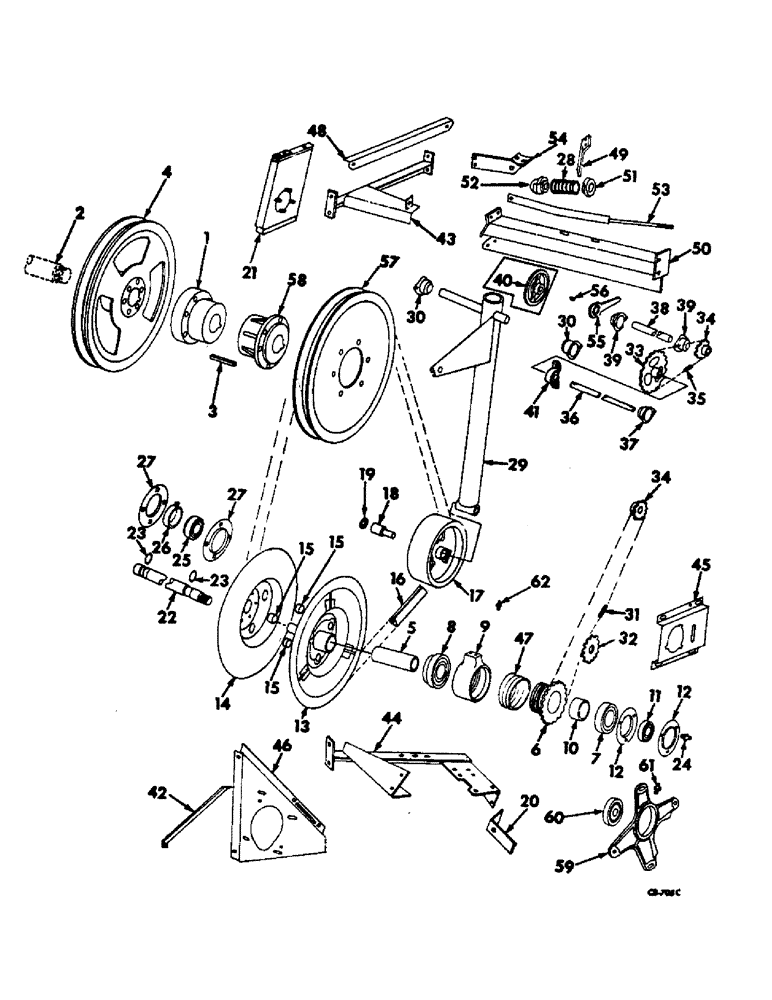

Запчасти Case IH 815 (R-24) - SEPARATOR, VARIABLE CYLINDER DRIVE, SERIAL NO. 1973 AND ABOVE Separation

1

160279C2

HUB, cylinder drive sprocket, serial no. 4240 and below

1шт.

2

SHAFT, cylinder, refer to cylinder, slip clutch and speed indicator unit for listing

1шт.

3

161954C1

KEY, 1/2 x 4.2 sq parallel hardened, serial no. 4240 and below

1шт.

3

172303C1

KEY

1/2 x 6 sq parallel hardened, serial no. 4241 and above

1шт.

4

163876C1

PULLEY, variable cylinder drive 20 in. OD, serial no. 4240 and below

1шт.

5

173158C1

SLEEVE

variable cylinder pulley

1шт.

6

168199C1

SLEEVE

variable cyl pulley control, serial no. 3783 and below

1шт.

6

174277C1

SLEEVE

variable cyl pulley control, serial no. 3784 and above

1шт.

7

168215C91

BALL BEARING

BEARING, pulley control male sleeve, serial no. 3783 and below

1шт.

7

174279C91

BALL BEARING,2.5" ID x 4.082 mm OD x 0.875 mm

BEARING, pulley control male sleeve, serial no. 3784 and above

1шт.

8

165992C91

BALL BEARING,2.778" ID x 4.266" OD x 0.875"

BEARING, variable cylinder control RH female sleeve

1шт.

9

168200C1

SLEEVE

variable cylinder pulley control LH

1шт.

10

168197C1

SPACER

variable cyl control RH sleeve, serial no. 3783 and below

1шт.

10

174278C1

SPACER

variable cyl control RH sleeve, serial no. 3784 and above

1шт.

11

455103R91

BEARING

variable cyl pulley jksft RH, for use w/ref no. 45

1шт.

12

617863R1

FLANGED BEARING

pulley jackshaft RH brg, for use w/ref no. 45

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk cag

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

13

163882C11

PULLEY

ASSY, variable cyl adj half drvn, for edible bean serial no. 3784 and above

1шт.

13

174185C1

PULLEY ASSY, variable cyl adj half drvn, for edible bean serial no. 3784 and above

1шт.

14

163883C11

PULLEY

ASSY, variable cyl fixed half, includes ref no. 15, for edible bean serial no. 3784 and above

1шт.

14

174184C91

PULLEY ASSY, variable cyl fixed half, includes ref no. 15, for edible bean serial no. 3784 and above

1шт.

454948

BOLT,Hex, 7/16" - 14 x 2 1/2", Gr 8

SCREW, 7/16 x 2-1/2 C-Z hex-hd cap type 8

6шт.

366863C1

LOCK WASHER

WASHER, 7/16 C-Z ribbed lock

6шт.

15

633433R1

BEARING

BUSHING, variable cylinder pulley

3шт.

16

164006C1

V-BELT,2.00" W x 116.48" L

Variable Cylinder Drive 2.00" W x 116.48" L

1шт.

17

164024C3

PULLEY

variable cyl drive belt idler

1шт.

18

559205R91

BEARING ASSY,15.92 mm ID x 30 mm OD x 82.55 mm

variable cylinder drive belt idler pulley

1шт.

19

559203R1

SNAP RING,#118, 1.260", Int, Spiral

RING, variable cylinder drive belt idler pulley

1шт.

20

168216C1

BAR

variable cylinder drive control stop

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 C-Z hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

21

168803C1

BRACKET ASSY, variable cylinder drive inner bearing

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

455000

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

SCREW, 1/2 x 1-1/4 C-Z hex-hd cap type 4

6шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

366864C1

LOCK WASHER,1/2"

1/2"

6шт.

607895R1

WASHER

17/32 x 1 x 11 ga C-Z

3шт.

22

173160C1

SHAFT

variable pulley jack

1шт.

19392R1

LOCK NUT,1 1/8"-12, G5

NUT, 1-1/8 znp nylon insert

1шт.

478258R1

WASHER

1-5/32 x 1-3/4 x 11 ga C-Z

1шт.

23

382432R1

O-RING,1.984" ID x 0.139" Width

2 x 2-1/4 x 1/8

2шт.

24

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 PTF 67-1-2 deg

1шт.

25

629723R91

BEARING ASSY,1.688" ID x 3.3465" OD x 1.6875"

ASSY, inner jackshaft ball, not relube bearing

1шт.

25

172404C91

BALL BEARING,42.86mm ID x 85mm OD x 22mm W

BEARING ASSY, inner jksft ball, relube bearing

1шт.

26

629724R11

COLLAR

COLLAR W/SET SCREW LKG

1шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8-16 x 3/8 hex-soc-hd cup PT set

1шт.

27

556080R1

FLANGED BEARING

inner jackshaft brg, not relube bearing

2шт.

27

152920C91

FLANGE

ASSY, inner jksft brg, relube bearing

1шт.

27

152921C1

FLANGE

inner jksft brg, relube bearing

1шт.

28

608347R1

SPRING

variable speed drive belt tightener

1шт.

29

168568C1

LEVER ASSY, variable cylinder drive belt tightener

1шт.

30

157428C91

BUSHING

BEARING, belt tightener pivot shaft side flange

2шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

31

CHAIN, variable speed cylinder adjusting control lower, use 121 links from 10 ft roll marked 569088R91, two connecting links 457113R91, one offset link 457114R91 and one roller link 457112R91

1шт.

32

171784C1

SPROCKET ASSY.

SPROCKET ASSY, adj chain tghtner 6T

1шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2 C-Z hex-jam

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 C-Z flange lock

1шт.

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

SCREW, 1/2 x 2 C-Z hex-hd cap

1шт.

33

164793C1

SPROCKET, cylinder drive control 18T

1шт.

21648R1

LOCK PIN,1/4" x 1 1/4", Slotted

Pin, 1/4" x 1 1/4", Slotted

1шт.

34

164302C1

SPROCKET ASSY.

SPROCKET, variable speed cylinder drive 8T

2шт.

21648R1

LOCK PIN,1/4" x 1 1/4", Slotted

Pin, 1/4" x 1 1/4", Slotted

2шт.

35

CHAIN, variable speed cylinder drive console adjusting, use 31 links from a 10 ft roll marked 569088R91 and one connecting link 457113R91

1шт.

36

164304C4

SHAFT, variable cyl speed upper control

1шт.

37

382508R91

BEARING ASSY,0.752" ID x 0.81"

BEARING, variable cylinder speed upper control shaft

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

2шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt truss-hd

2шт.

38

164303C2

SHAFT, variable speed control console

1шт.

21648R1

LOCK PIN,1/4" x 1 1/4", Slotted

Pin, 1/4" x 1 1/4", Slotted

1шт.

178375R1

WASHER

25/32 x 1-1/4 x 16 ga C-Z

1шт.

39

382508R91

BEARING ASSY,0.752" ID x 0.81"

BEARING, variable speed control console

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

40

164306C1

WHEEL, cylinder speed adjusting hand, serial no. 1972 and below

1шт.

21648R1

LOCK PIN,1/4" x 1 1/4", Slotted

Pin, 1/4" x 1 1/4", Slotted

1шт.

41

165909C91

BUSHING

BEARING, jackshaft upper control pillow block

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt truss-hd

2шт.

42

168295C1

BRACE, cylinder jackshaft bracket, serial no. 3783 and below

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

43

168291C1

SUPPORT ASSY, variable cylinder drive jackshaft upper

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

44

168286C2

SUPPORT ASSY, variable cylinder drive jackshaft lower front

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

45

BRACKET, variable cylinder drive jackshaft outer bearing, for service order ref no. 59 174182C91 bracket assy

1шт.

46

168283C1

SUPPORT, variable cylinder drive jackshaft outer brg bracket

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

7шт.

120377

NUT,3/8" - 16, Gr 5

7шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

7шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z

6шт.

47

168362C2

COVER

variable cyl drive control sleeve

1шт.

48

168294C1

ANGLE, variable cylinder drive upper jackshaft support tie

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

49

168753C1

PLATE, variable cylinder drive tightener frame

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 C-Z flange lock

2шт.

50

168575C1

ANCHOR ASSY, variable cylinder drive belt tightener

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

4шт.

18708R1

BOLT,Short NK, 1/2"-13 x 1 3/4", G2

1/2 x 1-3/4 C-Z sq-nk crg

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 C-Z flange lock

6шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

51

168579C1

RETAINER, variable cylinder drive belt tightener spring

1шт.

52

168580C1

RETAINER, variable cylinder drive belt tightener spring ball

1шт.

53

168581C1

LINK ASSY, variable cylinder drive tightener draw bolt

1шт.

22244R1

LOCK NUT

3/4 C-Z nylon insert

1шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

1шт.

23283R1

PIN, 3/4 x 1-1/2 std hd dld 3/4" x 1 1/2"

1шт.

366112R1

WASHER

25/32 x 1-1/4 x 11 ga C-Z

1шт.

54

168572C1

ANCHOR ASSY, variable cylinder drive tightener tie

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 C-Z flange lock

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z

1шт.

55

170282C1

HANDLE

cyl speed adjusting ratchet, serial no. 1973 and above

1шт.

56

124549

WOODRUFF KEY,#9, 3/16" x 3/4", HT

S/N 1973 and above #9, 3/16" x 3/4", HT

1шт.

57

172712C11

PULLEY

ASSY, variable cyl drive 20 inch OD, serial no. 4241 and above

1шт.

226092R1

BOLT,Hex, 7/16" - 14 x 1 1/2", Gr 8

7/16 x 1-1/2 znd hex-hd

6шт.

9418646

NUT,7/16"-14, G8

7/16 C-Z hex type 8

6шт.

390306R1

WASHER, .469 x .922 x .065 hard

6шт.

58

172713C1

HUB

variable cyl drive pulley, serial no. 4241 and above

1шт.

59

174182C91

BRACKET ASSY, jackshaft outer, includes ref nos. 60 and 61

1шт.

18685R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/2", Gr 2

BOLT, 3/8 x 1-1/2 sq-nk crg

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 C-Z flange lock

4шт.

181643

BOLT,Hex, 3/8" - 24 x 1 1/2", Gr 5

SCREW, 3/8 x 1-1/2 hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z

4шт.

60

174180C91

BALL BEARING

BEARING, jackshaft outer RH

1шт.

61

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 str lub

1шт.

62

219-86

LUBE NIPPLE,1/8" NPTF

FITTING, 1/8 str lub, serial no. 4241 and above

1шт.
