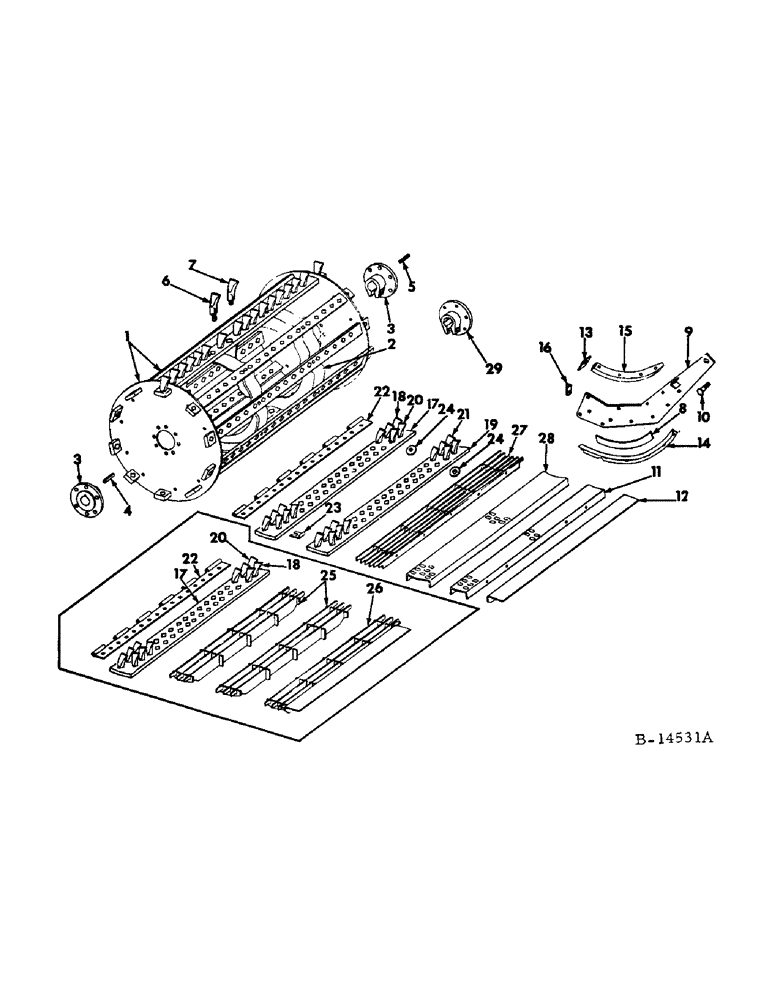

Запчасти Case IH 815 (R-15) - SEPARATOR, SPIKE TOOTH CYLINDER AND CONCAVE Separation

1

160068C91

CYLINDER ASSY, spike tooth, round shaft, serial no. 4240 and below, includes ref nos. 2, 3, 6 and 7

1шт.

1

172227C92

CYLINDER ASSY, spike tooth, hex shaft, serial no. 4241 and above, includes ref nos. 2, 6, 7 and 29

1шт.

2

567891R1

HEAD, cyl center

2шт.

104118

RIVET, 3/8 x 1-5/8 B-HD

20шт.

3

161854C1

HUB, cyl, round shaft, serial no. 4240 and below

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

180188

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

SCREW, 1/2 x 2-3/4 C-Z hex-hd cap

2шт.

104115

RIVET,But Hd, 3/8" x 1 1/4"

3/8 x 1-1/4 B-HD

16шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

4

Q1432

KEY,3/8" Sq x 5", Par

3/8 x 5 sq parrallel, round shaft, serial no. 4240 and below

1шт.

5

Q51

KEY,3/8" Sq x 2 1/2", Par

Round shaft, S/N 4240 and below 3/8" Sq x 2 1/2", Par

1шт.

6

155992C2

TOOTH

cyl middle

20шт.

NLS

NO LONGER SERVICED

9/16 C-Z hex

20шт.

120898

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

20шт.

7

155993C2

TOOTH

cyl

160шт.

102638

9/16 C-Z hex

160шт.

120898

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

160шт.

8

587764R1

SHIM

concave adj.

8шт.

9

567901R11

SUPPORT ASSY, concave LH

1шт.

9

567902R11

SUPPORT ASSY, concave RH

1шт.

18720R1

SCREW,Short NK, 5/8"-11 x 2", G2

BOLT, 5/8 x 2 znp sq-nk crg

2шт.

19019R1

CARRIAGE BOLT,#3, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z no. 3 plow

20шт.

120377

NUT,3/8" - 16, Gr 5

20шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 C-Z hex

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

20шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

10

166051C1

CARRIAGE BOLT,#3, 5/8" - 11 x 2 1/4", Gr 8

BOLT, 5/8 x 2-1/4 no. 3 plow type 8

4шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 C-Z hex

6шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

21796R1

WASHER

21/32 x 1 x 16 ga C-Z

4шт.

11

570566R1

GRATE, concave rear, bean special

1шт.

12

570568R1

EXTENSION, concave rear, bean special

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex-hd mach

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

13

567908R1

BAR

CLIP, concave lkg

2шт.

14

568137R1

RETAINER, concave lower LH

1шт.

14

568138R1

RETAINER, concave lower RH

1шт.

15

568135R1

SUPPORT

RETAINER, concave upper LH

1шт.

15

568136R1

SUPPORT

RETAINER, concave upper RH

1шт.

124824

NUT,Hex, 5/16" - 18

5/16 C-Z hex-jam

2шт.

180078

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

SCREW, 5/16 x 7/8 C-Z hex-hd cap

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

2шт.

16

568139R1

ANGLE

DEFLECTOR, concave LH

4шт.

16

568140R1

ANGLE

DEFLECTOR, concave RH

4шт.

17

155985C1

CONCAVE, front

1шт.

18

155993C2

TOOTH

front concave, short

1шт.

NLS

NO LONGER SERVICED

9/16 C-Z hex

1шт.

120898

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

1шт.

19

155985C1

CONCAVE, rear, bean special

1шт.

20

155992C2

TOOTH

concave, long

1шт.

102638

9/16-12 C-Z hex

1шт.

120898

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

1шт.

21

155993C2

TOOTH

rear concave, short, bean special

1шт.

NLS

NO LONGER SERVICED

9/16-12 C-Z hex

1шт.

120898

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

1шт.

22

155986C1

HINGE, front concave extension

1шт.

23

155984C1

SPACER, front concave, bean special

3шт.

24

936476R1

SQ HOLE WASHER

concave tooth

1шт.

25

574437R91

CONCAVE ASSY, bar, rice

2шт.

26

574461R91

CONCAVE ASSY, bar rear, rice

1шт.

27

570567R91

GRATE ASSY, concave bar, bean special

2шт.

28

570565R1

GRATE, concave, bean special

2шт.

29

172123C1

HUB, shaft, serial no. 4241 and above

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

104115

RIVET,But Hd, 3/8" x 1 1/4"

3/8 x 1-1/4 B-HD

16шт.

180188

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

SCREW, 1/2 x 2-3/4 hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.
