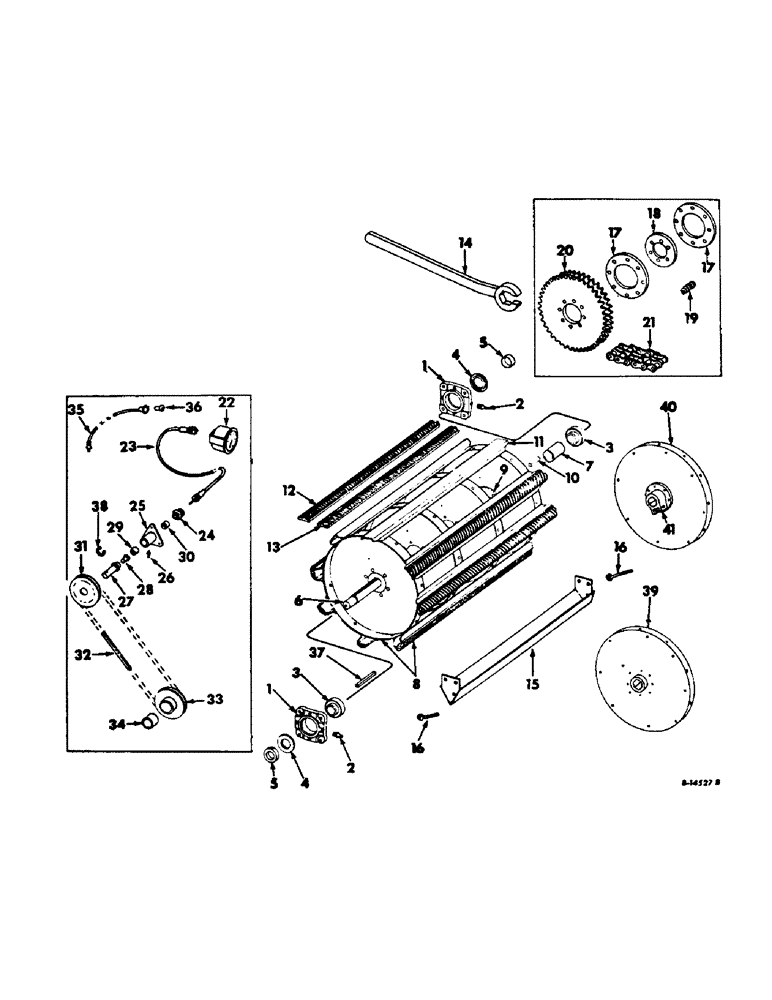

Запчасти Case IH 815 (R-13) - SEPARATOR, CYLINDER, CYLINDER SLIP CLUTCH AND SPEED INDICATOR Separation

1

939623R11

HOUSING

ASSY, cyl shaft brg, round shaft, serial no. 4240 and below, includes ref. no. 3

2шт.

1

172315C11

HOUSING

ASSY, cyl shaft bearing, hex shaft, serial no. 4241 and above, includes ref no. 3

2шт.

2

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING, 1/4-28 PTF 45 deg lub

2шт.

3

631988R91

BEARING ASSY,1.688" ID

cyl shaft, round shaft, serial no. 4240 and below

2шт.

3

172404C91

BALL BEARING,42.86mm ID x 85mm OD x 22mm W

BEARING, cyl shaft, hex shaft, serial no. 4241 and above

2шт.

4

939624R91

SEAL

SEAL, cyl shaft brg, round shaft, serial no. 4240 and below

2шт.

5

629724R11

COLLAR

COLLAR ASSY, lkg

1шт.

105592

SCREW, 3/8-16 x 3/8 hex-soc-hd

1шт.

6

160283C11

SHAFT ASSY, cyl round, serial no. 4240 and below

1шт.

6

172313C11

SHAFT ASSY, cyl hex, serial no. 4241 and above

1шт.

20290R1

LOCK NUT,1"-14, G5

NUT, 1-14 C-Z hex lock

1шт.

936727R1

WASHER,26.16mm ID x 56.9mm OD x 6.35mm Thk

1-21/32 x 2-1/4 x 1/4

1шт.

24552R1

WASHER

1-1/32 x 2 x 22 ga C-Z

1шт.

20705R1

WASHER

1-25/32 x 2-1/2 x 16 ga

7шт.

7

629692R1

SPACER, cyl shaft, round shaft, serial no. 4240 and below, std for grain, corn and windrow

1шт.

7

629713R1

SPACER

cyl shaft, hex shaft, serial no. 4241 and above, std for grain, corn and windrow

1шт.

8

160064C91

CYLINDER ASSY, rasp bar, round shaft, serial no. 4240 and below, std for grain, corn and windrow, includes ref nos. 11, 12 and 13

1шт.

8

165437C91

CYLINDER W/HARDENED BARS, rasp, round shaft, serial no. 4240 and below, for rice special, includes ref nos. 11, 12 and 13

1шт.

8

172121C91

CYLINDER ASSY, rasp bar, hex shaft, serial no. 4241 and above, std for grain, corn and windrow, includes ref nos. 11, 39, 40 & 41

1шт.

8

172126C91

CYLINDER ASSY, rasp bar, hex shaft, serial no. 4241 and above, for rice special, includes ref nos. 11, 39, 40 & 41

1шт.

9

161838C1

HUB, cyl shaft, round shaft, serial no. 4240 and below

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

104113

RIVET,But Hd, 3/8" x 1"

3/8 x 1 B-HD

32шт.

180188

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

SCREW, 1/2 x 2-3/4 hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

10

Q51

KEY,3/8" Sq x 2 1/2", Par

Round shaft, S/N 4240 and below 3/8" Sq x 2 1/2", Par

1шт.

11

633512R1

SUPPORT

cyl bar

8шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach, for balance

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z hex-hd mach, for balance

1шт.

18780R1

BOLT,Hex, 3/8"-16 x 1 3/4", G2

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

104096

RIVET,But Hd, 5/16" x 5/8"

5/16 x 5/8 B-HD

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

6шт.

12

654250R91

BAR

ASSY, cyl LH set of consists of 2 LH bars, std for grain, corn and windrow, special for bean

1шт.

12

935125R91

BAR ASSY.

BAR ASSY, cyl LH set, hardened, consists of 2 LH bars

1шт.

REF#12 SHOULD USE 633510R1 10/18/96

1шт.

13

654251R91

BAT

BAR ASSY, cyl RH set of consists of 2 RH bars, std for grain, corn and windrow, special for bean

1шт.

13

935126R91

BAR ASSY.

BAR ASSY, cyl RH set, hardened, consists of 2 RH bars, hardened

1шт.

181655

BOLT,Hex, 7/16" - 20 x 9/16", Gr 5

SCREW, 7/16 x 9/16 hex-hd cap

32шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

32шт.

REF#13 SHOULD USE 633511R1 10/18/96

1шт.

14

170432C1

IGNITION KEY

TOOL ASSY, cylinder rocking bar

1шт.

15

157508C92

MEMBER ASSY, cylinder stripper

1шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 C-Z sq-nk crg

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

607895R1

WASHER

17/32 x 1 x 11 ga C-Z

2шт.

16

634125R2

BOLT,3/8" - 16 x 4.62"

cyl stripper cross member adj

2шт.

12686R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1/2", Gr 2, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/2", G2, Full Thd

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

142619H

WASHER

13/32 x 3/4 x 11 ga C-Z

2шт.

17

158690C2

PLATE, cyl drive slip clutch outer

2шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, , Stover 3/8"-16, GB

8шт.

189305

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

SCREW, 3/8 x 3-1/2 hex-hd cap

8шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

8шт.

18

158691C1

PLATE, cylinder drive slip clutch inner

1шт.

19

M74156

SPRING

cylinder drive slip clutch

8шт.

20

161916C1

SPROCKET, cylinder drive 75-T, bean special

1шт.

20

158692C1

SPROCKET, cylinder drive 65-T standard

1шт.

20

570655R1

SPROCKET, cylinder drive 48-T, parts accessories

1шт.

20

174169C1

SPROCKET, cylinder drive 88T

1шт.

21

CHAIN, cyl drive ext, use 5 links from 10 ft roll marked 1316D, 3 connecting links 569206R91, 1 offset link 570988R91 & 1 roller link 1316D

1шт.

22

159884C91

INDICATOR

TACHOMETER ASSY, refer to section M

1шт.

23

164883C91

HOSE ASSY.

SHAFT ASSY, tachometer flexible

1шт.

24

164884C1

ADAPTER

UNION, tachometer flexible shaft

1шт.

25

164885C11

HOUSING ASSY, tachometer jksft support, includes ref nos. 29 and 30

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

26

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

27

173582C91

SHAFT

JACKSHAFT ASSY, tachometer, includes ref no. 28

1шт.

21796R1

WASHER

21/32 x 1 x 16 ga C-Z

5шт.

21471R1

WASHER

21/32 x 1 x 11 ga C-Z

1шт.

28

164892C1

BUSHING

tachometer flexible shaft drv

1шт.

29

490509R91

NEEDLE BEARING

ASSY, tachometer jksft outer

1шт.

30

336180R91

NEEDLE BEARING

ASSY, tachometer jksft inner

1шт.

31

164887C1

PULLEY

tachometer shaft driven 4 in. OD

1шт.

137258

COTTER PIN

3/16" x 1 3/4"

1шт.

32

167099C1

V-BELT,0.24" W x 53.96" L

Tachometer Shaft Drive 0.24" W x 53.96" L

1шт.

33

164879C2

PULLEY, tachometer shaft drive

1шт.

21750R1

WASHER

1-29/32 x 2-1/2 x 16 ga

4шт.

34

164229C1

SPACER, cylinder shaft right

1шт.

35

372546R91

CABLE

SOCKET ASSY, cyl tachometer light

1шт.

36

A14553

BULB

cyl tachometer light

1шт.

37

Q1432

KEY,3/8" Sq x 5", Par

3/8 x 5 sq parrallel, round shaft, serial no. 4240 and below

1шт.

38

324050R1

SNAP RING

RING, tachometer jksft snap

1шт.

39

172124C1

HEAD ASSY, cyl, hex shaft, serial no. 4241 and above

2шт.

40

172122C91

HEAD ASSY, cyl w/hub, hex shaft, serial no. 4241 and above, includes ref no. 41

2шт.

41

172123C1

HUB, cyl head, hex shaft, serial no. 4241 and above

1шт.

21330R1

NUT,1/2"-13, G8

1/2 C-Z hex

1шт.

NLS

NO LONGER SERVICED

3/8 x 1 B-HD

16шт.

181655

BOLT,Hex, 7/16" - 20 x 9/16", Gr 5

SCREW, 7/6-20 x 9/16 hex-hd cap

1шт.

20100R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 8

SCREW, 1/2 x 2-3/4 hex-hd cap

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

366864C1

LOCK WASHER,1/2"

1/2"

1шт.
