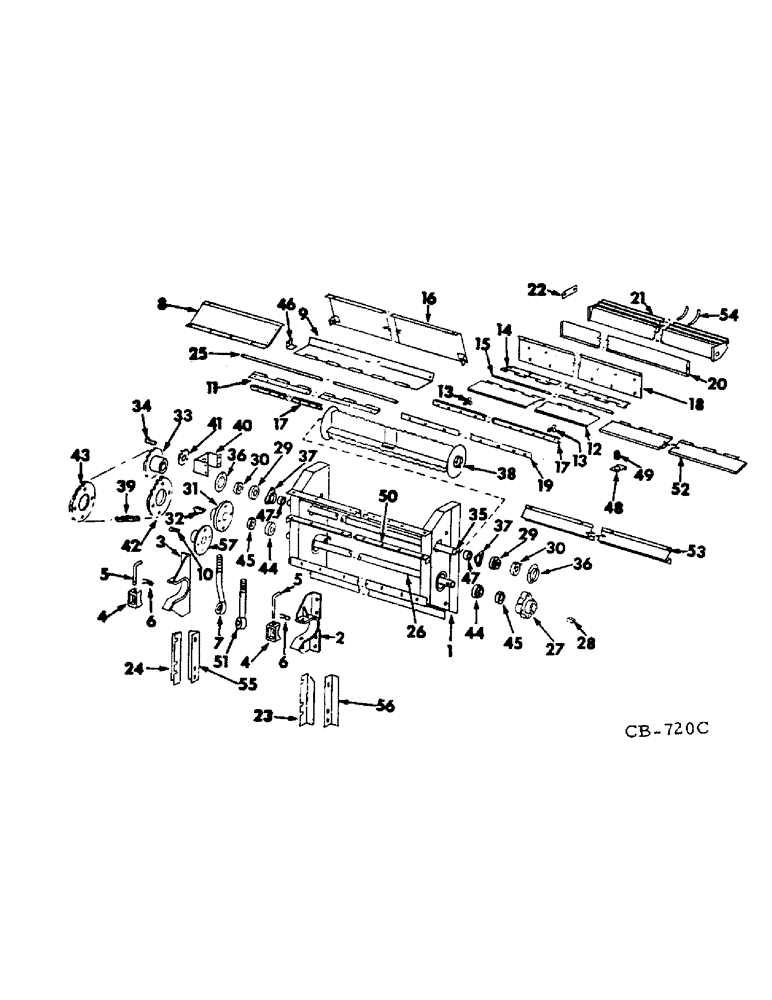

Запчасти Case IH 815 (R-10) - SEPARATOR, WINDROW SPECIAL Separation

1

161973C93

SUPPORT ASSY, feeder pivot

1шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2 x 1-1/4 C-Z sq-nk crg

2шт.

18765R1

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 2

5/16 x 1-1/2 C-Z hex-hd mach

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2 x 1-1/4 hex-hd mach

2шт.

455000

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

1/2 x 1-1/4 hex-hd type 8

8шт.

18822R1

BOLT,Hex, 5/8"-11 x 1 1/2", G2, Full Thd

5/8 x 1-1/2 C-Z hex-hd mach

6шт.

120376

NUT,5/16"-18, G5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 C-Z hex

6шт.

21330R1

NUT,1/2"-13, G8

1/2 C-Z hex type 8

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

366864C1

LOCK WASHER,1/2"

1/2"

8шт.

21496R1

WASHER

11/32 x 3/4 x 11 ga C-Z

1шт.

21375R1

WASHER

17/32 x 1-1/4 x 7 ga C-Z

5шт.

2

161975C91

BRACKET ASSY, feeder pivot LH

1шт.

427566

BOLT,Hex, 1/2"-13 x 1 1/2", G8, Full Thd

SCREW, 1/2 x 1-1/2 hex-hd type 8

4шт.

21330R1

NUT,1/2"-13, G8

1/2 C-Z hex-hd type 4

4шт.

366864C1

LOCK WASHER,1/2"

1/2"

4шт.

3

161976C91

BRACKET ASSY, feeder pivot RH

1шт.

21330R1

NUT,1/2"-13, G8

1/2 C-Z hex type 8

4шт.

427566

BOLT,Hex, 1/2"-13 x 1 1/2", G8, Full Thd

SCREW, 1/2 x 1-1/2 hex-hd type 8

3шт.

20534R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

SCREW, 1/2 x 1-3/4 hex-hd type 8

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

21375R1

WASHER

17/32 x 1-1/4 x 7 ga C-Z

4шт.

366864C1

LOCK WASHER,1/2"

1/2"

4шт.

4

161992C1

BLOCK, feeder pivot retainer

2шт.

5

169175C1

ROD, feeder pivot bracket

2шт.

6

520175R1

CLIP

PIN, 3/16 quick attachable

2шт.

7

159581C1

ROD, feeder pivot adjusting, serial no. 3601 and below

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

8

162429C3

DOOR, feed beater housing top LH

1шт.

9

161985C3

DOOR, feed beater housing top RH

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .34 x .69 x .06

2шт.

10

240

KEY,Gib, 3/8" Sq x 2 1/2"

3/8 x 2-1/2 sq taper

1шт.

11

161988C1

HINGE, feed beater housing top door

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

4шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 C-Z whiz lock

4шт.

12

159573C1

DOOR, stone retarder, serial no. 1972 and below

1шт.

12

170276C1

DOOR, stone retarder, serial no., Serial Range: 1973-3601

1шт.

13

166667C1

THUMB SCREW,1/4" - 20 x 0.62"

stone retarder door thumb, serial no. 1972 and below

4шт.

14

159575C1

HINGE, stone retarder door, serial no. 3601 and below

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

7шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

7шт.

15

583779R1

ROD, stone retarder door hinge, serial no. 3601 and below

1шт.

15

159577C1

ROD, stone retarder door hinge, serial no. 3602 and above

1шт.

16

161981C91

DEFLECTOR ASSY, feed beater

1шт.

19041R1

BOLT,7/16"-14 x 1 1/4", G2, Full Thd

7/16 x 1-1/4 no. 3 plow

2шт.

271501

SOCKET

NUT, 7/16 C-Z hex

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

17

158091C1

CHANNEL, feeder seal

2шт.

18627R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 1", Gr 2

BOLT, 1/4 x 1 C-Z sq-nk crg

7шт.

18655R1

BOLT,Hex, 1/4"-20 x 1", G2

1/4 x 1 C-Z hex-hd mach

7шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

14шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

14шт.

21870R1

WASHER

17/64 x 3/4 x 16 ga C-Z

7шт.

18

159282C1

SUPPORT, grain pan seal to feeder ext, serial no. 3601 and below

1шт.

18

172434C1

SUPPORT, grain pan seal to feeder ext, serial no. 3602 and above

1шт.

19280R1

SCREW,Sq Nk, 1/4" - 20 x 3/4"

BOLT, 1/4 x 3/4 C-Z sq-nk crg

7шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

7шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

7шт.

19

158082C1

SEAL

feeder housing upper, 2 used serial no. 3601 and below, 1 used serial no. 3602 and above

1шт.

20

159584C2

SUPPORT, grain pan seal to concave, serial no. 3601 and below

1шт.

20

172436C1

SUPPORT, grain pan seal to concave, serial no. 3602 and above

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

9шт.

120376

NUT,5/16"-18, G5

9шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

9шт.

21

634169R92

EXTENSION ASSY, concave, includes ref no. 54

1шт.

633661R1

CARRIAGE BOLT,#3, 5/8" - 11 x 3"

BOLT, 5/8 x 3 no. 3 plow type 4

2шт.

21434R1

NUT,5/8"-11, G8

5/8 C-Z hex type 4

2шт.

181696

1/2-20 x 1 C-Z hex-hd cap

6шт.

120384

WASHER,1/2"

LOCK, 1/2"

6шт.

366866C1

LOCK WASHER,5/8"

5/8"

2шт.

22

166419C1

BAR, operators platform brace

1шт.

23

166862C1

SHIELD, feeder pivot left dust, serial no. 3601 and below

1шт.

24

166863C1

SHIELD, feeder pivot right dust, serial no. 3601 and below

1шт.

25

569837R1

ROD, feed beater housing top door hinge

1шт.

26

161986C2

SHAFT, feed beater jack

1шт.

27

169202C1

HUB, feed beater jackshaft driven sprocket

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 hex-hd mach

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

2шт.

128228

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW, 3/8 x 3/4 sq hd cup PT

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

28

22246R1

WOODRUFF KEY,#129, 3/8" x 2 1/8", HT

KEY, 3/8 x 2-1/8 woodruff, hard

1шт.

29

455965R91

BALL BEARING,1.0005" ID x 52 mm OD x 15 mm

ASSY, feed beater shaft

2шт.

30

455102R11

COLLAR

W/SET SCREW LKG

2шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4 x 1/4 hex-soc-hd cup PT set

2шт.

31

159478C1

HUB, feed beater drive

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

663921R1

PIN

5/16 x 2-1/2 C-Z std hd

1шт.

32

22246R1

WOODRUFF KEY,#129, 3/8" x 2 1/8", HT

KEY, 3/8 x 2-1/8 woodruff, hard

1шт.

33

167262C92

SPROCKET ASSY, feed beater driven 20T

1шт.

34

Q3932

KEY,Gib, 5/16" Sq x 2"

5/16 x 2 gib

1шт.

35

161987C2

SHAFT, feed beater

1шт.

591715R1

WASHER

1-1/32 x 1-1/2 x 16 ga

2шт.

36

563401R1

FLANGED BEARING

FLANGE, feed beater bearing

2шт.

37

571424R1

FLANGE

feed beater bearing

2шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

6шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

38

162100C92

BEATER ASSY, feeder

1шт.

39

CHAIN ASSY, feed beater drive, use 67 links from a 10 ft roll marked 1786D, one connecting link 1786D and one offset link 1318D

1шт.

40

161991C2

BRACKET, feed beater drive chain

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

41

154113C91

DRIVE SPROCKET

SPROCKET ASSY, feed beater drive chain tightener 13T

1шт.

18449R1

BOLT,Short NK, 5/8"-11 x 3", G2

5/8 x 3 C-Z sq-nk crg

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 C-Z hex

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

Q1594

WASHER,41/64" x 1 1/2" x .105", Sq Hole

21/32 sq x 1-1/4 x 12 ga

1шт.

21782R1

WASHER

21/32 x 1-1/2 x 16 ga C-Z

3шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga C-Z

1шт.

42

162228C1

SPROCKET, feed beater drive 32T

1шт.

18779R1

BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2

3/8 x 1-1/2 hex-hd mach

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

43

162228C1

SPROCKET, feeder drive 32T

1шт.

44

936998R91

BEARING

ASSY, feed beater jksft

2шт.

45

455112R11

COLLAR

W/SET SCREW, lkg

2шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8 x 3/8 hex-soc-hd cup PT set

2шт.

46

Not used in this application

1шт.

47

M74461

SPACER,26.6mm ID x 33.4mm OD x 19mm L

Feed beater shaft 1" Pipe x 3/4"

2шт.

48

634187R1

CLIP, door, serial no. 1973 and above

4шт.

49

7422T

SPRING

door clip, serial no. 1973 and above

4шт.

18676R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 1/4", Gr 2

BOLT, 5/16 x 2-1/4 C-Z sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

50

170301C1

ANGLE ASSY, feeder seal, serial no. 1984 thru 3601

1шт.

51

466324R1

EYE

BOLT, feeder pivot adj eye, serial no. 3602 and above

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

52

172727C1

DOOR ASSY, stone retarder, serial no. 3602 and above

1шт.

53

172429C1

SEAL, feeder housing lower, serial no. 3602 and above

1шт.

54

634174R1

ROD, concave extension

46шт.

55

172439C1

SEAL, feeder pivot right dust, serial no. 3602 and above

1шт.

56

172438C1

SEAL, feeder pivot left dust, serial no. 3602 and above

1шт.

57

172565C1

HUB, feeder driven sprocket

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1-1/2 hex-hd mach

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.
