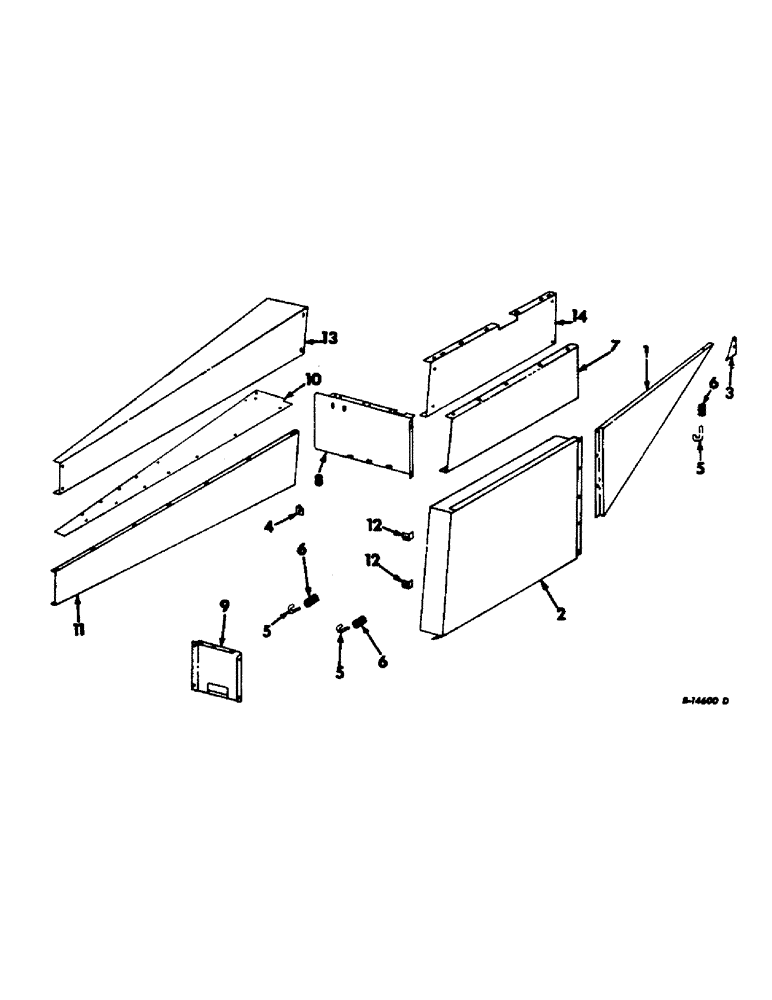

Запчасти Case IH 815 (R-08) - SEPARATOR, SEPARATOR SHIELDS, RIGHT SIDE Separation

1

164548C91

DOOR ASSY, separator right side front

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

4шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z whiz lock

4шт.

2

161757C91

DOOR ASSY, separator right side rear

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

5шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z whiz lock

5шт.

3

161745C1

SUPPORT, separator right side front door

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

2шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

2шт.

4

167414C1

CLIP, separator RH shield support

2шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

4шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z whiz lock

4шт.

5

173242C1

HANDLE

PIN, separator side shield locking

3шт.

121223

COTTER PIN,1/16" x 3/4"

PIN, SPLIT (COTTER), 1/16" x 3/4"

3шт.

21784R1

WASHER

17/64 x 1/2 x 16 ga C-Z

3шт.

6

606245R1

SPRING

side shield locking

3шт.

7

161767C11

SUPPORT ASSY, sep ride side engine trim, D-407 diesel and all V-8 engines

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

7шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z whiz lock

7шт.

8

161770C1

SUPPORT, separator hood right side

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

5шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z whiz lock

5шт.

9

161769C4

SUPPORT

separator hood right side

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

10

161764C2

SUPPORT, sep hood right cover sheet serial no. 3451 and below

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

12шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

12шт.

11

161775C1

SUPPORT, separator hood right stiffener serial no. 3451 and below

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

3шт.

12

167283C1

ANGLE, RH rear door stop

2шт.

18763R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

5/16 x 1/2 C-Z hex-hd mach

2шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

1шт.

120376

NUT,5/16"-18, G5

2шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt truss-hd

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

13

172497C1

SUPPORT, sep hood right stiffener serial no. 3452 and above

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

6шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

6шт.

14

174401C1

SUPPORT ASSY, engine trim right side, D-414 diesel

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

7шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z whiz lock

7шт.
