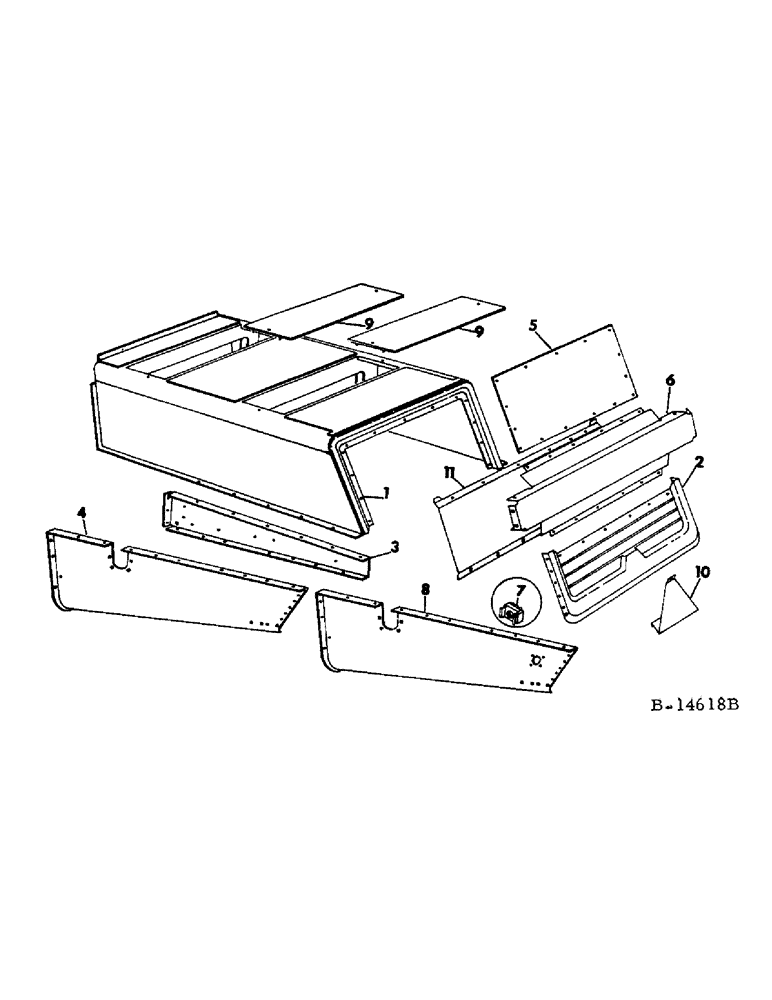

Запчасти Case IH 815 (R-05) - SEPARATOR, SEPARATOR HOOD Separation

1

161672C91

HOOD ASSY, separator

1шт.

459063R1

SPRING NUT

5/16 grip

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

27шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

21шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

6шт.

2

160475C21

HOOD

ASSY, separator lower rear

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

17шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

12шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

5шт.

3

160473C1

SUPPORT, separator hood left

1шт.

3

160474C1

SUPPORT, separator hood right

1шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 C-Z sq-nk crg

6шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

6шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

6шт.

550826R1

NUT,5/16"-18, Weld

5/16 weld

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

14шт.

120384

WASHER,1/2"

LOCK, 1/2"

6шт.

4

160976C91

SECTION ASSY, sep rear hood lower LH

1шт.

4

160977C91

SECTION ASSY, sep rear hood lower RH, not straw chopper, serial no. 3783 and below

1шт.

4

172090C2

SECTION ASSY, sep rear hood lower LH

1шт.

4

172091C2

SECTION ASSY, sep rear hood lower RH, not straw chopper, serial no. 3784 and above

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

18шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

18шт.

5

160997C1

SHEET, separator rear hood rear, not straw chopper, serial no. 3783 and below, all combines serial no. 3784 and above

1шт.

5

161623C1

SHEET, separator rear hood rear, for straw chopper, serial no. 3783 and below

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

14шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

14шт.

6

172086C1

SUPPORT, separator rear hood center

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

10шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

10шт.

7

166705C1

NUT

5/16 Tinnerman speed grip

3шт.

7

168132R1

NUT

Tinnerman speed grip

1шт.

8

161617C91

SECTION ASSY, separator rear hood lower LH, for straw chopper serial no. 3783 and below

1шт.

8

169004C1

SECTION ASSY, separator rear hood lower RH, for straw chopper serial no. 3783 and below

1шт.

8

179895C1

SECTION ASSY, sep hood lower LH, straw chopper serial no. 3784 and above

1шт.

8

179896C1

SECTION ASSY, sep hood lower RH, straw chopper serial no. 3784 and above

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

8шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 C-Z flange lock

16шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 C-Z whiz lock

8шт.

9

170437C1

DOOR, separator hood top

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

4шт.

10

170508C11

SUPPORT ASSY, serial no. 3783 and below

1шт.

275-5478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

SCREW, 1/4 x 1/2 C-Z hex-hd tap

2шт.

11

174883C1

SHEET ASSY, sep hood rear filler, not straw chopper

1шт.
