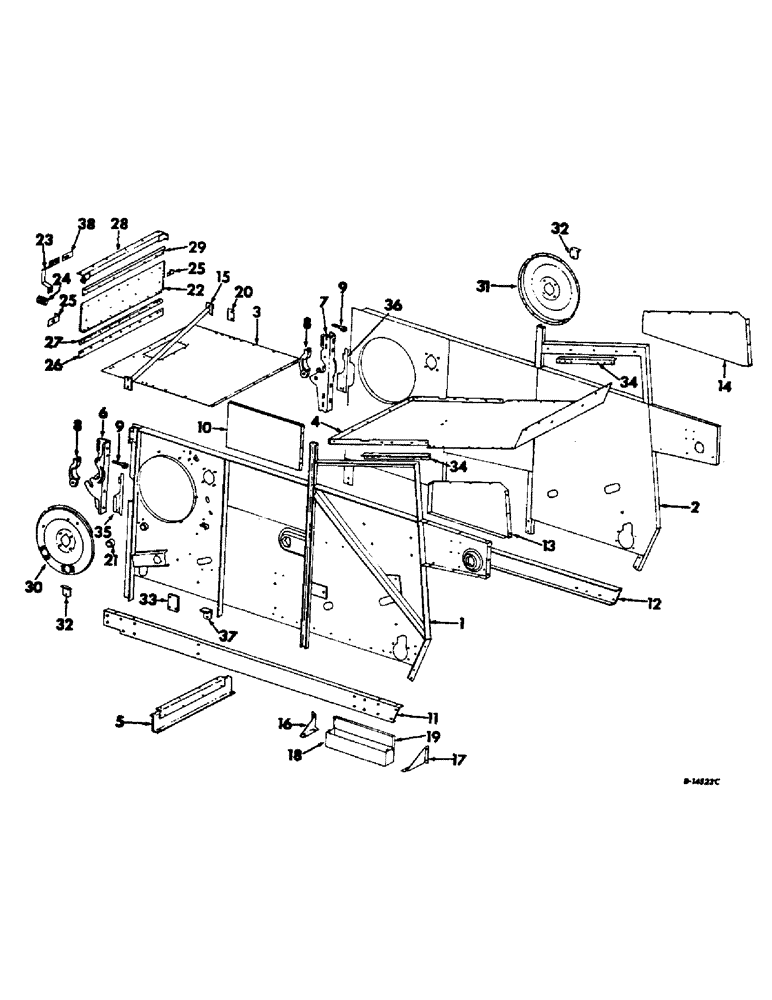

Запчасти Case IH 815 (R-02) - SEPARATOR Separation

1

160058C91

SIDE ASSY, separator left, includes ref no. 21, serial no. 4688 and below

1шт.

1

175201C91

SIDE ASSY, separator left, includes ref no. 21, serial no. 4689 and above

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

15шт.

60365H

BOLT,Hex, 3/8" - 16 x 1", Gr 8

3/8 x 1 C-Z hex-hd type 8

1шт.

120376

NUT,5/16"-18, G5

15шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 C-Z hex

6шт.

21333R1

NUT,3/8"-16, G8

3/8 C-Z hex type 4

5шт.

21330R1

NUT,1/2"-13, G8

1/2 C-Z hex type 4

6шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

13шт.

271548R1

SCREW, 5/8 x 1-3/4 C-Z hex-hd

2шт.

60365H

BOLT,Hex, 3/8" - 16 x 1", Gr 8

SCREW, 3/8 x 1 C-Z hex-hd type 8

5шт.

455000

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

SCREW, 1/2 x 1-1/2 C-Z hex-hd

6шт.

429-1112

NUT,3/4"-16, G5

C-Z hex type 4

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

7шт.

138549

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

7шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

9шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

7шт.

366862C1

LOCK WASHER,3/8"

3/8"

5шт.

366864C1

LOCK WASHER,1/2"

1/2"

6шт.

3

160275C1

TOP, separator front

1шт.

18626R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 1/2", Gr 2

BOLT, 1/4 x 1/2 znd sq-nk crg

14шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

14шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

14шт.

4

160277C1

TOP, separator rear

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

8шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

20шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt truss-hd

12шт.

5

171702C1

SUPPORT ASSY, separator frame cross

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2 x 1-1/4 C-Z hex-hd mach

2шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2 x 1-1/4 C-Z sq-nk crg

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

6

160001C2

CLAMP, feeder pivot left rear, not windrow special

1шт.

18697R1

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 3/4", Gr 2

BOLT, 7/16 x 1-3/4 C-Z sq-nk crg

2шт.

18719R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 2

BOLT, 5/8 x 1-3/4 C-Z sq-nk crg

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

2шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 C-Z hex

2шт.

21330R1

NUT,1/2"-13, G8

1/2 C-Z hex type 4

4шт.

20534R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

SCREW, 1/2 x 1-3/4 C-Z hex-hd cap

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

366864C1

LOCK WASHER,1/2"

1/2"

4шт.

21029R1

WASHER

15/32 x 1 x 11 ga C-Z

2шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

4шт.

21375R1

WASHER

17/32 x 1-1/4 x 7 ga C-Z

2шт.

7

160002C2

CLAMP, feeder pivot right rear, not windrow special

1шт.

18697R1

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 3/4", Gr 2

BOLT, 7/16 x 1-3/4 C-Z sq-nk crg

2шт.

18719R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 2

BOLT, 5/8 x 1-3/4 C-Z sq-nk crg

2шт.

271501

SOCKET

NUT, 7/16 C-Z hex

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 C-Z hex

4шт.

21330R1

NUT,1/2"-13, G8

1/2 C-Z hex type 4

4шт.

427566

BOLT,Hex, 1/2"-13 x 1 1/2", G8, Full Thd

SCREW, 1/2 x 1-1/2 C-Z hex-hd cap

4шт.

301055R1

SCREW, 5/8 x 3-1/2 C-Z hex-hd cap

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

366864C1

LOCK WASHER,1/2"

1/2"

4шт.

21029R1

WASHER

15/32 x 1 x 11 ga C-Z

2шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

4шт.

21375R1

WASHER

17/32 x 1-1/4 x 7 ga C-Z

1шт.

8

160000C1

CLAMP, feeder pivot front, not windrow special, serial no. 4263 and below

2шт.

8

175246C1

CLAMP, feeder pivot front, not windrow special, serial no. 4264 and above

2шт.

137218

COTTER PIN,5/32" x 1 1/4"

PIN, SPLIT (COTTER), 5/32" x 1 1/4"

2шт.

21401

GASKET

PIN, 3/4 x 2-3/4 C-Z rod end

2шт.

9

165648C2

BOLT,3/4" - 10 x 4 1/2"

EYE BOLT, feeder pivot front clamp, not windrow special, serial no. 4263 and below

2шт.

137218

COTTER PIN,5/32" x 1 1/4"

PIN, SPLIT (COTTER), 5/32" x 1 1/4"

2шт.

21401R1

HEADED PIN,3/4" x 2 3/4"

PIN, 3/4 x 2-3/4 C-Z rod end

2шт.

25548R1

WASHER

25/32 x 1-1/2 x 1/4 PHC

2шт.

9

175247C1

EYE BOLT, feeder pivot front clamp, not windrow special, serial no. 4264 and above

2шт.

21929R1

NUT,1"-8, G8

1 C-Z hex

2шт.

22095R1

PIN

3/4 x 3 C-Z rod end

2шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

2шт.

523162R1

WASHER

1-1/32 x 1-3/4 x 1/4

2шт.

10

160401C2

DOOR, straw rack inspection

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

5шт.

935736R1

NUT, WING

NUT, 5/16 C-Z wing

5шт.

11

164757C1

SUPPORT, separator frame left

1шт.

12

164758C1

SUPPORT, separator frame right

1шт.

13

160273C1

SIDE, separator left upper, V-8 gasoline and LP gas engines

1шт.

13

168971C11

SIDE ASSY, separator left upper, diesel engine

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

5шт.

19573R1

BOLT,Hex, 3/8"-16 x 7/8", G2

3/8 x 1 C-Z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

14шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt truss-hd

9шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

14

160274C1

SIDE, separator right upper, V-8 gasoline and LP gas engines

1шт.

14

168972C11

SIDE ASSY, separator right upper, diesel engine

1шт.

18626R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 1/2", Gr 2

BOLT, 1/4 x 1/2 znd sq-nk crg

5шт.

19573R1

BOLT,Hex, 3/8"-16 x 7/8", G2

3/8 x 1 C-Z hex-hd mach

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

5шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

9шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt truss-hd

9шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

5шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

15

164741C91

PIPE ASSY, separator front cross tie

2шт.

21330R1

NUT,1/2"-13, G8

1/2 C-Z hex

4шт.

21434R1

NUT,5/8"-11, G8

5/8 C-Z hex

4шт.

427566

BOLT,Hex, 1/2"-13 x 1 1/2", G8, Full Thd

SCREW, 1/2 x 1-1/2 C-Z hex-hd cap type 4

4шт.

432695R1

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8

SCREW, 5/8 x 1-3/4 hex-hd cap

2шт.

469805R1

BOLT,Hex, 5/8" - 11 x 2", Gr 8

SCREW, 5/8 x 2 hex-hd cap type 4

2шт.

366864C1

LOCK WASHER,1/2"

1/2"

4шт.

366866C1

LOCK WASHER,5/8"

5/8"

4шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

4шт.

16

161861C1

SUPPORT, tool box front

1шт.

17

161862C2

SUPPORT, tool box rear

1шт.

607895R1

WASHER

17/32 x 1 x 11 ga C-Z

1шт.

18

629767R91

BOX ASSY, tool, includes ref no. 19

1шт.

18626R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 1/2", Gr 2

BOLT, 1/4 x 1/2 C-Z sq-nk crg

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

19

629769R1

TOP, tool box

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

B21012

PIN, 1/4 x 1/2 std-hd dld

2шт.

20

170024C1

SHIM, separator front cross brace

1шт.

21

454172R1

BUSHING

concave leveling arm

1шт.

22

160642C1

DOOR, cylinder front section, not windrow special, serial no. 1972 and below

1шт.

22

170233C1

DOOR, cylinder front section, not windrow special, serial no. 1973 and above

1шт.

23

172241C1

HANDLE ASSY, cyl door upper latch, not windrow special

2шт.

18768R1

BOLT,Hex, 5/16"-18 x 2 1/4", G2

5/16 x 2-1/4 C-Z hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

2шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

2шт.

24

42979D

SPRING, cylinder door upper latch, not windrow special

2шт.

25

157515C1

LATCH, cylinder door lower, not windrow special

2шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

2шт.

120376

NUT,5/16"-18, G5

2шт.

NLS

NO LONGER SERVICED

5/16 C-Z hex-jam

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

106969R1

WASHER

3/4 x 1-1/4 x 16 ga C-Z

2шт.

26

166911C1

DOOR SEAL

SEAL, cyl front door, not windrow special

1шт.

27

160644C1

ANGLE, cylinder door seal backing, not windrow special

1шт.

451195

SCREW,Slotted Pan Hd, 1/4"-20 x 1"

1/4 x 1 pan-hd

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

9шт.

28

160632C91

SUPPORT ASSY, cylinder door, not windrow special, serial no. 1972 and below

1шт.

28

170237C1

SUPPORT ASSY, cylinder door, not windrow special, serial no. 1973 and above

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

6шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

6шт.

29

160640C1

SUPPORT, cylinder door upper, not windrow special, serial no. 1972 and below

1шт.

29

170235C1

SUPPORT, cylinder door upper, not windrow special, serial no. 1973 and above

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

6шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

6шт.

30

157466C91

COVER ASSY, cyl left end, chain feeder drive, serial no. 3783 and below

1шт.

30

165441C91

COVER ASSY, cylinder left end, belt feeder drive, serial no. 3783 and below

1шт.

30

172450C1

COVER ASSY, cyl left end, chain drive feeder, serial no. 3784 and above

1шт.

30

172454C1

COVER ASSY, cyl left end, belt drive feeder, serial no. 3784 and above

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

2шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 C-Z hex

4шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

5/8 C-Z hex-jam

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

138557

WASHER,Int Tooth, 5/8"

5/8 C-Z int-tooth lock

1шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

2шт.

31

157467C91

COVER ASSY, cyl right end, serial no. 3783 and below

1шт.

31

172451C1

COVER ASSY, cyl right end, serial no. 3784 and above

1шт.

20816R1

BOLT, 3/8 x 1/2 znd sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 C-Z hex

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

21471R1

WASHER

21/32 x 1 x 11 ga C-Z

1шт.

32

633518R1

DOOR

cyl and concave inspection

4шт.

33

166610C1

PLATE, stone retarder control cover, for use w/combines not equipped w/stone retarder

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

3шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

34

166964C1

ANGLE, shaker shaft support

2шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 znd hex-hd mach

4шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 znd hex-hd mach

8шт.

120376

NUT,5/16"-18, G5

12шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

35

167407C1

STRIP, feeder side seal LH, not windrow special

1шт.

36

167408C1

STRIP, feeder side seal RH, not windrow special

1шт.

37

574525R1

DOOR, cylinder beater finger grate adjusting inspection

1шт.

38

172242C1

BAR, cylinder door handle, not windrow special

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

2шт.

160256C1

BOLT, 3/8 x 3/4 crg bolt

3шт.
