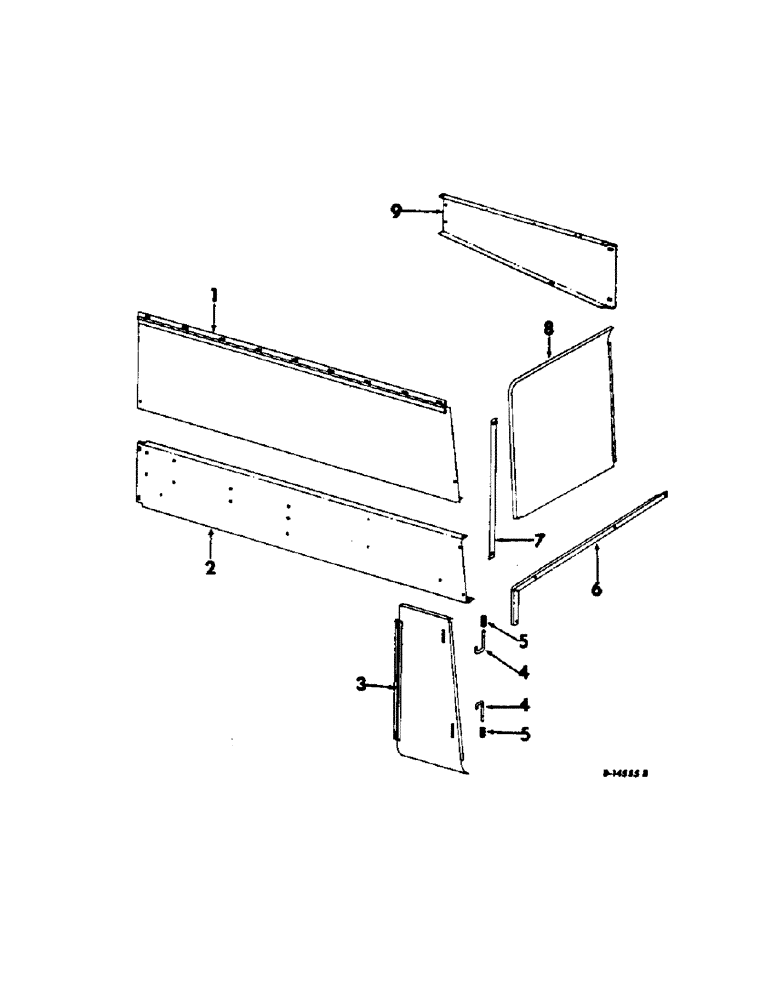

Запчасти Case IH 815 (T-19) - GRAIN TANK AND BAGGER, GRAIN TANK SHIELDS Grain Tank

1

162153C91

SHIELD ASSY, grain tank auger drive chain

1шт.

445449

NUT

no. 14 speed

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

9шт.

144824

SCREW, no. 14-10 x 3/4 C-Z slt pan-hd

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z sltd truss-hd

9шт.

2

161795C1

SHIELD, separator side front trim left

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

2шт.

120376

NUT,5/16"-18, G5

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt truss-hd

4шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt truss-hd

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

3

163904C91

DOOR ASSY, separator left side shield

1шт.

4

173242C1

HANDLE

PIN, left side shield door lock

2шт.

121223

COTTER PIN,1/16" x 3/4"

PIN, SPLIT (COTTER), 1/16" x 3/4"

2шт.

21784R1

WASHER

PIN, 17/64 x 1/2 x 11 ga C-Z

2шт.

5

606245R1

SPRING

separator left side shield door lock pin

2шт.

6

161794C1

SUPPORT, separator side front trim shield

1шт.

18763R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

5/16 x 1/2 C-Z hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

7

166370C1

STRAP, separator side front trim shield support

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

8

164812C91

SHIELD ASSY, grain tank auger drive

1шт.

18626R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 1/2", Gr 2

BOLT, 1/4 x 1/2 C-Z sq-nk crg

5шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

15шт.

445449

NUT

no. 14 speed

2шт.

144824

SCREW, no. 14-10 x 3/4 C-Z slt pan-hd

2шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z sltd truss-hd

10шт.

9

164550C11

SUPPORT ASSY, grain tank trim RH

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

4шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z sltd truss-hd

4шт.
