Запчасти Case IH 815 (T-04) - GRAIN TANK AND BAGGER, GRAIN TANK EXT., BEAN SPECIAL Grain Tank

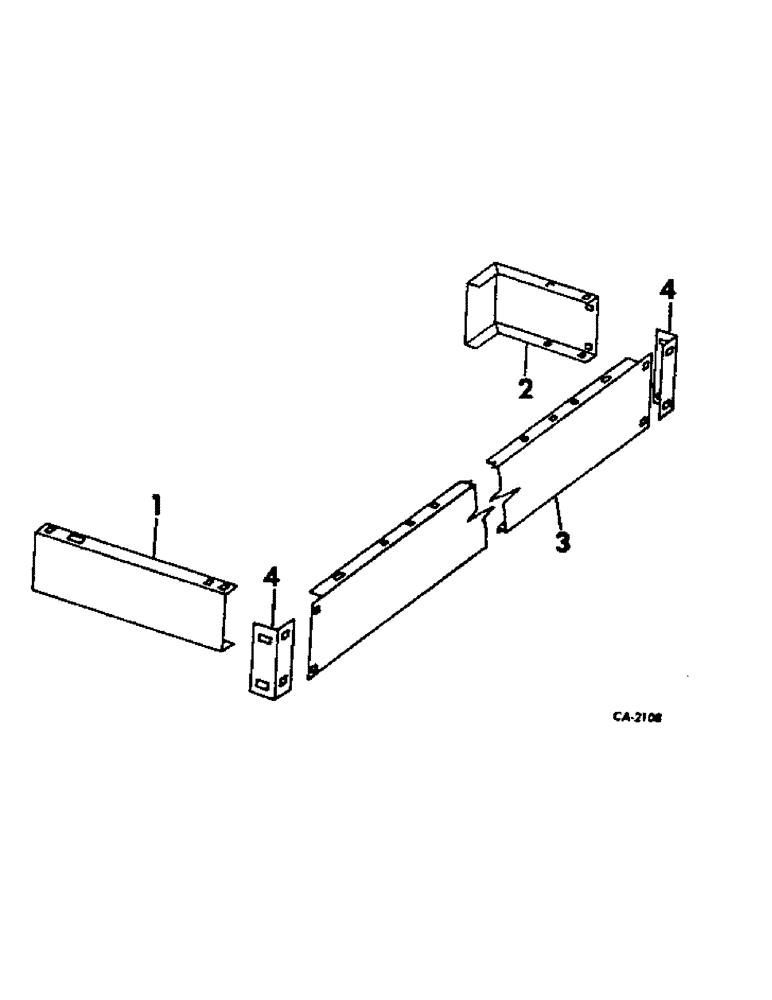

Схема запчастей Case IH 815 - (T-04) - GRAIN TANK AND BAGGER, GRAIN TANK EXT., BEAN SPECIAL Grain Tank
4
2
4
3
1

Артикул

Название

Примечание

Количество

1

174174C1

SIDE, grain tank extension left

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

8шт.

120376

NUT,5/16"-18, G5

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

2

174175C1

SIDE, grain tank extension right

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

6шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

3

174176C1

SIDE, grain tank extension rear

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

15шт.

120376

NUT,5/16"-18, G5

15шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

15шт.

4

174178C1

ANGLE, grain tank extension side tie

2шт.

Выбрано товаров: 13
